Problem 2 on Centroid on Cut-Out Section - Centroid and Centre of Gravity - Engineering Mechanics

TL;DR

The video explains how to calculate the centroid of a shaded lamina consisting of a semicircle and a rectangle.

Transcript

hello friends let us take the problem on cut out section i'll read the question what is given here locate the position of centroid whenever they are saying locate the position of centroid it means we have to calculate x bar and y bar for the shaded lamina as shown in figure lamina indicates a plane figure so here the diagram is given of a shaded la... Read More

Key Insights

• 🇧🇱 Calculating the centroid involves finding the x-bar and y-bar coordinates of the shaded lamina.
• ❓ The semicircular portion and rectangular portion of the lamina are treated as separate areas in the calculation process.
• 🇧🇱 The x-bar coordinate is determined by taking half the diameter of the semicircle, while the y-bar coordinate is obtained by subtracting the y-coordinate of the rectangle from the y-coordinate of the semicircle.
• ❣️ Symmetry about the y-axis simplifies the calculation process by providing the x-bar coordinate directly.
• 💁 The centroid provides valuable information about mass distribution and is used in various engineering and physics applications.
• 👻 The calculation of the centroid allows for understanding the stability and balance of structures.
• 🤨 The area of the semicircular portion is calculated using the formula pi * r^2 / 2, while the area of the rectangle is obtained by multiplying its length and width.

Questions & Answers

Q: How is the centroid of the shaded lamina calculated?

The centroid of the shaded lamina is calculated by determining the x-bar and y-bar coordinates. The x-bar coordinate can be obtained directly by taking half of the diameter of the semicircular portion, while the y-bar coordinate is found by subtracting the y-coordinate of the rectangle from the y-coordinate of the semicircle.

Q: Why is it important to determine the centroid of the shaded lamina?

Determining the centroid of the shaded lamina is important as it provides insights into the distribution of mass within the figure. It is a crucial parameter used in various engineering and physics applications, such as determining the stability and balance of structures.

Q: How is the area of the shaded lamina calculated?

The area of the shaded lamina is divided into two parts: the area of the semicircular portion and the area of the rectangular portion. The area of the semicircular portion can be calculated using the formula pi * r^2 / 2, while the area of the rectangle is calculated by multiplying its length and width.

Q: What is the significance of the lamina being symmetric about the y-axis?

The symmetry of the lamina about the y-axis means that its centroid will lie on the y-axis. This simplifies the calculation process as the x-bar coordinate can be directly determined without further calculations.

Summary & Key Takeaways

• The problem involves finding the centroid of a shaded lamina, which is achieved by calculating the x-bar and y-bar coordinates.

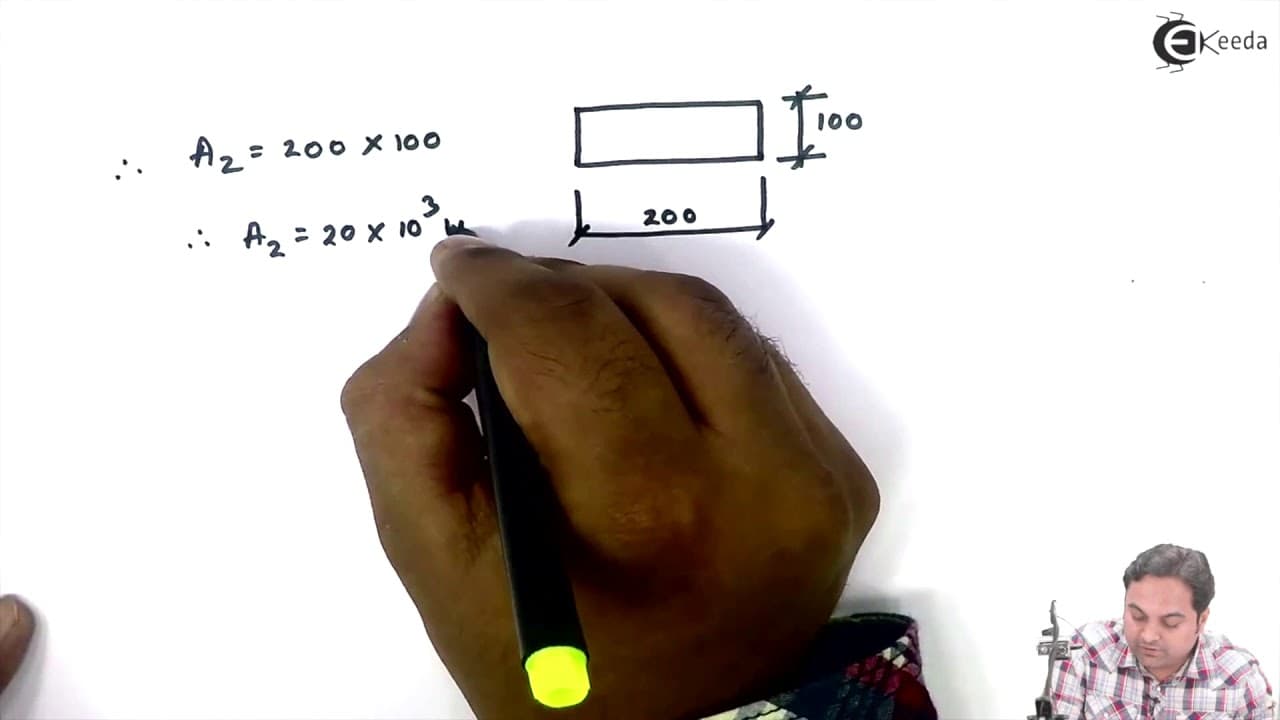

• The shaded lamina consists of a semicircular portion with a radius of 300 mm and a rectangular portion with dimensions 200 mm by 100 mm.

• The x-bar coordinate can be directly determined from the diameter of the semicircle, while the y-bar coordinate is found by subtracting the y-coordinate of the rectangle from the y-coordinate of the semicircle.
