U Tube Manometers - Pressure, Density & Height of Oil & Water - Fluid Mechanics

TL;DR

The content explains how to determine the height of a fluid column in a U-shaped tube using the concept of equilibrium.

Transcript

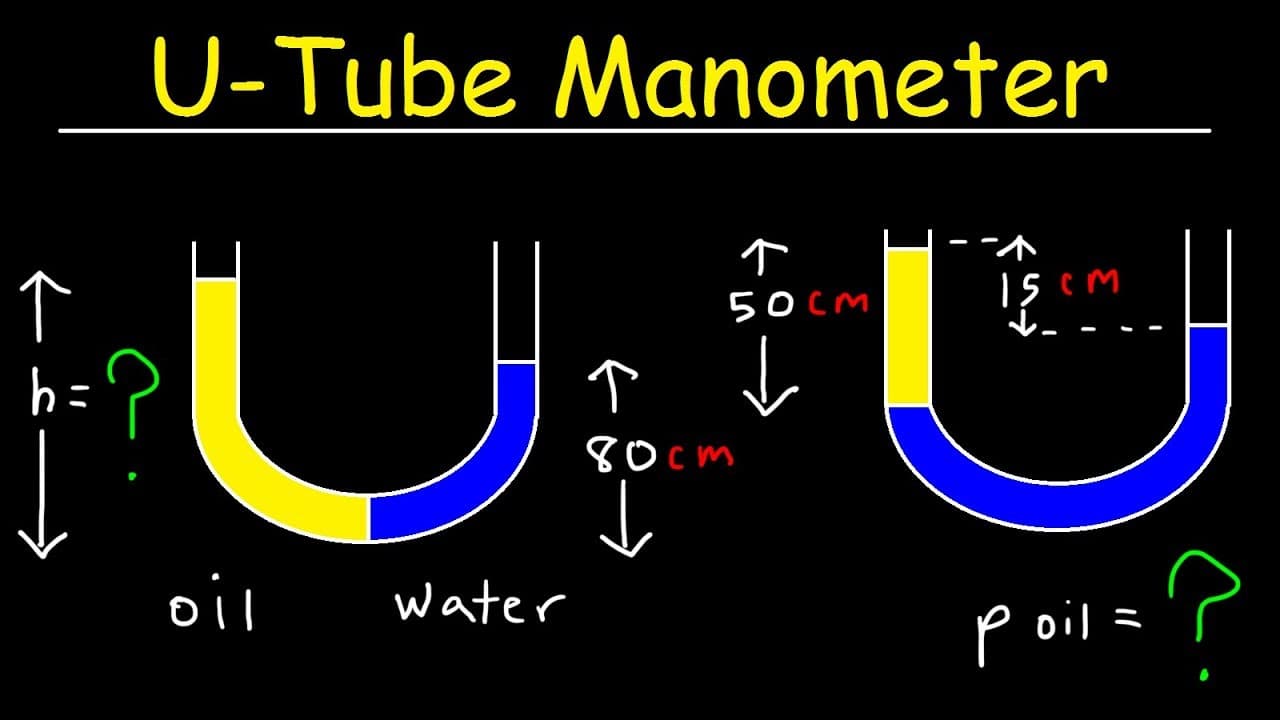

in this problem we have a u-shaped tube and we're given the height of the water on the right side it's 80 centimeters and we have the density of the water as well what is the height of the oil column if the density of the oil is 750 kilograms per cubic meter so as i've mentioned before on other problems the downward pressure on the left side has to... Read More

Key Insights

• 🙃 Equilibrium in a U-shaped tube requires the pressures on both sides to be equal.
• ❓ The pressure of a fluid is determined by its density, gravitational acceleration, and height.
• 🛢️ The density of the oil can be calculated by equating the pressures of the oil and water in the U-shaped tube.

Questions & Answers

Q: How does the pressure in a U-shaped tube remain in equilibrium?

The pressure on the left side is a combination of atmospheric pressure and the weight of the oil, whereas the pressure on the right side is atmospheric pressure and the pressure of the water. Equilibrium is achieved when these pressures are equal.

Q: How is the height of the oil column determined?

The pressure due to the weight of the oil is equal to the pressure due to the weight of the water. By using the equation for pressure, which is density times gravitational acceleration times height, the height of the oil column can be calculated.

Q: What is the density of the oil in a U-shaped tube with water on the right column?

To find the density of the oil, the equation for pressure equating the oil and water heights needs to be used. By rearranging the equation and plugging in the given values, the density of the oil can be determined.

Q: How is the height difference between the oil and water surfaces calculated?

By establishing a reference level and applying the pressure equilibrium equation, the height of the water above the reference level and the height of the oil can be used to calculate the height difference between the two surfaces.

Summary & Key Takeaways

• The pressure on the left side of the U-shaped tube is due to atmospheric pressure and the weight of the oil, while the right side has atmospheric pressure and the pressure of the water.

• The downward pressure due to the weight of the oil is equal to the downward pressure due to the weight of the water.

• By using the equation for pressure due to the weight of a fluid, the height of the oil column can be calculated.
