What Is Uniform Potential Flow Along the Y-Direction? Type of Potential Flow and Uniform Flow (Uniform Part 2), Fluid Kinematics, Fluid Mechanics 1

TL;DR

Uniform potential flow along the y-direction is a constant flow parallel to the y-axis, with no velocity component along the x-axis. For speed U, the streamline function is ψ = -Ux and the velocity potential is φ = Uy. Their constant-value lines are mutually perpendicular and form a flow net. Read on to see how these equations are derived and plotted.

Transcript

as we have seen in kinematics of fluid flow different types of fluid as well as we have seen mathematical model to study kinematics of fluid flow along with that we have seen all the types of fluids so combining all the knowledge we have studied we'll see few practical examples and we'll try to study few practical examples that is uniform flow alon... Read More

Key Insights

• 🌸 Uniform potential flow is a type of fluid flow characterized by constant velocity along the y-axis and zero velocity along the x-axis.
• 💐 The relationship between the velocity potential function (ϕ) and the streamline function (ψ) in uniform potential flow allows for the determination of flow characteristics.
• 💐 The uniform potential flow exhibits parallel streamline and potential lines, which form a flow net.
• 🗺️ Streamlines in uniform potential flow travel in the downward direction, while the potential lines travel towards the right.
• 📤 The uniform potential flow is represented by the equation ψ = -u * x and ϕ = u * y, where u is the velocity component along the y-axis.
• 🥋 The uniform potential flow is perpendicular to constant streamlines and uniform potential lines.
• 💐 The analysis of uniform potential flow provides insights into the behavior and characteristics of fluid flow in fluid mechanics.

Questions & Answers

Q: What is uniform potential flow along the y-direction?

It is a uniform potential flow parallel to the y-axis and traveling in the positive y-direction with speed U. Its x-direction velocity component is zero, while its y-direction component is nonzero.

Q: Why does the x-direction velocity component equal zero?

The flow travels parallel to the y-axis rather than along the x-axis. Therefore, the small u component along the positive x-axis tends to zero.

Q: How is the speed U related to the velocity components?

The speed is written as U = √(u² + v²). Because u tends to zero for this flow, U is determined by the nonzero y-direction component v.

Q: What is the streamline function for uniform potential flow along the y-direction?

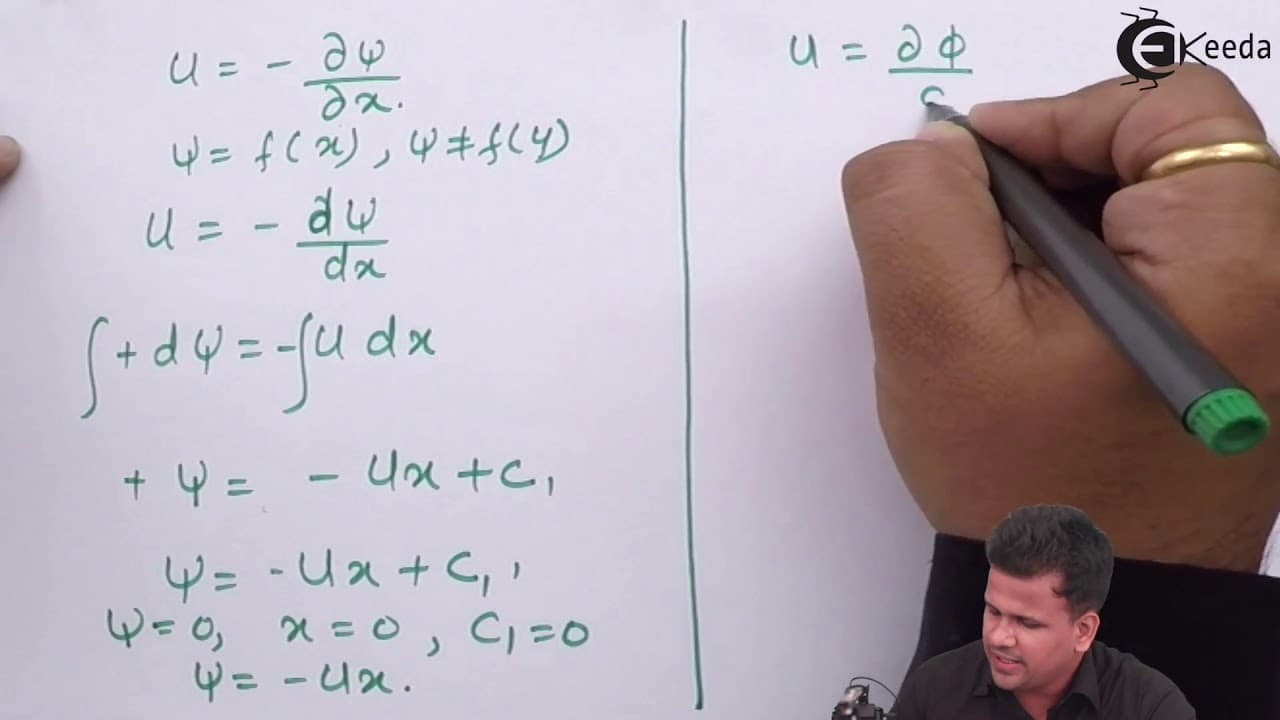

The streamline function is ψ = -Ux. It follows by integrating U = -dψ/dx and setting the integration constant to zero when ψ and x are zero.

Q: What is the velocity potential function for this flow?

The velocity potential function is φ = Uy. It follows by integrating U = dφ/dy and setting the integration constant to zero when φ and y are zero.

Q: How are the constant streamlines oriented?

The constant streamlines are parallel to the y-axis. The transcript labels successive lines as ψ1, ψ2, ψ3, and ψ4 while plotting them against the x and y axes.

Q: How are the uniform potential lines oriented?

The uniform potential lines are parallel to the x-axis. They are perpendicular to the constant streamlines.

Q: What is the flow net in uniform potential flow?

The flow net is the complete pattern formed by the constant streamlines and uniform potential lines. In the plotted description, the streamline-related lines travel downward because of the negative sign, while the positive potential lines extend toward the right.

Summary & Key Takeaways

• Definition: Uniform potential flow along the y-direction is parallel to the y-axis and travels in the positive y-direction with speed U.

• Definition: The x-direction velocity component u tends to zero, while the y-direction component v is nonzero.

• Definition: The flow speed is expressed as U = √(u² + v²), which reduces to the magnitude of v when u is zero.

• Definition: The streamline function is ψ = -Ux after integration and application of the stated zero condition.

• Definition: The velocity potential function is φ = Uy after integration and application of the stated zero condition.

• Compare: Constant streamlines are parallel to the y-axis, while uniform potential lines are parallel to the x-axis.

• Definition: Constant streamlines and uniform potential lines are perpendicular to each other.

• Definition: The perpendicular streamline and potential-line pattern forms a flow net.

• Compare: Streamline-related lines move downward because ψ contains -U, while positive potential lines extend toward the right.
