Problem 1 Parametric Amplifiers - Avalanche Transit Time Devices - Microwave Engineering

TL;DR

Learn how to compute the power gain, noise figure, and bandwidth for an upconverter parametric amplifier.

Transcript

click the bell icon to get latest videos from equator hello Prince I welcome you all to this particular video here we are with chapter high of our microwave engineering the Avalanche transit time devices we have discussed so far so in this family of Avalanche transit time devices we have gone through the understanding of the Reed diode impaired dio... Read More

Key Insights

• ✊ The video discusses the computation of power gain, noise figure, and bandwidth for an upconverter parametric amplifier.
• 😑 The power gain is calculated using a formula that involves the ratio of output frequency to signal frequency and a bracketed expression.
• ❓ The noise figure is calculated using a formula that involves the figure of merit, diode temperature, and other values.
• 🥳 The bandwidth is calculated using a formula that involves the figure of merit figure and the ratio.

Questions & Answers

Q: What parameters are required to calculate the power gain, noise figure, and bandwidth of a parametric amplifier?

The parameters required are the ratio of output frequency to signal frequency, the figure of merit, the figure of merit figure, and the diode temperature.

Q: How is the power gain calculated?

The power gain is calculated using the formula: gain = (F0/FS) * (X/(1 + sqrt(1 + X))^2. Substituting the given values, the power gain is computed as 9.55.

Q: What is the formula for calculating the noise figure?

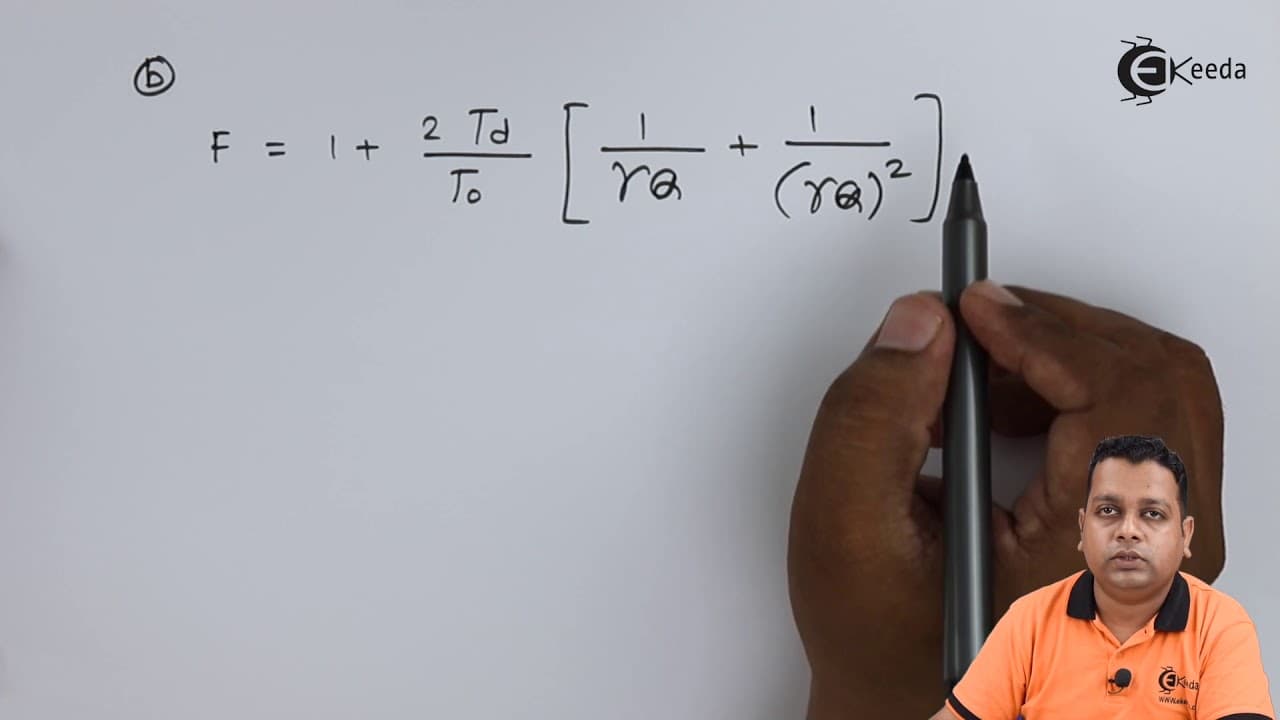

The noise figure is calculated using the formula: F = 1 + (2 * TD / T0) / (1 / (gamma * Q) + 1 / (gamma * Q)^2). Substituting the given values, the noise figure is computed as 1.

Q: How is the bandwidth calculated?

The bandwidth is calculated using the formula: BW = 2 * gamma * sqrt(A0/FS). Substituting the given values, the bandwidth is computed as 4.

Summary & Key Takeaways

• The video discusses the computation of power gain, noise figure, and bandwidth for an upconverter parametric amplifier.

• The problem statement provides values for the ratio of output frequency to signal frequency, figure of merit, figure of merit figure, and diode temperature.

• In Part A, the power gain is computed using a formula that involves the ratio and a bracketed expression.

• In Part B, the noise figure is computed using a formula that involves the figure of merit, diode temperature, and other values.

• In Part C, the bandwidth is computed using a formula that involves the figure of merit figure and the ratio.
