AND gate | Basic gates | Symbol | Truth Table | PDC | Lec-94

TL;DR

The video explains the functions and applications of the AND gate in logic circuits.

Transcript

hi everyone in this video I am continuing the basic Gates which I have started with or gate the second type of important gate are a basic gate verse and Gator so we know and gate and is nothing but and is nothing but either or okay either this one or that one if any one of the inputs is 0 output is zero both must be 1 then only the output should be... Read More

Key Insights

• ✋ The AND gate requires all inputs to be active (high) for a high output, establishing a fundamental rule in digital electronics.
• 🔬 Using physical components, like switches, effectively demonstrates the practical application of the AND gate to visualize electronic circuits.
• 🎨 A comprehensive understanding of the truth table for AND gates is essential for learning and designing more complex circuits.
• 💁 Fan-in and fan-out concepts inform circuit design to ensure reliable performance and signal integrity across multiple inputs and outputs.
• 🔢 The symbolic representation of AND gates adapts as the number of inputs increases, allowing for more flexible circuit design options.
• 🎮 This video lays the groundwork for understanding basic circuitry operations essential for advanced electronics topics.
• 🔬 An exploration of future videos will cover more complex gate realizations using diodes and transistors, expanding on basic AND gate functions.

Questions & Answers

Q: What is the primary function of an AND gate?

An AND gate functions to produce a high output (1) only when all of its inputs are high (1). If any one of the inputs is low (0), the output will automatically be low (0). This makes the AND gate essential for constructing logic circuits that require all conditions to be true for a positive outcome.

Q: How can the operation of an AND gate be demonstrated using physical components?

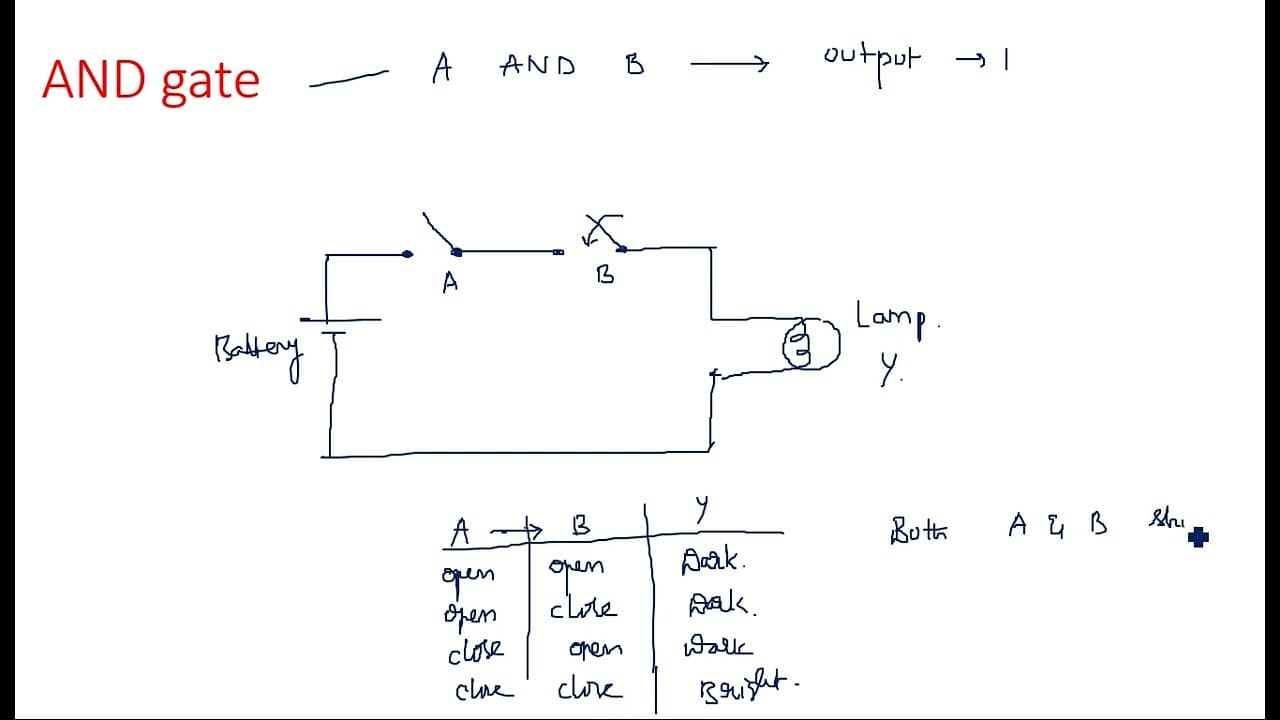

The operation of an AND gate can be illustrated with two switches connected in series to a circuit powering a bulb. When both switches are closed, the circuit is complete, allowing current to flow and the bulb to glow. If either switch remains open, the circuit is incomplete, and the bulb will not light up.

Q: Can an AND gate support more than two inputs?

Yes, an AND gate can support more than two inputs, and this is represented graphically by adding more inputs to the standard symbol. However, there are limits to the number of inputs based on the concepts of fan-in and fan-out, which dictate the maximum inputs and outputs a gate can manage effectively.

Q: What are fan-in and fan-out in the context of logic gates?

Fan-in refers to the maximum number of input signals that a logic gate can handle simultaneously, while fan-out indicates the number of outputs a gate can drive. For effective circuit design, it is important to adhere to these limits to avoid degradation of the output signal, which might lead to erroneous circuit behavior.

Q: How does the truth table for an AND gate function?

The truth table for an AND gate enumerates all possible combinations of its inputs and their corresponding output. For instance, with two inputs A and B, the output is 1 (high) only when both A and B are 1. This truth table helps in understanding the basic logic operation of the AND gate in digital circuits.

Q: What will be the output if only one of the inputs is high in an AND gate?

If only one input in an AND gate is high (1), the output will be low (0). This characteristic highlights the crucial requirement of the AND operation, where all inputs must be activated to achieve a high output signal, ensuring logical accuracy in circuits.

Summary & Key Takeaways

• The video introduces the AND gate, emphasizing that both inputs must be high (1) for the output to be high (1), while any low input results in a low output.

• It provides a practical example using switches to illustrate how the AND gate operates, where two switches must be in series to complete the circuit, allowing a bulb to glow only when both are closed.

• The content covers the truth table for AND gates, representing outputs based on various input combinations and introduces the concepts of fan-in and fan-out, which limit the number of inputs and outputs in a gate.
