Numerical 2 on MOSFET

TL;DR

Calculating flat-band voltage in MOS capacitor using given oxide thickness and semiconductor properties.

Transcript

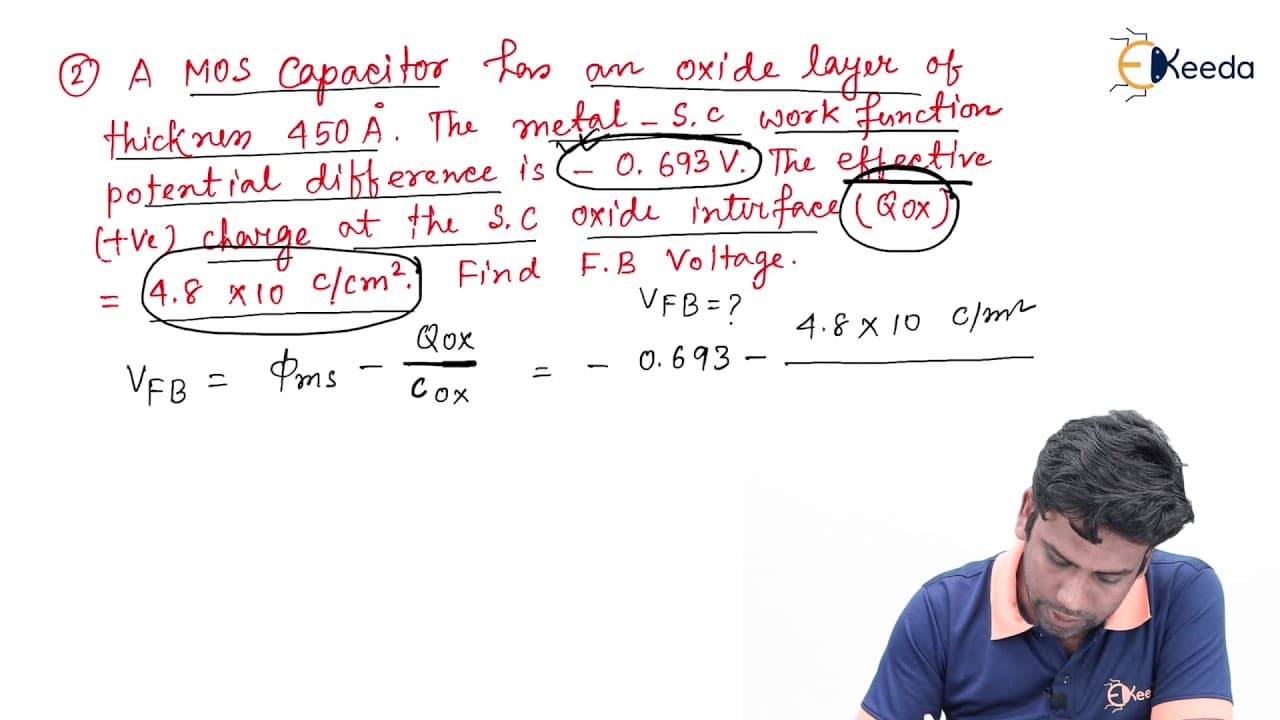

hello friends in this video we are going to discuss about a numerical on metal-oxide-semiconductor fit according to the given numerical it is given that a MOS capacitor has an oxide layer of thickness four five zero angstrom and the metal oxide semiconductor work function is potential difference is given by minus 0.693 volt the effective positive c... Read More

Key Insights

• 🤕 The flat-band voltage in a MOS capacitor is determined by the oxide layer thickness and semiconductor properties.
• 🤕 The equation for calculating the flat-band voltage involves the metal oxide semiconductor work function and oxide capacitance.
• 🤕 Understanding the semiconductor oxide interface charge is vital for accurately calculating the flat-band voltage.
• 🤕 The oxide layer's relative permittivity and thickness significantly influence the flat-band voltage calculation.
• 🤕 Proper calculation of the flat-band voltage is essential for eliminating electrical field bendings in the MOS capacitor.
• ⚡ MOS capacitors require a specific voltage, like -1.32 volts in this case, for optimal performance.
• 🤕 The flat-band voltage serves as a crucial parameter for ensuring the correct operation of MOS capacitors.

Questions & Answers

Q: What is the significance of the flat-band voltage in a MOS capacitor?

The flat-band voltage is essential as it represents the voltage needed to eliminate all built-in electrical field bendings, ensuring proper MOS capacitor operation.

Q: How does the oxide layer thickness impact the calculation of the flat-band voltage?

The oxide layer thickness directly affects the calculation through its contribution to the oxide capacitance per unit area, influencing the flat-band voltage value.

Q: What role does the semiconductor oxide interface charge play in determining the flat-band voltage?

The semiconductor oxide interface charge, represented by Cox, is a critical factor as it affects the flat-band voltage calculation, signifying the charge distribution within the MOS capacitor.

Q: Why is it necessary to consider the metal oxide semiconductor work function in the calculation?

The metal oxide semiconductor work function is crucial as it contributes to the potential difference in the flat-band voltage equation, impacting the overall voltage requirement for the MOS capacitor's operation.

Summary & Key Takeaways

• Given a MOS capacitor with an oxide layer of 450 angstrom and specified semiconductor properties, we need to calculate the flat-band voltage.

• Utilizing the formula PhiMs - (QofOx/Cox), where all involved values are provided, the flat-band voltage is determined to be -1.32 volts.

• The flat-band voltage is crucial for eliminating all built-in electrical field bendings in the MOS capacitor.
