DC to AC Reverse Polarity Using Capacitors, Inductors, & Transformers

TL;DR

Capacitors and inductors can be used to briefly reverse the polarity and direction of a DC signal.

Transcript

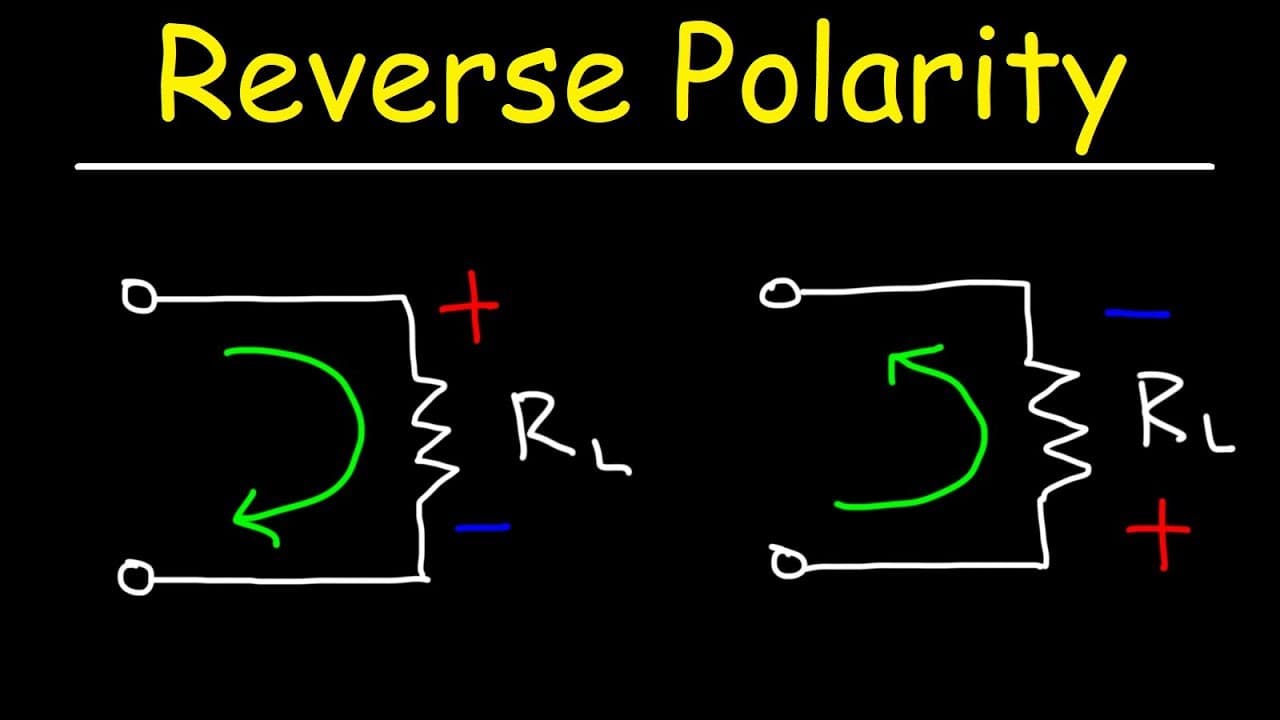

consider the circuit that's shown on the board we have a battery attached to a resistor we know that conventional current will flow from the positive terminal through the resistor to the negative terminal now keep in mind electron flow is in the opposite direction but let's say if we want to reverse the polarity across the load resistor how can we ... Read More

Key Insights

• 📡 Capacitors and inductors can briefly reverse the polarity and direction of a DC signal.
• 😚 When a switch is closed, a capacitor charges, and when the switch is opened, it discharges, reversing the current direction.
• 🏑 Inductors store energy in their magnetic field, and when the switch is opened, the collapsing magnetic field causes a reversal in current direction.
• ◀️ By using resistors in combination with capacitors or inductors, the current direction can be reversed in a circuit.
• ◀️ Transformers, which consist of two separate coils, can also be used as inductors to reverse current direction.
• 💗 By using a pulse generator, such as the 555 timer circuit, the capacitors and inductors can create alternating current (AC) instead of direct current (DC).

Questions & Answers

Q: How can capacitors and inductors reverse the polarity of a DC signal without reversing the battery's polarity?

Capacitors can reverse the current after being charged by the battery. When the circuit is open, the capacitor discharges and current flows in the opposite direction. Inductors, on the other hand, release stored energy as their magnetic field collapses, causing a reversal in polarity and current direction.

Q: What happens when the switch is closed in a circuit with a capacitor and resistor?

When the switch is closed, current flows through the resistor and charges the capacitor. The capacitor absorbs energy from the battery and the load resistor, causing the top part of the load resistor to become positive and the bottom part to become negative.

Q: Can the direction of current be reversed using only a capacitor and resistors?

Yes, by using a capacitor and two resistors in a circuit, the direction of current can be reversed. When the switch is closed, the capacitor charges and the current flows in one direction. When the switch is open, the capacitor discharges through a different resistor, causing the current to reverse its direction.

Q: How can an inductor reverse the direction of current?

When the switch is closed, current flows through the inductor. As the current increases, the inductor's magnetic field expands. When the switch is opened, the inductor tries to maintain the current, and the collapsing magnetic field causes the polarity across the inductor to reverse, resulting in a reversal of current direction.

Summary & Key Takeaways

• Capacitors and inductors can reverse the polarity and direction of current in a circuit.

• When a capacitor is charged, it can discharge and change the direction of the current flow.

• Similarly, when an inductor's magnetic field collapses, it can reverse the polarity and direction of the current.
