Directional coupler | S matrix | Microwave Engineering | Lec-79

TL;DR

This video explains the scattering matrix parameters of directional couplers in detail.

Transcript

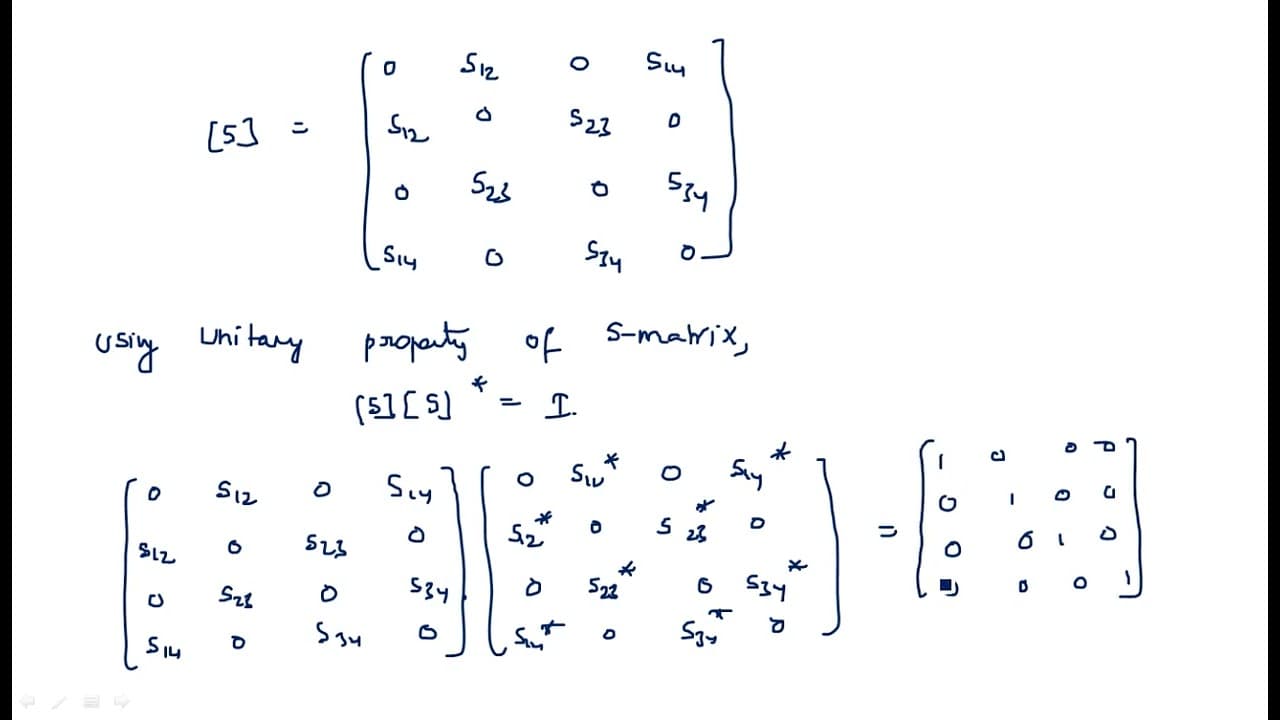

hi everyone in this video I am going to explain about the scattering Matrix parameters of directional coupler so in the last video I have explained about the operation and what are the different factors we can calculate using the directional coupler so this is the directional coupler as a waveguide which is having four ports and a single hole from ... Read More

Key Insights

• ✊ Directional couplers serve as integral components in microwave circuits, enabling effective power distribution through various waveguides.
• 👻 The four-port structure allows for diverse signal interactions, essential for applications requiring isolation and coupling.
• 😆 The scattering matrix obtained from the analysis highlights unique parameters such as p and q, which reflect the coupler's specific operational characteristics.
• 🥺 Perfect matching at ports means minimal reflection, leading to more efficient energy transfer and reduced signal loss.
• 🥺 As described, S-parameters can be simplified due to decoupling properties, which lead to zero values for certain interactions, enhancing predictability in network behavior.
• 🛟 Unitary property ensures that the coupler operates within defined limits, preserving energy conservation in signal processing applications.
• 🎅 The analytical approach to deriving the S matrix emphasizes the mathematical rigor applied in microwave engineering to design reliable communication systems.

Questions & Answers

Q: What is a directional coupler, and how is it structured?

A directional coupler is a device used to couple power from one waveguide to another. It typically consists of four ports arranged to allow input from various directions while isolating certain ones. This arrangement enables power transfer between an incident waveguide and auxiliary waveguides, leveraging a specialized coupling mechanism.

Q: What are the significance and applications of scattering matrix parameters?

Scattering matrix parameters (S-parameters) provide critical insights into how microwave signals behave in a network. These parameters help in assessing reflection, transmission, and isolation of signals passing through a coupled system, which is essential for designing efficient communication systems, antennas, and RF circuits.

Q: How many S-parameters need to be calculated for a four-port directional coupler, and what does this indicate about its characteristics?

For a four-port directional coupler, 16 S-parameters must be calculated, indicating that each port can interact with every other port. It reflects complex interactions and allows engineers to understand power distribution, isolation levels, and efficiency in signal transmission through the coupler.

Q: What does the symmetry property of the S matrix imply for the directional coupler?

The symmetry property of the S matrix indicates that the transmission and reflection characteristics of certain ports are equivalent, meaning that S12 equals S21 and other related S-parameters exhibit similar reciprocity. This property is vital for ensuring consistent performance irrespective of the input direction in couplers.

Summary & Key Takeaways

• The video outlines the structure and operation of a directional coupler, which connects a main waveguide with auxiliary waveguides and features four distinct ports for power flow.

• It highlights the necessity of calculating S-matrix parameters, with 16 total parameters that define the behavior of the coupler based on its properties, including its matched ports and decoupling features.

• The presentation concludes with a derived scattering matrix that illustrates the relationships between the ports and shows how these matrices can differ based on the unique properties of directional couplers.
