Punch - Sheet Metal Forming - Production Process 2

TL;DR

Punch in die set is a male member that forces material down, held by punch holder, pressure plate for cushioning.

Transcript

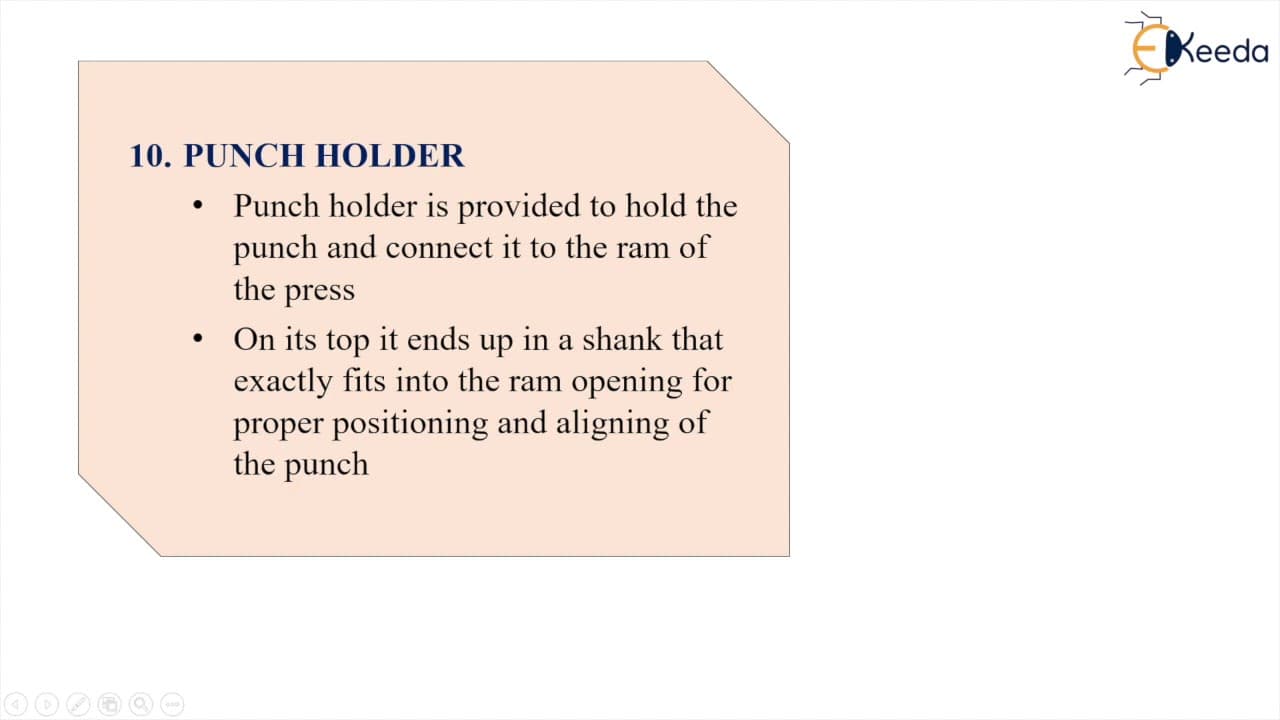

now students in the last video we learned about the dye in the press okay now we are going to understand about the punch so punch is the male member of this die set which forces the sheet the stalk down to the or down into the die to form it or to pierce it like the die it is also made of hard via resistance material of course to have at the near e... Read More

Key Insights

• 😫 Punch in a die set is the male member that shapes or cuts materials.
• 😩 It is made of wear-resistant material and attached to the RAM through a punch holder.
• 🍽️ Pressure plate provides cushioning effect and distributes pressure evenly.
• 😑 Punch holder holds the punch and connects it to the press machine.
• 🦮 Guide posts and guide bushings ensure proper alignment for precise operation.
• 😫 Proper maintenance of punch components is crucial for efficient die set operation.
• 😫 Understanding the functions of each component in a die set is essential for successful metalworking.

Questions & Answers

Q: What is the main function of a punch in a die set?

The main function of a punch in a die set is to force material down or pierce it, shaping or cutting the material as per the die's design.

Q: How is a punch attached to the press machine?

A punch is attached to the RAM of the press machine through a punch holder, ensuring proper positioning and alignment for effective operation.

Q: What is the purpose of a pressure plate in a die set?

The pressure plate in a die set provides a cushioning effect, distributing pressure over a wider area of the punch holder to prevent breakage under heavy loads.

Q: Why are guide posts and guide bushings used in a die set?

Guide posts and guide bushings are used in a die set to provide proper alignment between the die shoe and punch holder, ensuring precise and accurate operation.

Summary & Key Takeaways

• The punch in a die set is the male member that forces material down or pierces it.

• It is made of hard, wear-resistant material and attached to the RAM through a punch holder.

• Pressure plate provides cushioning effect and distributes pressure over a wider area, reducing the possibility of breakage.
