3.2.1 MOSFET: Physical View

TL;DR

Combinational devices require specific voltage thresholds for accurate interpretation of input and output signals, and the metal-oxide-semiconductor field-effect transistor (MOSFET) is a technology that fulfills the requirements for inexpensive, low-power, and high-functionality digital systems.

Transcript

Let's review our wish list for the characteristics of a combinational device. In the previous lecture we worked hard to develop a voltage-based representation for information that could tolerate some amount error as the information flowed through a system of processing elements. We specified four signaling thresholds: V_OL and V_OH set the upper an... Read More

Key Insights

• ⚡ Combinational devices require specific voltage thresholds and noise margins for accurate signal interpretation.
• ⚡ The voltage transfer characteristic of combinational devices must have forbidden regions to ensure valid input and output voltages.
• 😘 MOSFET transistors are solid-state switches controlled by electrical fields and offer high gain, low power dissipation, and small dimensions.
• 🐎 Shrinking device dimensions according to Moore's Law enables the production of more devices with increased speed.

Questions & Answers

Q: What are the voltage thresholds needed for accurate signal interpretation in combinational devices?

Combinational devices require four signaling thresholds: V_OL and V_OH for output voltages representing 0 and 1, and V_IL and V_IH for interpreting input voltages.

Q: How do noise margins affect the design of combinational devices?

Noise margins determine the range within which valid output voltages can be maintained for specific input voltages, influencing the overall gain and non-linearity of the voltage transfer characteristic.

Q: What characteristics make MOSFET transistors suitable for digital systems?

MOSFET transistors offer high gain, low power dissipation, and small dimensions, fulfilling the requirements for inexpensive, low-power, and high-functionality digital systems.

Q: How does the MOSFET transistor function as a voltage-controlled switch?

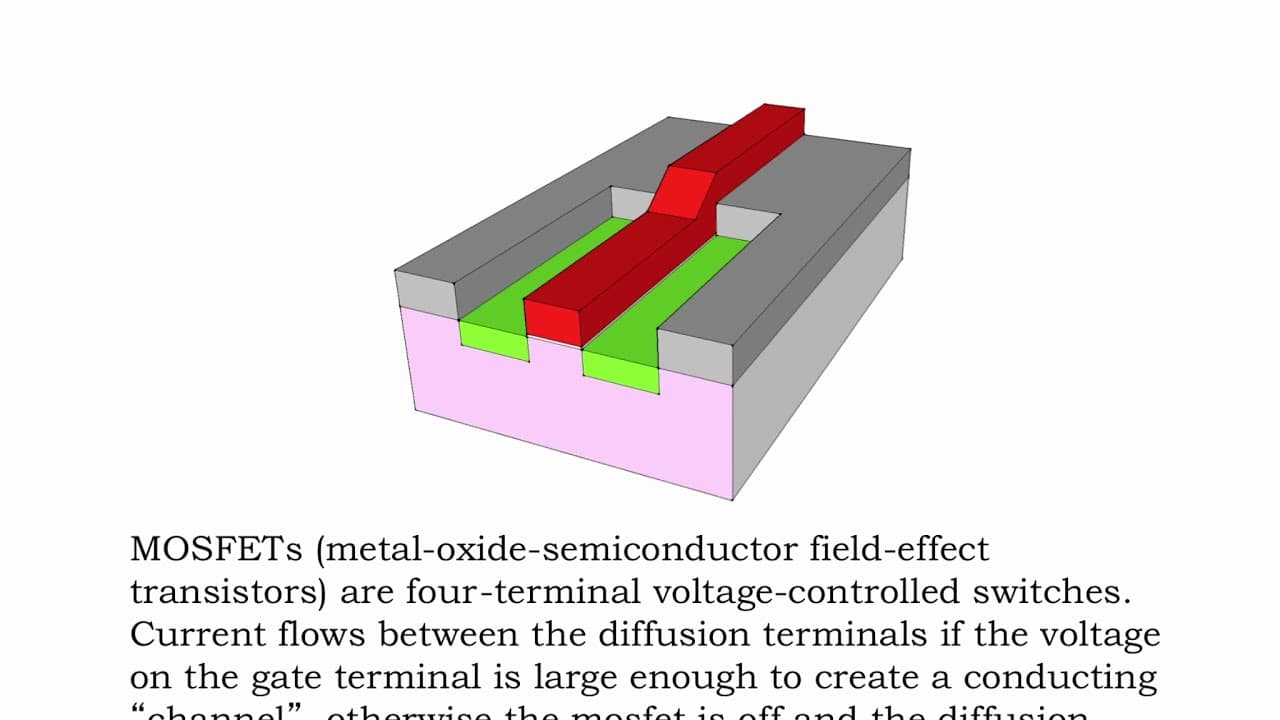

The MOSFET transistor has four terminals (bulk, gate, source, and drain) and operates by changing the voltage on the gate terminal to control the flow of current between the source and drain terminals.

Summary & Key Takeaways

• Combinational devices use voltage-based representation of information with specified thresholds for inputs and outputs to ensure accurate signal interpretation.

• Noise margins, the difference between voltage thresholds, determine the amount of noise that can be added to a signal while still maintaining correct interpretation.

• MOSFET transistors are solid-state devices that function as voltage-controlled switches, offering high gain, low power dissipation, and small dimensions for use in digital systems.
