H plane T junction | S matrix | Microwave Engineering | Lec-60

TL;DR

The video explains the calculation of scattering matrix parameters for H-plane T junctions.

Transcript

hi everyone in this video I am going to explain about a scattering Matrix parameters calculations of H plenty Junction in the last video I have explained what do you mean by hedge plane disjunction and how the signals are going to be transmitted among the ports now let us see the s Matrix calculation of H plane T Junction this type of questions are... Read More

Key Insights

• 🚙 The H-plane T junction features three ports, with unique properties facilitating the analysis of microwave circuits.
• 🥺 The calculated size of the scattering matrix is 3x3, leading to nine S-parameters that describe signal behavior at the junction.
• 😀 Important properties like symmetry and matching conditions aid in reducing the complexity of S-parameter calculations.
• 🚙 Reflection coefficients are crucial in understanding signal dynamics at different ports during transmission and reception.
• 💁 The S-matrix properties enable engineers to efficiently extract essential information from the scattering parameters.
• 🆘 The final simplified S-matrix utilizes properties that help conclude only four parameters are necessary for analysis.
• 🧑‍🎓 Understanding these calculations is vital for students and professionals preparing for examinations or practical applications in microwave engineering.

Questions & Answers

Q: What is the significance of the H-plane T junction in microwave engineering?

The H-plane T junction is critical in microwave engineering as it serves as a waveguide junction where power can be split or combined. Understanding its scattering matrix parameters allows engineers to design and analyze microwave circuits effectively, optimizing signal transmission.

Q: How does the number of ports influence the size of the scattering matrix?

The size of the scattering matrix is directly related to the number of ports in the waveguide junction. For an H-plane T junction with three ports, the scattering matrix dimensions are 3x3, meaning nine S-parameters are generally calculated to describe the system comprehensively.

Q: Can you explain the symmetry property in the context of the S-matrix?

The symmetry property of the S-matrix indicates that S(i,j) = S(j,i), meaning the scattering parameters are equal when the input and output port indices are swapped. This property reduces the number of unique parameters to calculate, making analysis more efficient.

Q: What is the role of perfectly matched conditions in determining S-parameters?

Perfectly matched conditions, such as in port 3 of the H-plane T junction, lead to parameters like S33 being equal to zero. This indicates there are no reflections at that port when it's perfectly matched, simplifying the overall calculation of the scattering matrix.

Q: How do the reflection coefficients (S11, S12, etc.) relate to input-output relationships?

Reflection coefficients represent the proportion of an incoming signal that is reflected back at a port. For example, S11 quantifies how much power entering port 1 is reflected back, while S12 represents the power from port 1 that exits at port 2. This interpretation helps analyze system behavior under various input conditions.

Q: What is the significance of reducing the number of S-parameters from nine to four?

Reducing the S-parameters from nine to four simplifies the analysis of the H-plane T junction, saving time and effort when solving problems. This reduction enables engineers to focus only on the most relevant parameters without losing critical information regarding the junction's performance.

Summary & Key Takeaways

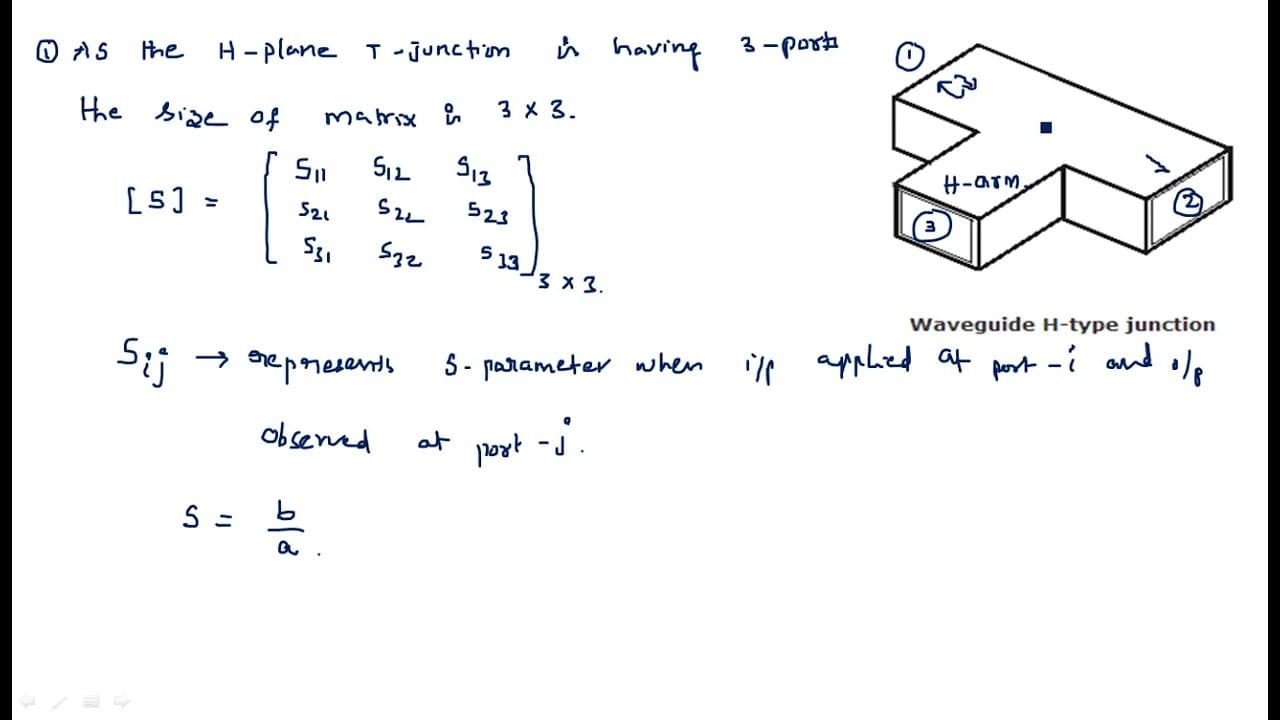

• The video discusses the H-plane T junction's structure and its three ports, essential for calculating scattering matrix parameters.

• It breaks down the calculation of S-parameters, emphasizing the matrix's size (3x3) and demonstrating how to derive the values based on input-output relationships.

• The properties of the S-matrix, including symmetry and unitary properties, facilitate reducing the number of unknown parameters from nine to four, enhancing calculation efficiency.
