Balancing of V Engines Numerical 2 - Balancing in Dynamics of Machinery - Dynamics of Machinery

TL;DR

Analyzing the balance of V engines with specific calculations and forces involved.

Transcript

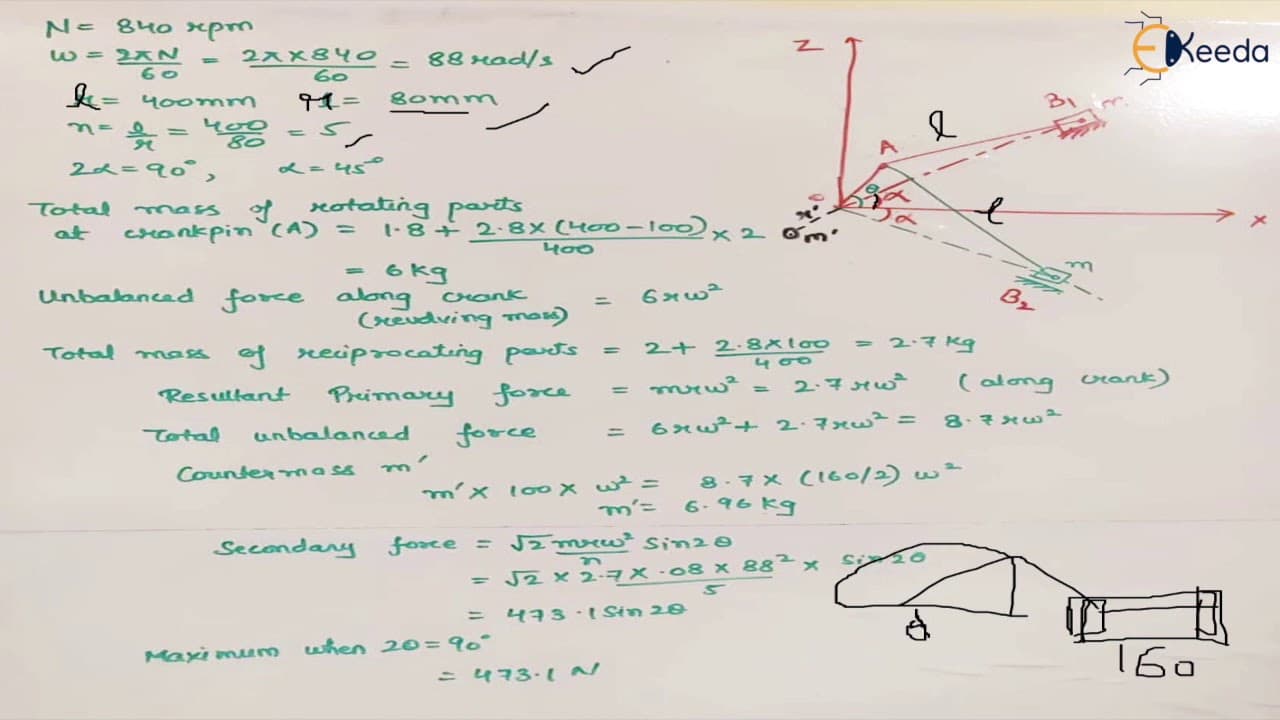

hello everyone in this video we'll discuss a numerical on balancing of v engines v engines are basically the combinations of two connecting rods in such a way that two connecting rods as a combined effort they move a single crank shaft and the cylinders they are also inclined at certain angles so in the question it is given that the x's they are in... Read More

Key Insights

• 🥰 V engines use a unique design with two connecting rods and inclined cylinders.
• 💆 Primary forces due to counterweight and center of mass affect engine balance.
• 🥳 Secondary forces from reciprocating and revolving parts impact the overall balance.
• 🥰 Calculation of unbalanced forces is crucial for determining the need for a counter mass in V engines.
• 🦻 Analyzing the resultant secondary force aids in understanding the maximum force exerted by the engine.
• 🎮 Speed, angle, and stroke measurements play significant roles in balancing V engines.
• 🥰 Utilizing dynamic equivalent reductions helps simplify the balancing calculations for V engines.

Questions & Answers

Q: How are V engines structured?

V engines consist of two connecting rods moving a single crankshaft with inclined cylinders at right angles to each other.

Q: What forces need to be considered in balancing V engines?

Primary forces due to counterweight and center of mass, as well as secondary forces based on reciprocating and revolving parts, must be calculated for engine balance.

Q: How is the total unbalanced force calculated in a V engine?

By summing the primary forces from reciprocating and revolving parts, the total unbalanced force is determined for engine balancing.

Q: What is the significance of calculating the resultant secondary force in V engines?

The resultant secondary force analysis aids in understanding the maximum force exerted in the system and optimizing engine balance.

Summary & Key Takeaways

• V engines use two connecting rods with inclined cylinders at right angles.

• Calculation of primary and secondary forces involved in balancing the V engine.

• Determining counter mass and resultant secondary force for engine balance.
