Exclusive NOR gate | Truth Table | STLD | Lec-24

TL;DR

The video explains the exclusive nar gate, its truth table, and applications in digital circuits.

Transcript

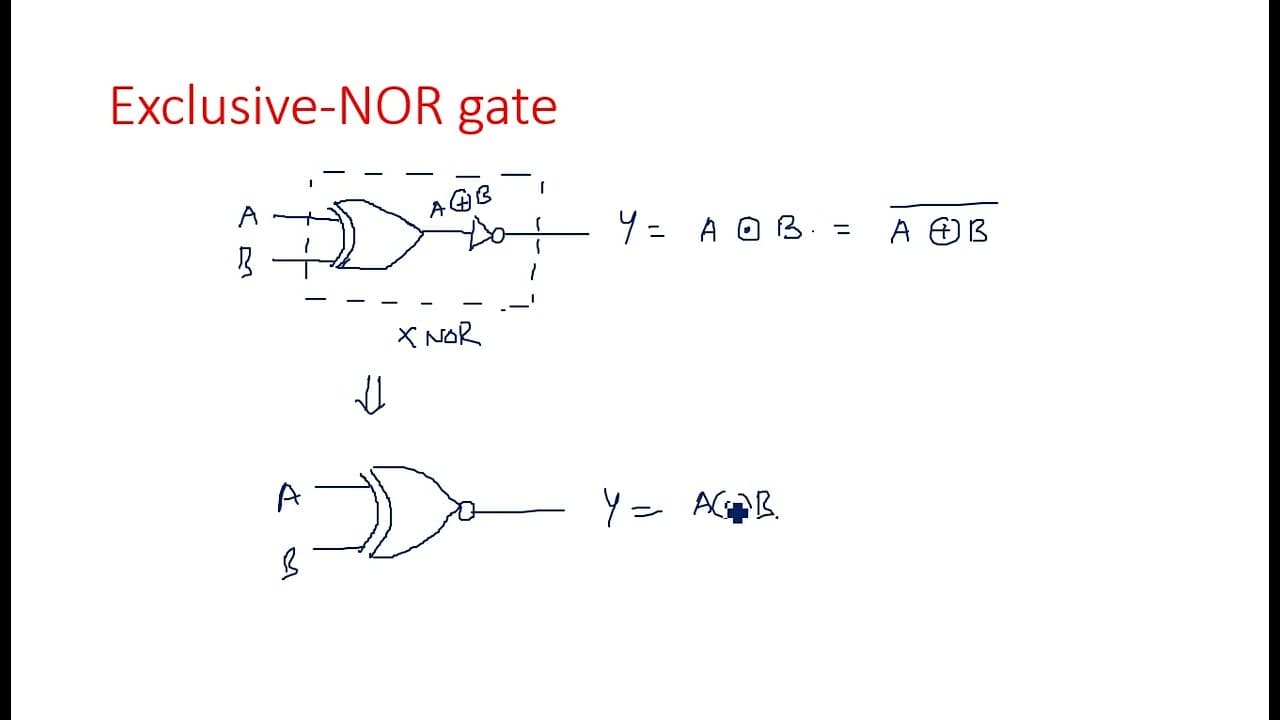

hi everyone in this video I'm going to explain about exclusive narate in the previous video we have SE in exclusive R gate so nor is the another type of exclusive gate where these type of exclusive gates are clearly preferred for uh error correction and detecting purposes so exclusive narate exclusive narate the symbol is C it is also derived from ... Read More

Key Insights

• 🔬 The exclusive nar gate is defined as being derived from the r operation and primarily used in error detection mechanisms.
• 🤑 Its output depends critically on the parity of the inputs; odd ones yield one output while even ones yield the opposite.
• 🔬 The construction of a NOT gate using an exclusive nar gate requires careful input management, particularly fixing one input at zero.
• 🔬 The truth table is essential for understanding the gate’s behavior, revealing patterns in output relative to input combinations.
• 🔬 A unique property of the gate is that its complement operations are only directly applicable with two input variables.
• 🖐️ Odd-even detection plays a pivotal role in logic circuit design, significantly impacting how data integrity is maintained.
• 🥺 The gate's characteristics lead to its application in more complex logical arrangements, making it versatile in digital design.

Questions & Answers

Q: What is the main function of the exclusive nar gate?

The exclusive nar gate primarily functions in error correction and detection processes within digital circuits. It helps identify discrepancies in data transmission by evaluating the logic states of its inputs and producing a corresponding output based on the configured logic. This makes it particularly valuable in reliable circuit design.

Q: How is the truth table for the exclusive nar gate constructed?

The truth table for the exclusive nar gate is constructed by evaluating all possible input combinations, specifically when inputs A and B can each be 0 or 1. The outputs are determined based on whether there are odd or even numbers of ones present, leading to unique results that facilitate further logical operations.

Q: Can you explain how to construct a NOT gate using the exclusive nar gate?

To create a NOT gate using the exclusive nar gate, one input should be fixed at logic zero while the other input remains variable. When the variable input changes, the output reflects the inverted state of that input, effectively creating the function of a NOT gate through the exclusive nar's logical operation.

Q: What unique property does the exclusive nar gate possess regarding input counts?

The exclusive nar gate has a notable property where the complement output is equivalent to the output of the exclusive operation for configurations with two inputs. However, this equivalence does not hold true for three or more inputs, showcasing the gate's unique limitations in complex scenarios.

Q: What is the significance of odd and even counts of ones in the gate's operations?

The significance lies in how the exclusive nar gate determines its output; it produces a low output when there are odd counts of ones and a high output when the count is even. This characteristic is fundamental for distinguishing between various logical states in circuit designs.

Q: How does the exclusive nar gate differ from traditional XOR gates?

The exclusive nar gate operates similarly to an XOR gate but includes an inverter that affects the output based on additional configurations of its inputs. This results in variations in output behavior under specific input conditions, providing greater flexibility for certain applications.

Summary & Key Takeaways

• The exclusive nar gate is an error detection tool derived from the r operation, useful in various digital applications.

• Its output behavior is defined using a truth table, showcasing the relationship between input combinations and the resulting output based on odd and even counts of ones.

• The video concludes by emphasizing the importance of input configurations for creating not gates or other logical arrangements using the exclusive nar gate.
