Skewing of Rotar slots | SCIM | Cogging | Crawling | Lec-14

TL;DR

This session discusses techniques to enhance squirrel cage rotor performance by overcoming disadvantages.

Transcript

hello everyone in this session improving techniques so for what improving techniques so in the last session we discussed some disadvantages of sql gauge rotor what are those disadvantages of skill gauge rotor it has low starting torque and second high starting current and third is low power factor these are the problems involved with the squirrel g... Read More

Key Insights

• 🎨 Squirrel cage rotors are limited by starting torque, current draw, and overall efficiency related to their structural design.
• 🦥 Modifications such as the skewed rotor slot can significantly enhance performance by improving torque characteristics and reducing harmonic distortion.
• 🧑‍🦼 Understanding cogging and crawling is critical for troubleshooting common issues in squirrel cage induction motors; these problems can be effectively managed through design changes.
• 🧑‍🦼 Ensuring uniform air gap flux distribution is essential for reducing harmonic stresses and ensuring smoother operation of the motor.
• 🤢 The implementation of deep copper bars in rotor construction can enhance the starting torque of squirrel cage motors under load conditions.
• 🧑‍🦼 Differences in the number of stator and rotor slots can minimize cogging, which improves the reliability of motor performance.
• 😘 Short pitch coils are a strategic approach to reduce the adverse effects of harmonics, particularly in preventing low-speed operation scenarios.

Questions & Answers

Q: What are the main disadvantages of squirrel cage rotors?

Squirrel cage rotors exhibit three primary disadvantages: low starting torque, which makes them less effective under heavy load conditions; high starting current, which can strain the power supply and potentially damage the motor; and low power factor, which affects the overall efficiency of the motor and can lead to increased operational costs.

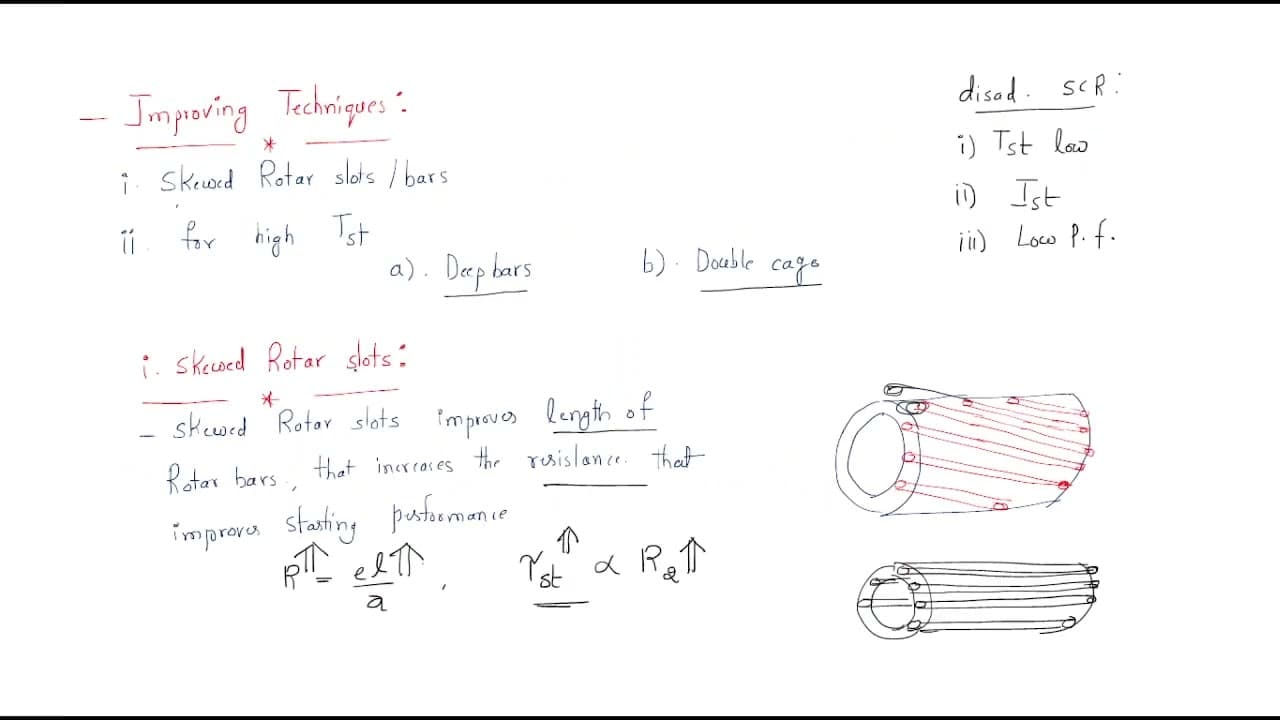

Q: How do skewed rotor slots enhance rotor performance?

Skewed rotor slots help improve rotor performance by increasing the length of the rotor bars, which raises the resistance. Higher resistance leads to improved starting torque, thus enhancing the starting performance. Additionally, this design promotes a more uniform air gap flux distribution, which mitigates issues with harmonic distortions, leading to smoother operation and reduced cogging effects.

Q: What is cogging and how does it affect motor performance?

Cogging refers to the phenomenon where the magnetic fields of the stator and rotor interlock, preventing rotation. This interlocking can cause the rotor to lock in place rather than turn, severely hindering motor operation. To reduce cogging, modifications such as skewed rotor design and different slot configurations for stator and rotor are utilized, allowing better freedom of movement.

Q: What causes crawling in squirrel cage motors, and how can it be mitigated?

Crawling occurs when a squirrel cage motor runs at a very low speed, often one-seventh of its synchronous speed, primarily due to seventh harmonic effects. This slow operation is referred to as crawling. To combat this, shorter pitch coils can be employed, which decrease the coil span, thereby minimizing harmonic effects and allowing the motor to achieve more effective speeds.

Summary & Key Takeaways

• The session addresses the disadvantages of squirrel cage rotors, including low starting torque, high starting current, and low power factor. Solutions to these issues utilize modified rotor designs and materials.

• Key improvement techniques include skewed rotor slots, which increase rotor bar length and resistance, thereby improving starting torque and uniformity of air gap flux distribution.

• The session also differentiates between cogging, caused by stator-rotor magnetic interlock, and crawling, characterized by slow rotor speed due to harmonic effects, and discusses methods to mitigate these effects.
