What Are the Different Types of Sheet Metal Dies?

TL;DR

There are various types of sheet metal dies, including cutting dies for shearing, bending dies for curling, and forming dies for shaping. Key types include simple, progressive, compound, combination, and transfer dies, each designed for specific operations. Progressive dies perform multiple functions in sequence, while compound dies execute multiple cuts at a single station.

Transcript

now let us see the face working guys so based on the type of place operation we are having the sheering dice so guys useful banking you're seeing punching matching perforating trimming sharing and marketing operations all these guys are known as the sharing - all the cutting dies then in building dice the dice choose for bending rolling or forming ... Read More

Key Insights

• 🤘 There are various sheet metal operations, including shearing, curling, forming, drawing, embossing, and flattening.
• 🎲 Different types of dies, such as cutting dies, forming dies, and squeezing dies, are used for specific operations.
• 🎲 The construction of dies includes simple dies, progressive dies, compound dies, combination dies, transfer dies, and multiple or gang dies.

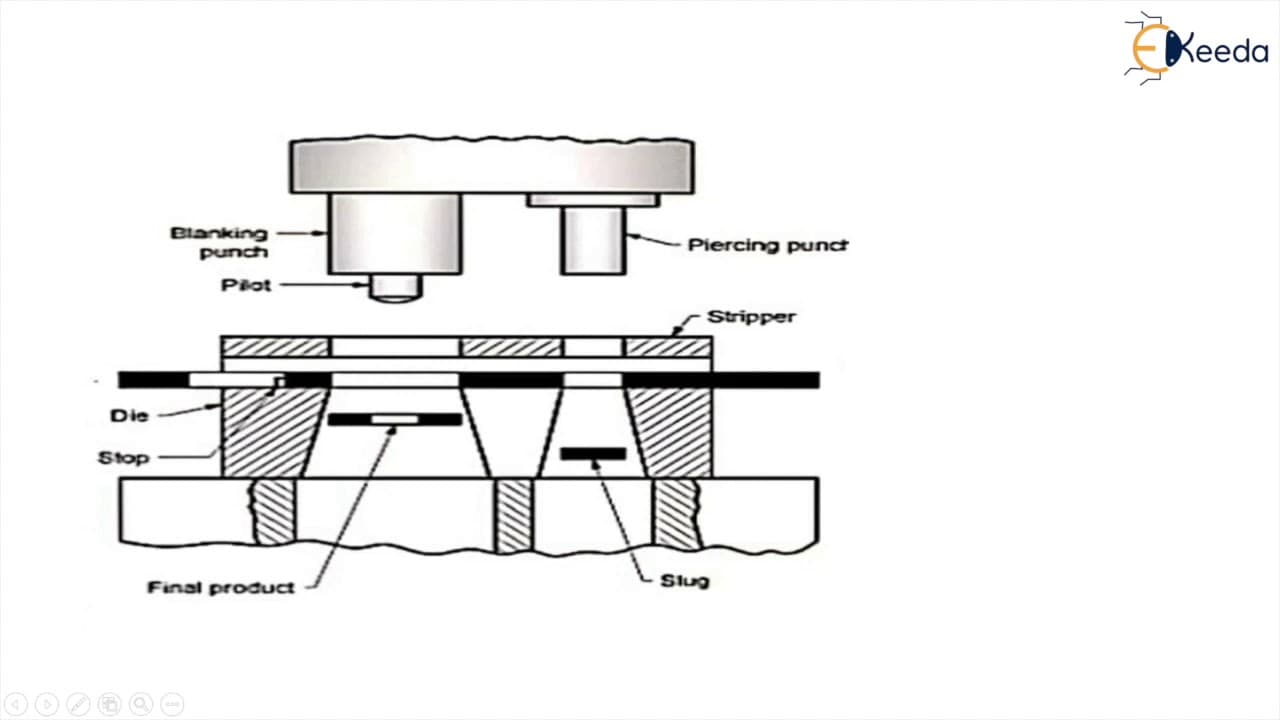

• 🎲 Progressive dies allow for simultaneous operations at different stages, while compound dies combine multiple functions at one station.
• 🤘 Staggering of punches is a technique used to minimize force in cutting sheet metal operations.
• 🎲 Blanking is usually the last operation in progressive dies, while piercing is the first operation.

Summary & Key Takeaways

• The content explains the different types of sheet metal operations, including shearing, curling, forming, drawing, embossing, and flattening.

• It describes the different types of dies used for each operation, such as cutting dies, bending dies, and compound dies.

• The content also covers the construction of dies, including simple dies, progressive dies, compound dies, combination dies, transfer dies, and multiple or gang dies.
