Mason's Gain Formula Problem 6 - Transfer Function and Signal Flow Graph - Control Systems

TL;DR

Learn how to draw a signal flow graph for a system by analyzing its given linear equations.

Transcript

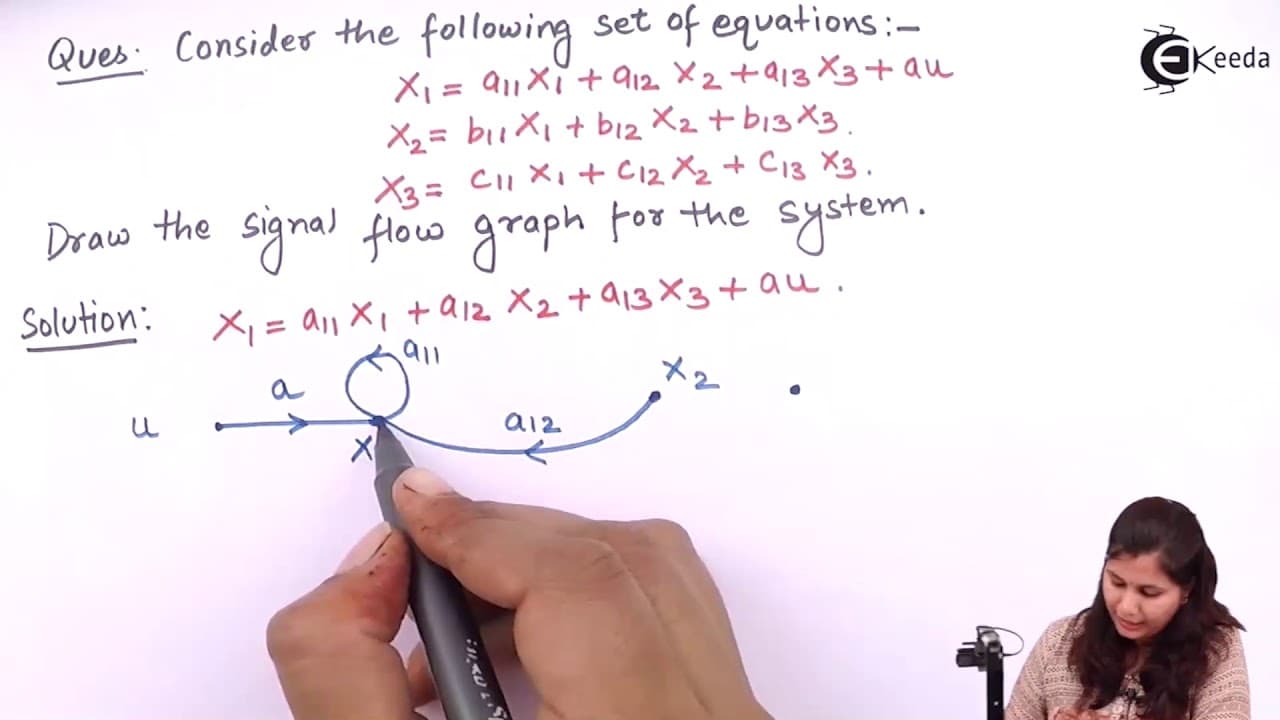

hello friends in this video we are going to draw the signal flow graph for a system whose equations or linear equations are given to us so let's see the problem what it is c so in the question we are given three set of equations and using these three set of equations we have to draw the signal flow graph for the system so let us consider one equati... Read More

Key Insights

• 💐 Linear equations can be used to create a signal flow graph for a system, enabling easier analysis and design.
• 💐 Each variable in the equations corresponds to a node in the signal flow graph, helping visualize the system's components.
• 🉐 Transmittances in the graph indicate the relationship and influence between variables, with each constant or gain represented.

Summary & Key Takeaways

• The video explains how to draw a signal flow graph for a system using three sets of linear equations.

• Each equation is analyzed, and nodes and transmittances are identified based on the variables and constants in the equations.

• The signal flow graphs for each equation are then combined to create the complete signal flow graph for the system.
