What Is the Magnification Factor in Vibratory Systems?

TL;DR

The magnification factor is the ratio of the amplitude of forced vibrations to static deflection in a vibratory system, determined by the frequency ratio and damping ratio. It shows how external forces amplify motion compared to static responses, peaking at resonance conditions but decreasing with increasing damping.

Transcript

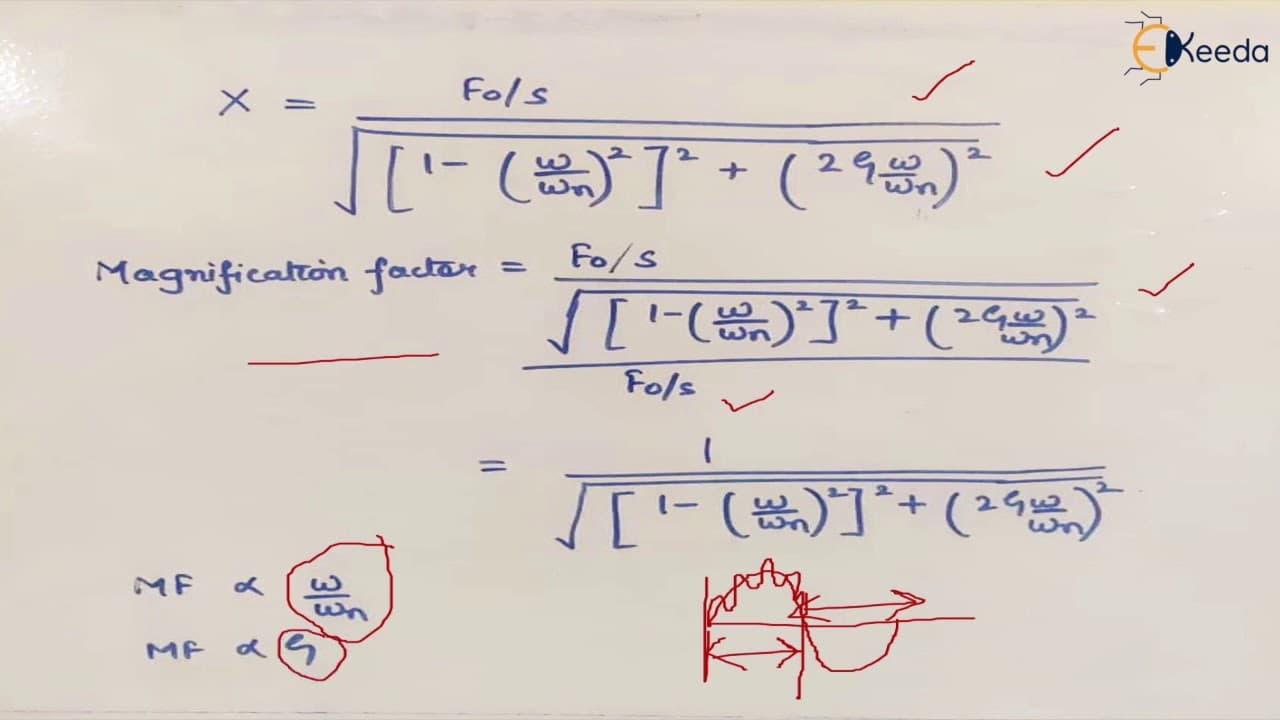

hello everyone in this video we'll discuss about magnification factor the magnification factor is basically the ratio of amplitude of steady state response to static deflection under the action of force now what is static deflection static deflection is the one in which a mass is acted upon by a static force by a linear force which is connected to ... Read More

Key Insights

• 🧑‍🏭 The magnification factor is a crucial parameter in analyzing forced vibration systems in engineering.
• 🥳 It depends on the frequency ratio and the damping ratio of the system.
• 🥳 Higher frequency ratios result in larger magnification factors, while higher damping ratios reduce the magnitude of the magnification factor.
• 🧑‍🏭 The magnification factor signifies the amplification of motion caused by an external force in relation to static deflection.
• 🙊 The magnification factor has a peak value at resonance conditions, but as the damping ratio increases, the peak shifts away from this line.
• 🧑‍🏭 Infinite magnification factors are not observed due to the presence of damping factors and physical limitations of the system.

Summary & Key Takeaways

• The magnification factor is the ratio of the amplitude of forced vibration to static deflection in a mass-spring-damper system.

• Static deflection is the deflection of the spring due to a static force, while the steady state response is the displacement caused by a harmonic force.

• The magnification factor depends on the frequency ratio (omega/omega_n) and the damping ratio (zeta).
