Electrostatic Voltmeters - Measurement of High Voltages and High Current - High Voltage Engineering

TL;DR

Learn about the basic principle, construction, and operation of an electrostatic voltmeter for measuring high AC and DC voltages.

Transcript

hello friends now let us discuss our next topic related to high ac voltage measurement that is electrostatic voltmeter let us understand the basic principle of the electrostatic voltmeter first of all the meaning of the electrostatic voltmeter is the electrical energy in the form of static is given to the circuit or to the unit where the voltmeter ... Read More

Key Insights

• 🍽️ The basic principle of an electrostatic voltmeter involves the force of attraction between parallel plates and the relationship between voltage, electric field, and force.
• ⚡ The force of attraction in an electrostatic voltmeter is used to measure both AC and DC voltages.

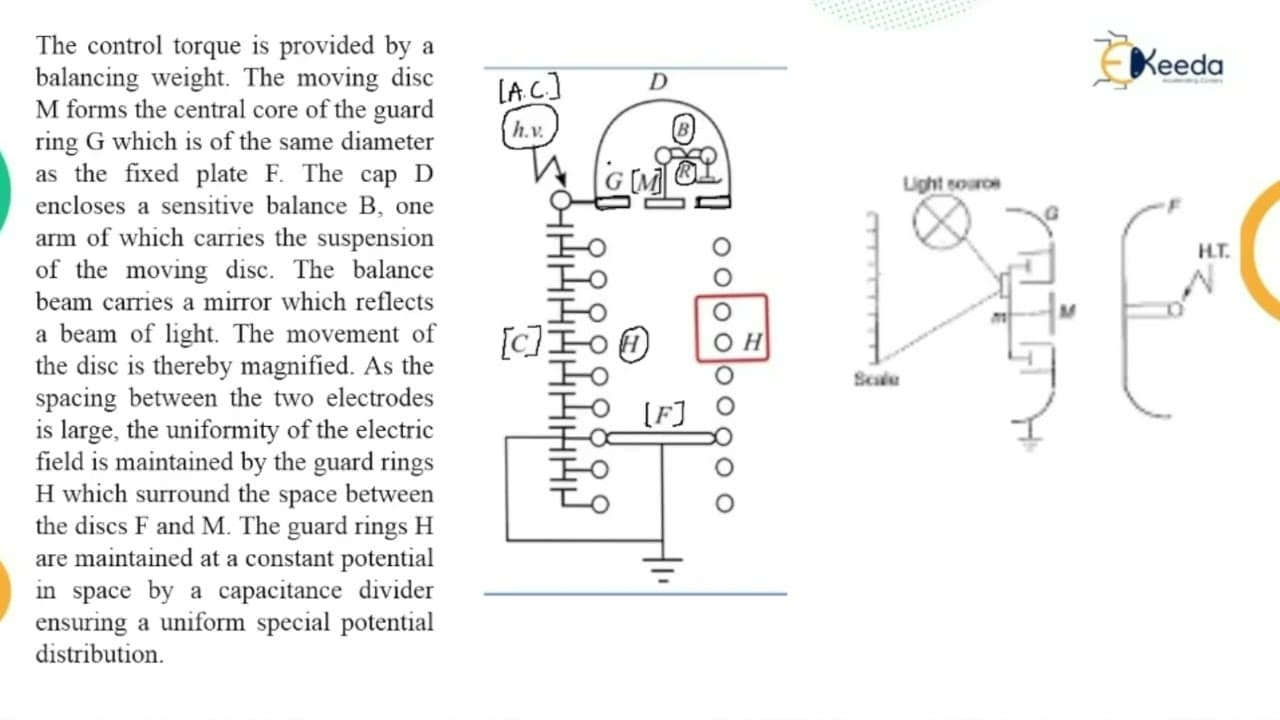

• 🪩 The construction of an electrostatic voltmeter includes parallel plate disc electrodes, a guard ring, a balancing unit, and a scale arrangement with a light source and mirror.
• ⚡ The measurement accuracy of an electrostatic voltmeter is high, with an accuracy of 0.25% for AC voltage measurement and 0.1% or less for DC voltage measurement.
• ✋ The voltmeter has a small capacitance and high insulation resistance, making it suitable for high impedance measurements.
• ⚡ The use of a light beam arrangement and moment amplification allows for precise voltage measurement.

Summary & Key Takeaways

• An electrostatic voltmeter measures the voltage in a circuit by measuring the force of attraction between two parallel plates.

• The basic principle involves coulomb's law and the relationship between electric field, voltage, and force.

• The voltmeter consists of a fixed plate and a movable plate, with the force of attraction between them used to measure the voltage.
