Controllability and Observability Problem No 3 - State Space Analysis - Control Systems

TL;DR

Learn how to check the controllability and observability of a system using the state space model, by calculating the rank of the controllability and observability matrices.

Transcript

hello friends in this video we are going to solve a problem on to uh how to check the controllability and observability of a system whose state space model is given to us so let's take a problem so a problem is we have to take the controllability and observability of the system and the state space representation of the system is given to us these a... Read More

Key Insights

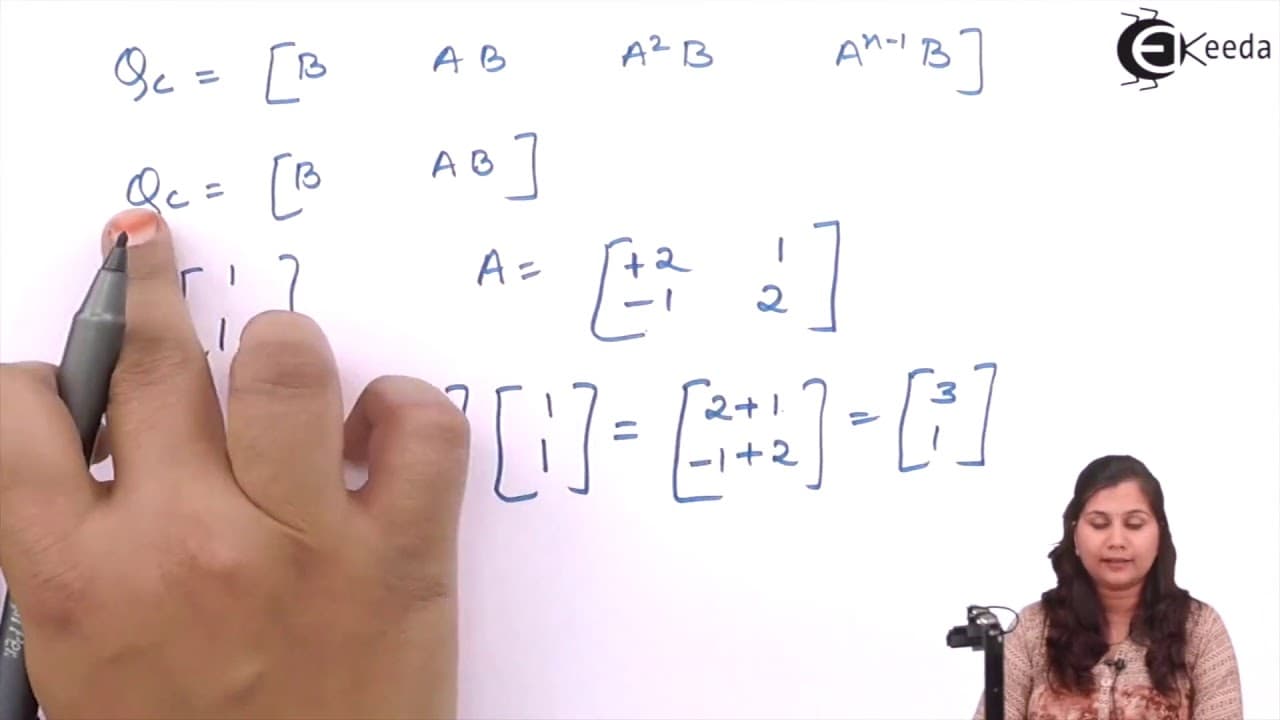

• 😜 The controllability of a system is determined by the rank of the controllability matrix, QC.
• 😜 The observability of a system is determined by the rank of the observability matrix, Q0.
• 🛰️ Both matrices are calculated by multiplying appropriate combinations of the matrices A, B, and C from the state space model.
• 😜 If the rank of either matrix is equal to the number of state variables, the system is completely controllable or observable.
• 0️⃣ If the determinant of either matrix is zero, the system is uncontrollable or unobservable.
• 👾 The state space model provides a way to analyze the behavior of a dynamic system.
• 🎮 Controllability and observability are essential properties to consider in system design and control.

Summary & Key Takeaways

• State space model equations are given, and the matrices A, B, and C are derived from them.

• Controllability is determined by calculating the controllability matrix, QC, and checking its rank.

• Observability is determined by calculating the observability matrix, Q0, and checking its rank.
