Bipolar Junction Transistors - Common Emitter Amplifier

TL;DR

This video explains the functioning of bipolar junction transistors (BJTs), including the difference between npn and pnp transistors, as well as the common emitter configuration of BJT amplifiers.

Transcript

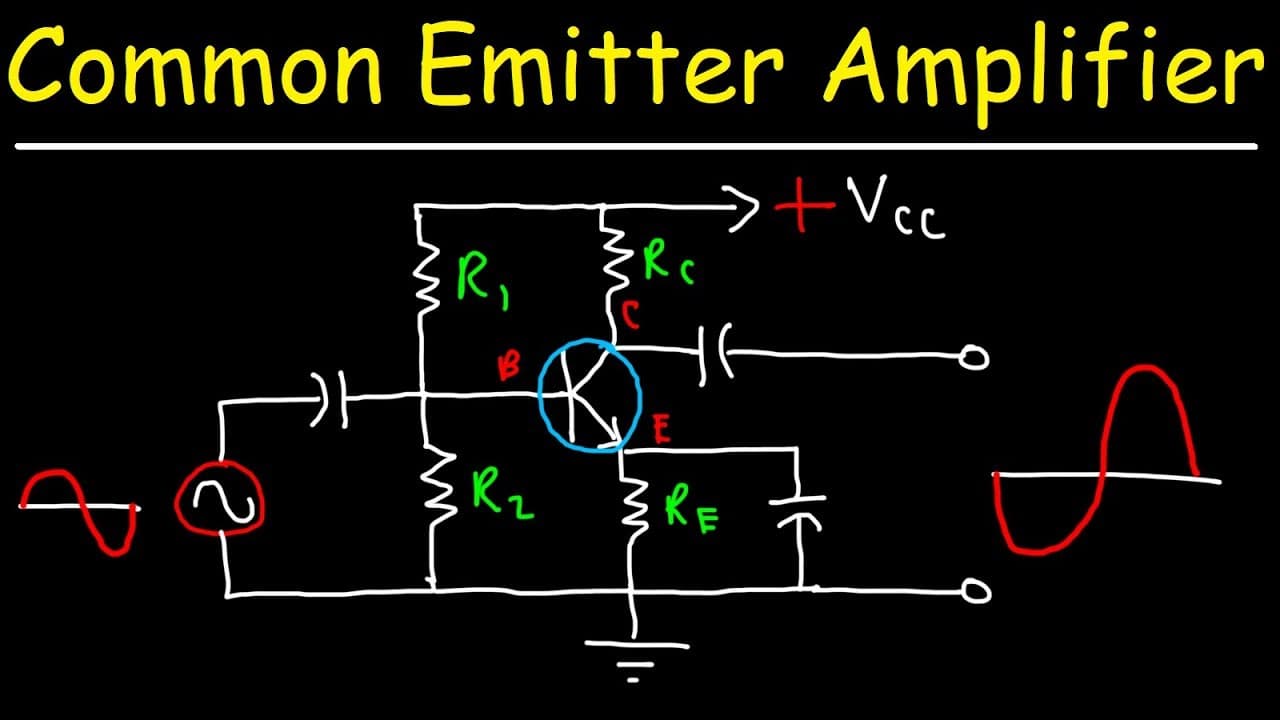

in this video we're going to focus on bipolar junction transistors as well as the common emitter configuration of bjt amplifiers so let's start with the picture that we have on the board this is an npn transistor you could easily distinguish an npn transistor from a piping transistor by looking at the direction of the arrow this is the emitter part... Read More

Key Insights

• 💘 Npn and pnp transistors differ based on the direction of the arrow on the emitter.
• ⚾ Beta determines the relationship between the collector current and the base current in a transistor.
• ✋ The common emitter configuration offers high power gain but inverts the input signal by 180 degrees.
• 😒 The common emitter amplifier uses resistors and capacitors to achieve amplification and block DC signals.
• 🉐 Power gain can be calculated by multiplying the voltage gain and current gain.
• ✋ The common emitter amplifier is suitable for applications where high power gain is desired.
• 💐 Npn transistors require base current flowing into the transistor, while pnp transistors require base current flowing out of the transistor.

Summary & Key Takeaways

• An npn transistor can be distinguished from a pnp transistor by the direction of the arrow on the emitter. A small base current activates the transistor, causing a larger current to flow from the collector.

• Beta (β) is the ratio of collector current to base current and determines the amplification capability of the transistor.

• The common emitter configuration is a transistor amplifier with the input signal applied to the base and output signal taken from the collector. It offers high power gain but inverts the input signal.
