Microwave Bench setup | Introduction | Microwave Engineering | Lec-117

TL;DR

The video explains the components and functions of a microwave bench setup for measuring various parameters.

Transcript

hi everyone in this video I am going to introduce the bench setup at microwave so we call it as microwave bench setup used to measure different different parameters like vswr power attenuation wave guide and wavelength and impedance Okay so microwave bench setup is used to find different microwave parameters microwave bench setup bench setup is not... Read More

Key Insights

• ℹ️ The microwave bench setup comprises essential components arranged from source to load, enabling various measurements in microwave engineering.
• 🤩 Key parameters assessed include power, wavelength, attenuation, VSWR, phase shift, frequency, and impedance, vital for microwave applications.
• ✊ The isolator prevents reflected power from damaging the microwave source, maintaining operational integrity in the setup.
• 📶 A variable attenuator allows users to adjust signal strength, facilitating more accurate experiments and measurements.
• 🤒 Frequency meters help identify resonant frequencies by indicating output variations, crucial for signal analysis.
• 🫥 Slotted line carriages are instrumental in coupling power and assessing waveforms within the microwave system.
• ✊ VSWR is a critical measurement indicating the efficiency of power transmission in microwave setups, relevant for system performance evaluation.

Questions & Answers

Q: What is the main purpose of a microwave bench setup?

The microwave bench setup is designed to measure various parameters within microwave engineering, including power, wavelength, attenuation, VSWR, frequency, phase shift, and impedance. This arrangement facilitates accurate data collection and analysis, which is crucial in developing and testing microwave systems and components.

Q: Why is an isolator important in the microwave bench setup?

An isolator is crucial because it prevents any reflected power from returning to the microwave source, which could potentially damage it. It ensures that the energy flows in only one direction, thus avoiding standing waves caused by impedance mismatches and protecting the overall integrity of the microwave setup.

Q: How does a variable attenuator function in the microwave bench?

A variable attenuator serves to adjust the power levels within the microwave setup. By rotating its dial, users can either increase or decrease attenuation, effectively controlling the signal strength. This tuning capability allows for precise adjustments tailored to the requirements of specific experiments or measurements.

Q: What role does a frequency meter play in the microwave setup?

A frequency meter measures the frequency of incoming microwave signals. As users rotate its knob, the device indicates variations in frequency, allowing users to find the resonant frequency by identifying points of significant output current changes. This measurement is vital for understanding the characteristics of the microwave signals.

Q: Can you explain the function of a slotted line carriage in this setup?

The slotted line carriage is used to couple power from the transmission line to other devices for measuring the waveforms traveling within the waveguide. By inserting a portion into a coupling area, it allows for the evaluation of parameters related to power transmission, enabling precise analysis of the microwave signals.

Q: What is VSWR, and why is it significant in this context?

VSWR, or Voltage Standing Wave Ratio, measures how efficiently RF power is transmitted from a power source through a transmission line to a load. Its significance lies in determining how much of the power is reflected due to impedance mismatches, which can affect performance and efficiency in microwave systems.

Summary & Key Takeaways

• The microwave bench setup is a collection of components designed to measure microwave parameters such as power, wavelength, and VSWR.

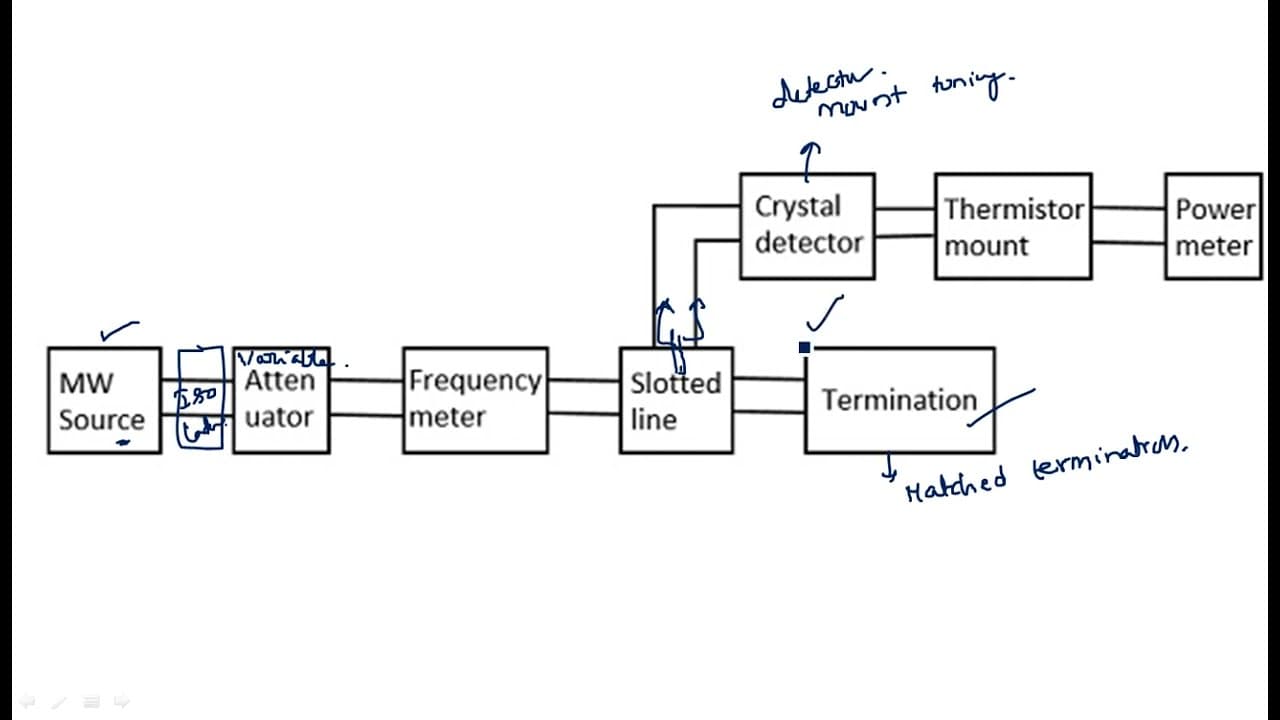

• Key components include a microwave source, isolator, variable attenuator, frequency meter, and detector, each serving specific functions in the setup.

• Understanding each component's role is essential for accurately measuring and analyzing different parameters in microwave applications.
