How to Convert 4-Bit Binary to BCD Format

TL;DR

To convert a 4-bit binary number to Binary Coded Decimal (BCD), represent values from 0 to 9 as single digits. For numbers greater than 9, split them into two BCD digits, requiring a total of five bits for the output. Understanding and designing a circuit for this conversion involves creating a truth table and applying combinatorial logic.

Transcript

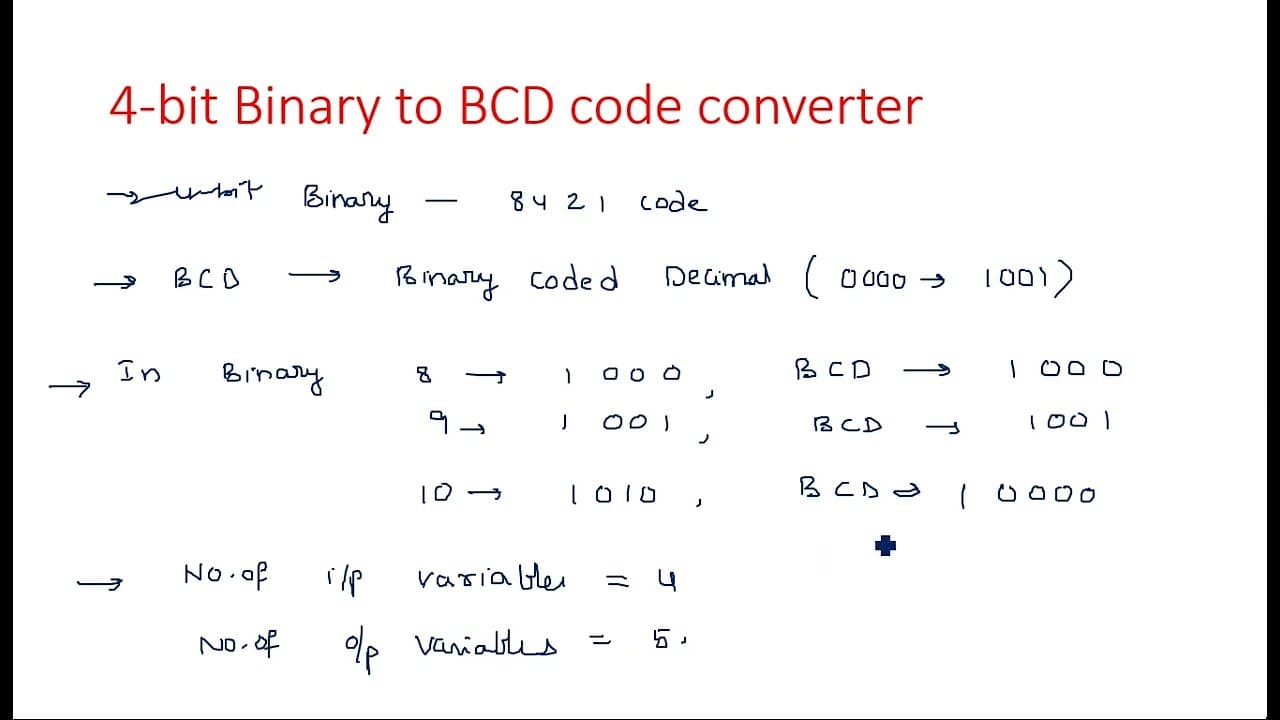

hi everyone in this video I'm going to explain about 4bit bind to BCD code converter so 4bit binary number is nothing but normal 8421 code whereas BCD code is nothing but 0 to 9 it is normal to the binary code whereas greater than 9 then it will be splitted into two digits okay so 4bit binary here orbit binary nothing but 8421 code 4bit bind is not... Read More

Key Insights

• 👶 BCD is limited to single-digit decimal representation, necessitating a new format for numbers exceeding 9.
• 😑 The standard binary representation can express larger numbers, while BCD design requires careful bit allocation.
• 😑 Design of digital circuits for conversion requires both a truth table and logical expressions based on inputs and outputs.
• ❓ The conversion process blends combinatorial logic with sequential output to achieve accurate representations.
• 🈸 Understanding the characteristics of BCD is essential for applications involving financial and numerical displays.
• 💐 The logic circuit for conversion incorporates multiple gates and functions to facilitate proper data flow.
• 🍁 Knowledge of Karnaugh maps (K-maps) assists in simplifying logical expressions, making circuit design more efficient.

Questions & Answers

Q: What is the significance of BCD in digital electronics?

BCD, or Binary Coded Decimal, is significant in digital electronics as it allows for binary representation of decimal numbers, particularly useful for applications requiring decimal output from binary systems. By representing decimal digits individually, BCD simplifies the conversion process and interface between human-readable numbers and digital systems, facilitating calculations and displays in numerical forms.

Q: How does the representation of numbers differ between binary and BCD?

In binary representation, numbers are expressed using powers of 2, capable of representing values beyond 9 without limitation. Conversely, BCD limits numbers to a single digit, requiring additional digits and more bits to express values greater than 9. For instance, the binary number for 10 is 1010, while in BCD it is represented as 0001 0000, with each digit being represented independently.

Q: What is the role of the truth table in designing a binary to BCD converter?

The truth table plays a crucial role in designing a binary to BCD converter as it outlines the relationship between binary inputs and their corresponding BCD outputs. By clearly displaying these relationships, designers can utilize logic functions and circuits to implement the conversion process accurately, ensuring that all potential input combinations are accounted for in the design.

Q: Why does the BCD representation exceed four bits during conversion?

BCD representation exceeds four bits during conversion because it can only hold values from 0 to 9 in a 4-bit format. Once the input binary number exceeds this range, more bits are needed for accurate representation. Consequently, to convert binary numbers like 10 or greater into BCD, a five-bit format is required, which can accommodate the two-digit representation necessary for sums beyond 9.

Summary & Key Takeaways

• The video discusses the conversion of 4-bit binary numbers to Binary Coded Decimal (BCD), emphasizing that BCD can only represent values from 0 to 9 as single digits.

• It explains the representation of binary digits for numbers greater than 9, which must be split into two BCD digits, requiring five bits in total for the output.

• The video also covers the process of creating a truth table and a logic circuit for the binary to BCD conversion using Sum of Products (SOP) methodology.
