The Structures That Defy Gravity

TL;DR

Discover awe-inspiring structures that seem to defy gravity, including a cantilevered sky garden, an unfinished tower, a glass skywalk, a museum perched on a mountain, and a headquarters with a massive cantilever.

Transcript

while most conventional structures are designed with a clearly defined center of mass advancements in engineering construction materials and building techniques have allowed some architects and engineers to conceive a range of awe-inspiring structures that seemingly reject the laws of physics despite each of these schemes appearing unsettling at fi... Read More

Key Insights

• 👻 Advances in engineering and construction materials have allowed architects and engineers to create structures that seemingly defy the laws of physics.
• 👣 Cantilevers have become a popular architectural feature, extending buildings beyond their footprints.
• 🏋️ Steel has been used as a substitute for concrete in certain projects to overcome weight limitations.
• ❓ Structures in natural wonders like the Grand Canyon offer thrilling experiences while ensuring structural stability.
• 🏛️ Museums and headquarters buildings incorporate innovative design elements to blend with their surroundings and withstand seismic forces.

Questions & Answers

Q: How does the cantilevered sky garden in Sydney's One Central Park work?

The sky garden extends 42 meters beyond the tower's footprint, supported by a steel truss system. It features a reflective heliostat with motorized mirrors to bring in natural light and LED lights for a vibrant nighttime display.

Q: Why did the Montreal Tower have to be constructed using steel instead of concrete?

The tower was initially planned to be built entirely with concrete but was found to be too heavy to support itself. Construction resumed after the 1976 Olympics, using steel to reach a height of 175 meters.

Q: How is the structural stability of the Grand Canyon Skywalk ensured?

The skywalk utilizes anchored beams and footings, along with tuned mass dampers to mitigate vibrations caused by wind and pedestrian loads. It has a capacity of 822 people but allows only 120 people on the platform at a time.

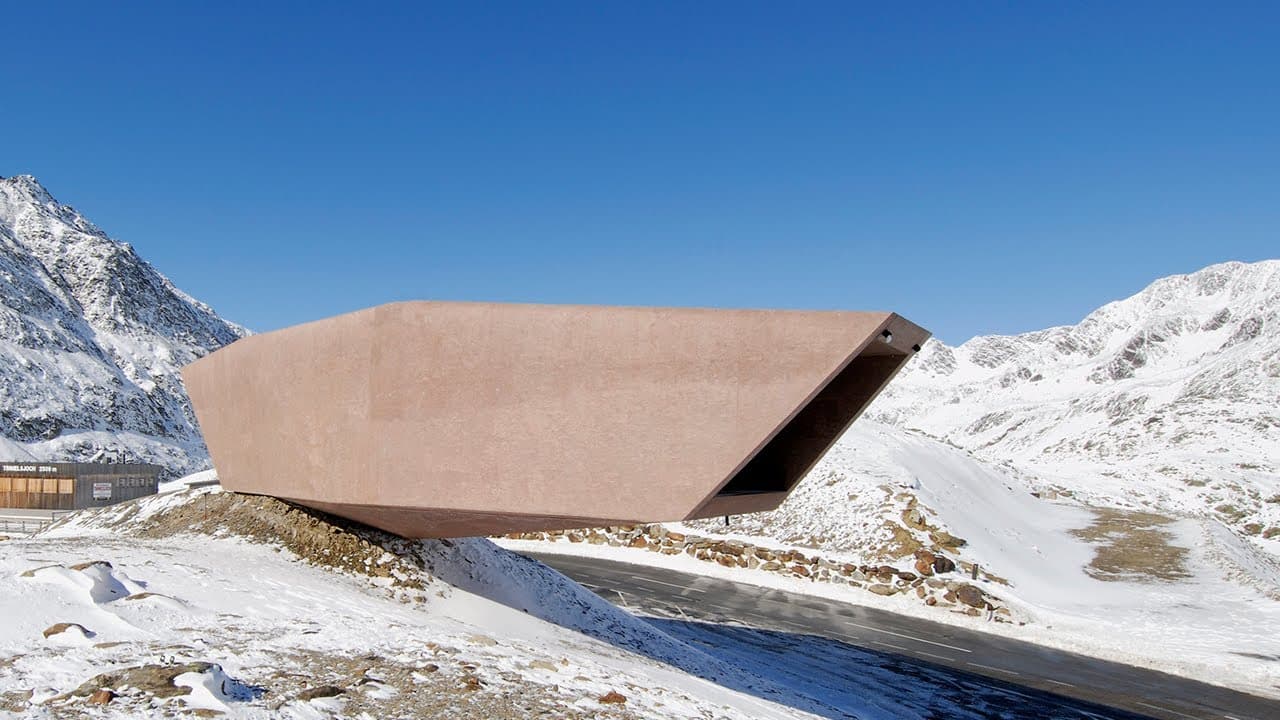

Q: What is unique about the Museum of Tyrol's construction?

The museum cantilevers 16 meters from the mountain, with its foundations buried below ground as a counterweight. The cement used in construction was blended with rocks and pigments from the surrounding area for integration with the landscape.

Summary & Key Takeaways

• Sydney's One Central Park features a twin tower development with a cantilevered sky garden and a reflective heliostat, bringing natural light into the space between the buildings.

• The Montreal Tower, originally planned to be built with concrete, had to be constructed using steel due to weight limitations, making it the tallest incline structure in the world.

• The Grand Canyon Skywalk is an adrenaline-inducing platform that cantilevers over the edge of the Grand Canyon, supported by anchored beams, footings, and dampers.

• The Museum of Tyrol and the CMG Headquarters in Beijing both showcase impressive cantilevers, with the former blending into its surroundings and the latter utilizing a unique dire grid exoskeleton for structural stability.
