Circulator | S matrix Paramters | Microwave Engineering | Lec-76

TL;DR

This video explains the S Matrix parameters of a circulator device.

Transcript

hi everyone in this video I'm going to explain about SM Matrix parameters of circulator so circulator is nothing but it is a multi-port device which transfers the power either in the clockwise direction or in anticlockwise direction to the next succeeding Port okay suppose if it is a four port circulator this is one port this is one another Port th... Read More

Key Insights

• 💐 Circulators are utilized in RF applications to manage signal flow directionally without interference among ports.
• 🎅 The S Matrix of a four-port circulator consists of 16 parameters but can be simplified due to specific matching and reciprocity properties.
• 🌸 Isolation among ports ensures that the circulator can effectively switch signals without reflection losses.
• 🎅 Understanding how to compute S Matrix parameters is crucial for designing and optimizing circulator applications in telecommunications.
• 🌸 The circulator's performance is dictated by the precise matching of its ports, which helps in minimizing signal loss during transmission.

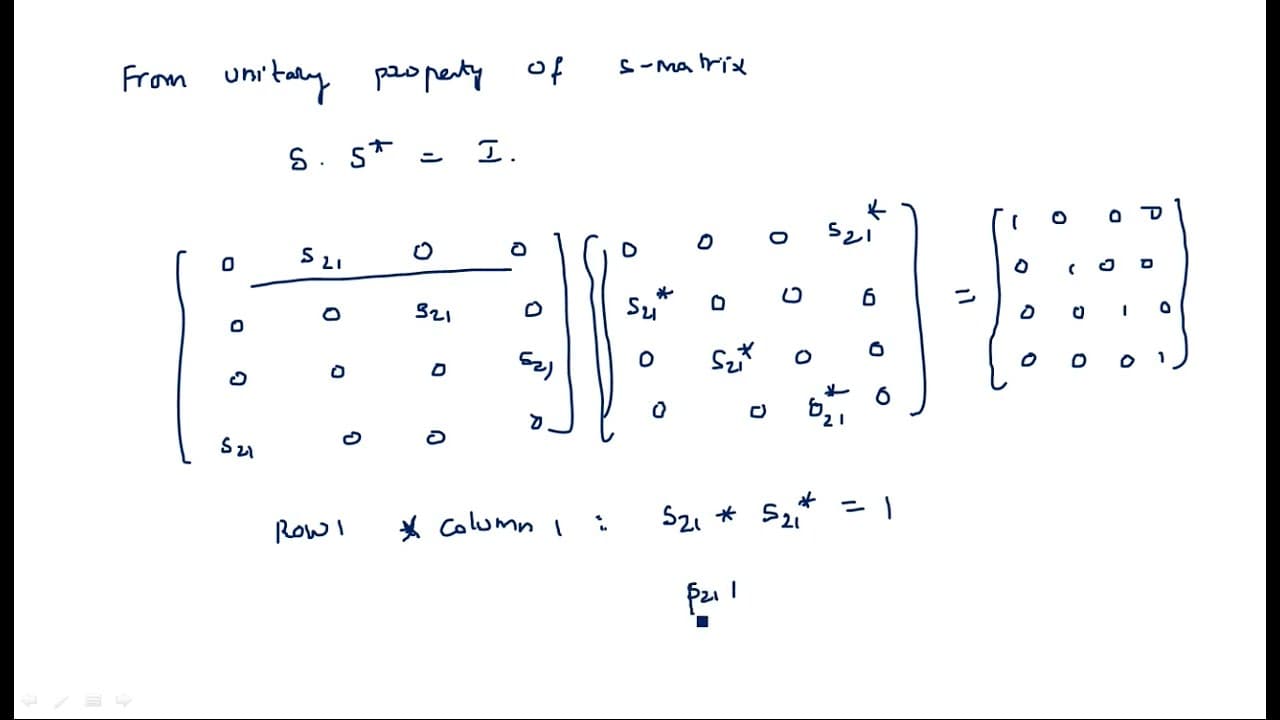

• 🎅 The unitary property of the S Matrix offers a fundamental approach to derive valuable relationships among various matrix elements.
• 🦻 Properties such as zero-out conditions for specific parameters streamline circuit analysis significantly, aiding in efficient design.

Questions & Answers

Q: What is a circulator, and how does it operate?

A circulator is a multi-port device that transfers power between ports either in a clockwise or anticlockwise direction. When a signal is input at one port, it exits through the next port in the specified direction while isolating the other ports from the signal. This unique feature enables the circulator to effectively manage RF signals in various applications like telecommunications.

Q: How is the S Matrix structured for a circulator with four ports?

For a four-port circulator, the S Matrix is a 4x4 square matrix comprising 16 parameters. The structure includes terms representing the transmission and reflection coefficients for each pair of ports. Due to the circulator's unique behavior and symmetry, many of these parameters can be determined based on properties like matching conditions and reciprocity, leading to simplifications in the matrix.

Q: What significance do the S Matrix properties hold in analyzing a circulator?

The properties of the S Matrix significantly reduce computational efforts when analyzing a circulator. For instance, when all ports are perfectly matched, certain reflection coefficients equal zero, simplifying the matrix. Moreover, if the ports are reciprocal, additional relationships can be established, allowing for fewer parameters to be evaluated, enhancing efficiency in circuit design.

Q: Why is the circulator considered a non-reciprocal device?

A circulator is deemed non-reciprocal because it does not allow signals to pass in both directions between its ports. For instance, when power flows from port one to port two, it cannot flow back from port two to port one. This characteristic is essential in applications where isolation and controlled signal routing are necessary.

Summary & Key Takeaways

• The circulator is a multi-port device that channels power in a specific direction, either clockwise or anticlockwise, ensuring isolation between ports.

• The S Matrix represents the behavior of the circulator, particularly how it interacts with input and output across its various ports, showcasing its lossless and non-reciprocal nature.

• Key properties of the S Matrix reduce the number of calculations needed for understanding its parameters, leveraging matching conditions among ports to simplify complex relationships.
