MTI Radar || Block Diagram || Power Oscillator Transmitter | Radar Systems | Lec-34

TL;DR

MDA radar utilizes power oscillators for targeting moving objects amidst static noise.

Transcript

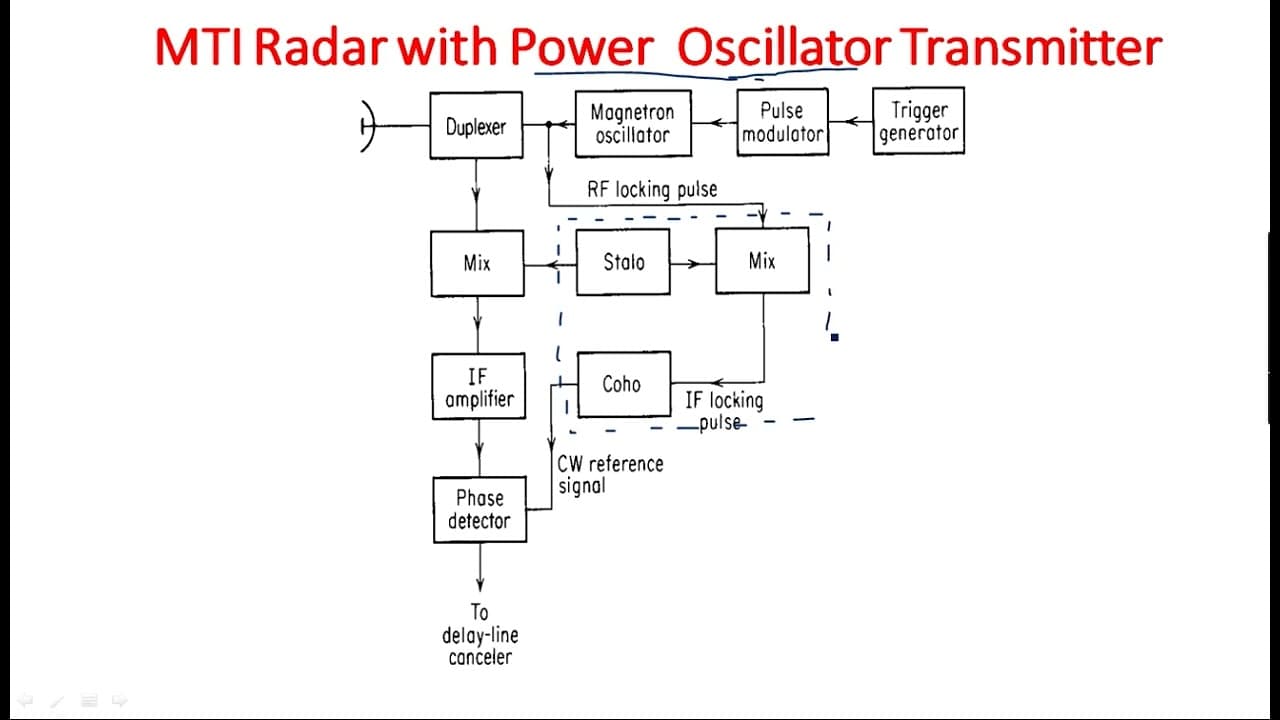

hi everyone in this video I am going to explain about MDA radar with power oscillator transmitter empty radar with power oscillator transmitter in the previous video I told you already MTA radar stands for MTA radar stands for moving Target indicator moving Target indicator these two are especially designed to identify the moving targets among stat... Read More

Key Insights

• 🖐️ The MDA radar system plays a pivotal role in distinguishing moving targets using specific technology designed to filter out static signals.
• 🚫 Understanding the functions of block components in radar systems is crucial for proper diagnosis and interpretation in practical applications.
• 😒 The use of power oscillator transmitters simplifies radar design by negating the need for external signal sources, enhancing system reliability.
• 🤢 Effective radar operation depends heavily on the precise synchronization of transmitted and received signals through mechanisms such as RF locking pulses.
• ✊ The differences between power oscillator and power amplifier configurations are significant, affecting operational efficiency and complexity.
• 🫥 Accurate interpretation of radar data is achieved through components like the delay line canceler that enhance the visual representation of moving targets.
• ⌛ The presence of Doppler frequency shifts is vital for identifying the motion of objects in radar technology, particularly for applications requiring real-time tracking.

Questions & Answers

Q: What is the primary function of MDA radar?

The primary function of MDA radar, or Moving Target Indicator (MTI), is to identify moving targets among stationary clutter. This is particularly useful for applications like aircraft tracking or surveillance, where differentiating between static objects and moving ones is crucial for accuracy and effectiveness.

Q: How does a power oscillator differ from a power amplifier in radar systems?

A power oscillator, such as a magnetron, generates its own signals without needing an external source, making it a self-sufficient component in radar systems. In contrast, a power amplifier, like a klystron, requires a signal input to amplify, serving only to boost the power of an already existing signal.

Q: Why is RF locking pulse important in radar operation?

The RF locking pulse is critical for aligning the frequency of the receiver with the transmitted signal, compensating for variations in oscillation periods in devices like the magnetron oscillator. This ensures accurate detection and elimination of the transmitted frequency from the received signals, allowing for clear identification of moving targets.

Q: What role does the delay line canceler serve in the radar system?

The delay line canceler converts bipolar video patterns into unipolar patterns, which is essential for display on devices like Plan Position Indicators (PPI). This transformation eliminates alternating current components that cannot be effectively displayed, allowing for clearer visuals of detected targets.

Summary & Key Takeaways

• MDA Radar, specifically the Moving Target Indicator (MTI), is designed to detect moving targets in the presence of stationary clutter using pulse modulated signals.

• There are two types of empty radars: those utilizing power amplifier transmitters and those with power oscillator transmitters, which generate their own signals without reliance on external devices.

• The presented block diagrams for both types of radars appear similar, but they differ in signal direction and the components used, which can lead to misunderstandings during examinations.
