Multi-vibrators | Introduction | Pulse Digital Circuits ( PDC ) | Lec-42

TL;DR

This video explains the concept and types of multivibrators used in electronics.

Transcript

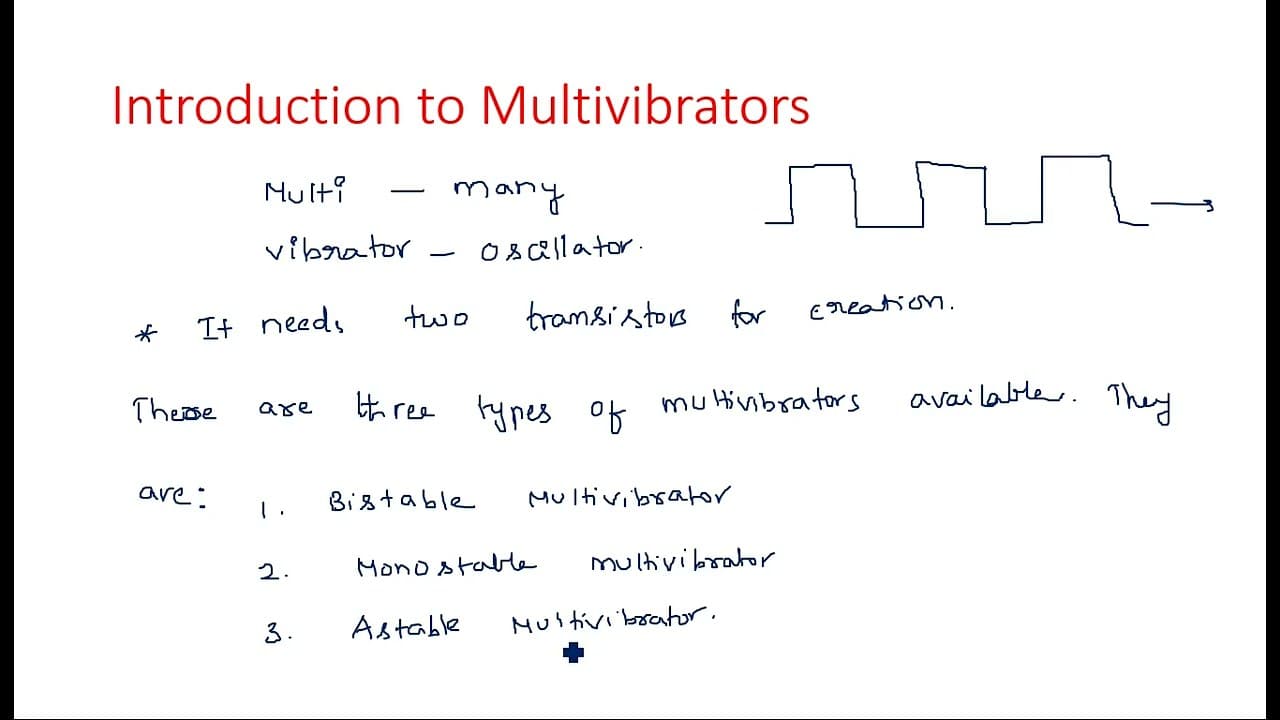

hi everyone in this video you are going to learn about the introduction of multivibrators so what do you mean by multivibrator multi vibrator you might know oscillator okay multivability is also and oscillator but here multi means if you separate the word multivibrator it consists of multi and second word is vibrator multi vibrator multi means Mini... Read More

Key Insights

• 🈸 Multivibrators generate oscillations and are crucial for various electronic circuits and applications.
• 😃 The three primary forms (bi-stable, monostable, a-stable) cater to different operational needs based on their stability characteristics.
• 😃 Bi-stable multivibrators maintain two distinct states and rely on external triggers for state changes, offering versatility in storage elements.
• 💗 Monostable multivibrators have a temporary state and are primarily used for pulse generation, demonstrating the effect of triggering on state duration.
• ⏰ A-stable multivibrators continually oscillate between quasi-stable states without external input, showcasing the potential for creating clock signals.
• 🎨 The design and configuration of multivibrators can significantly impact the timing and frequency of output signals in circuits.
• 💗 Knowledge of triggering pulses is essential for effectively manipulating transistor states in multivibrator applications.

Questions & Answers

Q: What is the primary function of a multivibrator in electronics?

The primary function of a multivibrator is to generate continuous oscillations or signals, such as square or pulse waveforms. It serves various applications in digital circuits, timing, and signal generation. The multivibrator achieves this by employing two transistors that alternate between on and off states, creating the desired output waveform.

Q: How are the bi-stable, monostable, and a-stable multivibrators categorized?

Bi-stable multivibrators have two stable states, where the output remains stable until an external triggering pulse is applied. Monostable multivibrators have one stable and one quasi-stable state, where the output returns to the stable state after a short duration following a triggering pulse. A-stable multivibrators lack stable states altogether, oscillating between two quasi-stable states without the need for a triggering pulse.

Q: What is a triggering pulse, and what role does it play in multivibrators?

A triggering pulse is a brief external signal that alters the state of the transistors in a multivibrator. In bi-stable and monostable configurations, it is essential for transitioning between states, allowing for controlled changes in output. The nature of the triggering pulse, often generated by filters, ensures precise timing and state changes in the multivibrator's operation.

Q: Can you explain the behavior of the bi-stable multivibrator?

In a bi-stable multivibrator, there are two transistors that operate in a complementary manner, maintaining two stable states. One transistor remains on while the other is off, and this configuration persists indefinitely until disturbed by a triggering pulse. When such a pulse is applied, the transistors switch their states, resulting in a change of output, which can also remain stable until the next trigger is applied.

Q: How does a monostable multivibrator differ from a bi-stable multivibrator?

A monostable multivibrator features one stable state and one quasi-stable state, meaning it will return to its stable state after a brief interval when a triggering pulse is applied. In contrast, the bi-stable multivibrator can hold one of its two states indefinitely until another triggering pulse initiates a change. The monostable multivibrator's quasi-stable state exists only temporarily, making it useful for pulse width modulation or timing applications.

Q: What makes the a-stable multivibrator unique compared to the other types?

The a-stable multivibrator operates without stable states, continuously oscillating between two quasi-stable states. It does not require any external triggering pulse to change states; instead, it self-oscillates, providing a periodic output. This characteristic makes it ideal for generating square waves and clock pulses in various digital circuits or oscillators.

Summary & Key Takeaways

• Multivibrators are electronic circuits that generate oscillations, producing continuous waveforms such as square or pulse signals, utilizing two transistors for operation.

• There are three main types of multivibrators: bi-stable, monostable, and a-stable, each serving different applications and having unique behaviors regarding stability.

• The video elaborates on the behavior of each multivibrator type, detailing their stable and quasi-stable states, along with the triggering conditions required for changing states.
