Controllability | Example | CS | Control Systems | Lec-126

TL;DR

This content explains how to test the controllability of a system using state matrices and input matrices.

Transcript

hello everyone we should discuss one problem here here the problem is check the controllability of the system so he directly asking the controllability controllability is related to input just keep even keep in your mind and controllability is related to input and whatever observability observability is related to output by using that we can use th... Read More

Key Insights

• 🔠 Controllability relates directly to the input matrix, determining how well the system can be influenced by control inputs.
• ❓ The state transition matrix is foundational in representing system dynamics, crucial for analyzing controllability.
• 🆎 The controllable matrix is constructed from the series of products B, AB, and A²B, guiding the analysis of the system's ability to be controlled.
• 0️⃣ If the determinant of the controllable matrix is not zero, the system is fully controllable, indicating all states can be reached from any initial condition.
• ❓ Quick methods exist for calculating state matrices, enhancing efficiency in analysis without extensive computational steps.
• ❓ Understanding the relationship between observability and controllability is essential, as they both address different aspects of system behavior and dynamics.
• 🎮 Properly determining controllability enhances the design of control systems, ensuring stability and desired performance in engineering applications.

Questions & Answers

Q: What is the significance of controllability in systems?

Controllability determines whether a system's state can be modified through its inputs. If a system is controllable, it implies that all states can be reached with appropriate control inputs, making it crucial for design and analysis in control theory.

Q: How do you form the state transition matrix?

The state transition matrix is formed by representing the system dynamics in a matrix format, typically starting with the differential equation or transfer function. For instance, creating an equation like s³ + 2s² + 3s + 4 helps facilitate the derivation of the state matrix.

Q: Can you explain the role of the input matrix in controllability?

The input matrix represents how inputs affect the system states. Its configuration is critical for determining whether each state can be influenced by the available inputs, which is essential for evaluating overall system controllability.

Q: What steps are involved in calculating the controllable matrix?

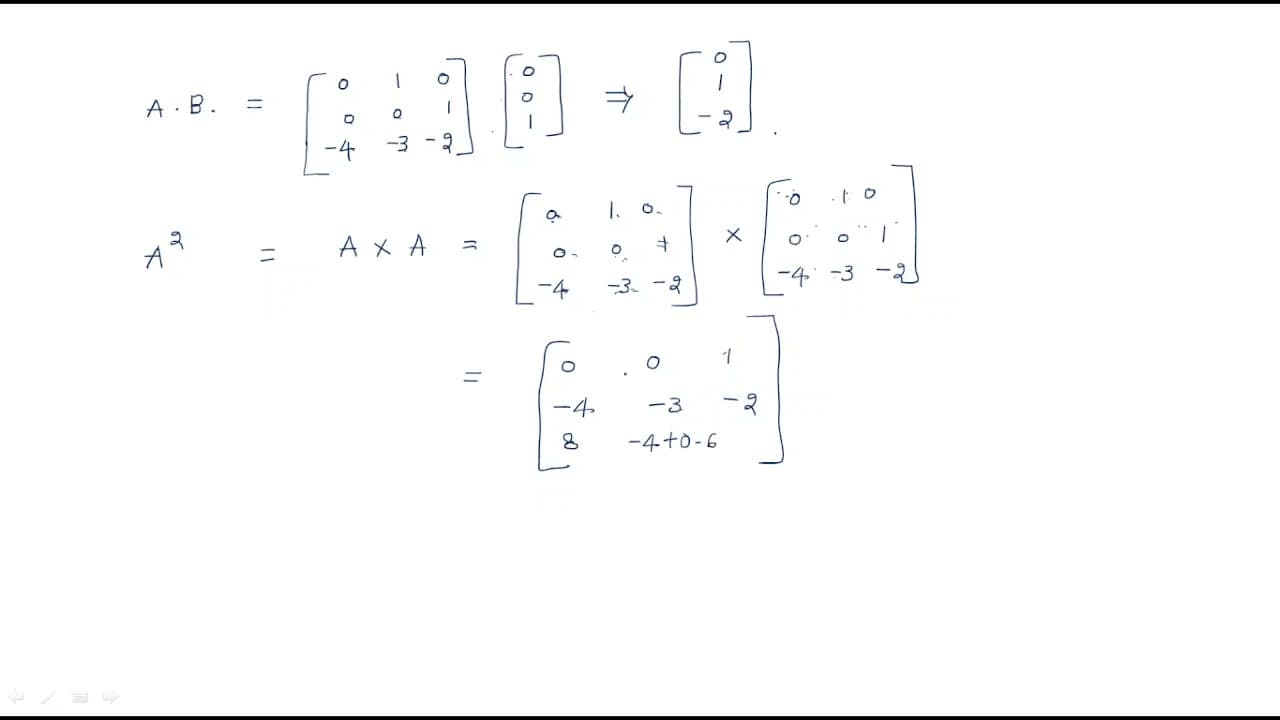

To compute the controllable matrix, we need to calculate matrices B, AB, and A²B sequentially. The controllable matrix is then formed using these matrices. The calculations enable us to assess the rank, which indicates if the system is controllable based on the determinant evaluations.

Summary & Key Takeaways

• The discussion focuses on the concept of controllability in systems, emphasizing its relationship with the input matrix and state transition matrix.

• The process involves deriving the state matrix and input matrix, followed by calculating the controllable matrix to assess system controllability.

• The key conclusion is that if the modulation of the controllable matrix does not equal zero, the system is deemed 100% controllable.
