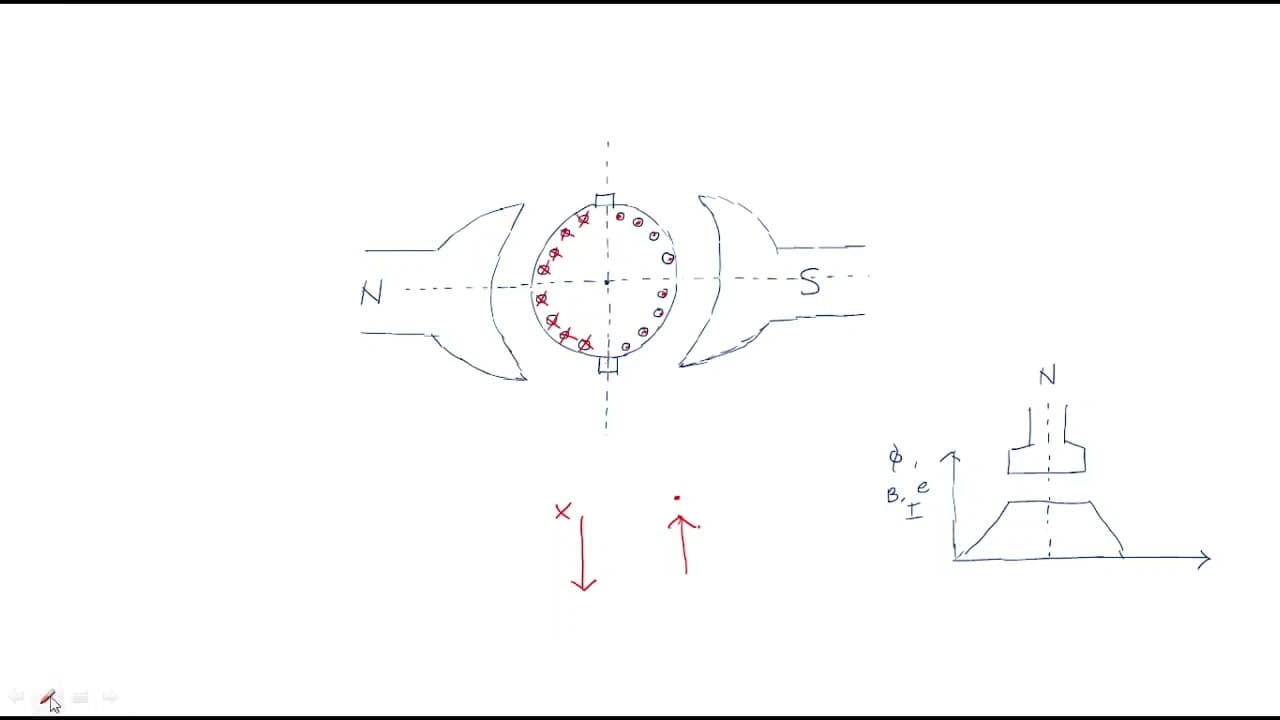

hello everyone in this session we will discuss the next topic is armature reaction so name itself armature reaction so armage reacted reacted means it works opposites so first what is the definition look at here the effect of armature flux the effect of armature flux on main feed flux is called as r major reaction so generally you know that in dc g... Read More

Key Insights

• 🏑 Armature reaction in DC generators can both enhance and diminish field strength according to current direction and load conditions.
• ✊ The armature current not only supplies power to external loads but also modifies the magnetic field inside the generator.
• 🥺 Distortion of the air gap flux due to armature reaction can lead to mechanical stress and sparking, posing safety risks.
• 🥺 Differentiating between leading and trailing pole trip conditions helps in understanding the operational dynamics and impacts on flux behavior.
• 🌸 Effective management of armature reaction is essential in design for reducing losses and improving overall efficiency of DC generators.
• ❓ The visualization of flux paths and their interactions is crucial for diagnosing issues related to performance and reliability in generator operations.
• ✊ The balance between demagnetization and magnetization affects the stability and performance of generated electrical power.

Questions & Answers

Q: What is the definition of armature reaction?

Armature reaction refers to the impact of the armature flux generated in a DC generator on the main field flux. It describes how the armature current produces its own magnetic field, which can either assist or oppose the main field’s strength, significantly affecting the generator's overall performance and efficiency.

Q: What are the primary effects of armature reaction in a DC generator?

The primary effects include cross magnetization, which distorts the air gap flux and leads to sparking at brushes, and demagnetization, which results in a reduction of the main field flux, impacting generator efficiency. Both effects can hinder optimal generator function, necessitating careful consideration in design and operation.

Q: How does cross magnetization occur in a DC generator?

Cross magnetization occurs when the armature flux interacts with the main field flux, causing a distortion in the air gap flux shape. This distortion can lead to dangerous sparking at the brushes, which collect current. When the armature generates flux in an opposing direction, it magnifies these effects, requiring mitigation strategies.

Q: How do leading and trailing pole trips affect flux in a generator?

Leading pole trips cause a decrease in flux, known as demagnetization, as the opposing armature flux and field flux conflict. Trailing pole trips, on the other hand, lead to an increase in flux, referred to as magnetization, enhancing output. Understanding these phenomena is crucial for effective generator management.

Q: Why is it important to understand armature reaction for generator efficiency?

Understanding armature reaction is vital because it influences both magnetization and demagnetization processes in a generator. Knowing how armature effects impact flux density can aid in optimizing generator design, improve performance, and reduce issues like sparking, ensuring a more reliable and efficient electrical output.

Summary & Key Takeaways

• The armature reaction is the effect of armature flux on the main field flux in DC generators, where armature current generates its own flux.

• The interaction between the armature flux and the main field flux can lead to two primary effects: cross magnetization, resulting in distortion and sparking at brushes, and demagnetization, causing a reduction in overall flux.

• Understanding the conditions leading to magnetization and demagnetization is crucial for optimizing performance in DC generators, as proper management can enhance generator efficiency.
