Bi-stable Multi-vibrators | Fixed Bias | Part-2/3 | Pulse Digital Circuits ( PDC ) | Lec-44

TL;DR

This video explains the characteristics and features of fixed bias in bistable multivibrators.

Transcript

hi everyone in this video I am going to explain about the characteristics and the required features of this fixed bias by stable multivibrator in the previous video we have started the discussion of this by stable multivibrator with the fixer bias configuration I told you already there are two configurations in this bicycle multivibrator fixed bias... Read More

Key Insights

• ❓ Understanding the fixed bias configuration is essential to ensure the stable operation of bistable multivibrators.
• ❓ Proper selection of resistor values significantly affects the collector currents and the overall performance of the multivibrator circuit.
• 😒 The loading effects of connected circuits can destabilize the operation, necessitating the use of diodes for stabilization.
• ⚡ Bistable multivibrators must maintain distinct voltage levels for transistors to ensure reliable switching.
• ⚡ Knowledge of transistor saturation and cutoff voltage thresholds is crucial for designing effective switching circuits.
• ⚡ The output voltage swing is critical for evaluating multivibrator performance and ensuring that it can drive other circuits effectively.
• ❓ Component selection in fixed bias configurations involves careful considerations of current directions and resistance values.

Questions & Answers

Q: What is the significance of the fixed bias configuration in bistable multivibrators?

The fixed bias configuration is crucial for establishing stable operating states in bistable multivibrators. It ensures that one transistor remains in saturation while the other is in cutoff, allowing for reliable switching between two stable states. This configuration relies on precise component selection, including biasing resistors and collector resistors, to maintain the desired performance.

Q: How do you calculate collector current in a fixed bias bistable multivibrator?

The collector current (IC) in a fixed bias configuration can be calculated using the formula IC = VCC / RC, where VCC is the supply voltage and RC is the collector resistor. This relationship highlights how the current flow through the transistor is influenced by the chosen resistor values, emphasizing the importance of selecting appropriate components to achieve the desired collector current.

Q: What role do diodes play in mitigating loading effects in bistable multivibrators?

Diodes are used in bistable multivibrators to avoid undesirable loading effects that could lead to instability in the operating states. When external circuits are connected, these diodes prevent back-feeding issues by maintaining the voltage levels necessary for transistors to stay in their desired saturation and cutoff regions, ensuring consistent and reliable switching behavior.

Q: What are the key voltage specifications for transistors in cutoff and saturation states?

For transistors to function correctly in cutoff, the base-emitter voltage (VBE) must be less than or equal to 0 volts for silicon and less than or equal to -0.1 volts for germanium. In saturation, the base-emitter voltage should be around 0.7 volts for silicon and approximately 0.3 volts for germanium, ensuring the transistors transition efficiently between off and on states while maximizing output voltage swing.

Q: How does the selection of resistor values influence the operation of a bistable multivibrator?

The selection of resistor values, particularly the biasing resistors (R1 and R2), is critical for determining the operational state of each transistor in a bistable multivibrator. Correctly chosen values will ensure that one transistor is driven into saturation while the other remains in cutoff, thereby facilitating stable switching and appropriate voltage swings across the output.

Q: What is the output voltage swing in a bistable multivibrator, and how is it determined?

The output voltage swing in a bistable multivibrator is defined as the difference between the maximum and minimum output voltages during operation. It is calculated as VCC (when the transistor is off) minus 0 volts (when the transistor is on), resulting in a full swing of VCC. This output swing is vital for ensuring that the multivibrator effectively drives subsequent circuits.

Summary & Key Takeaways

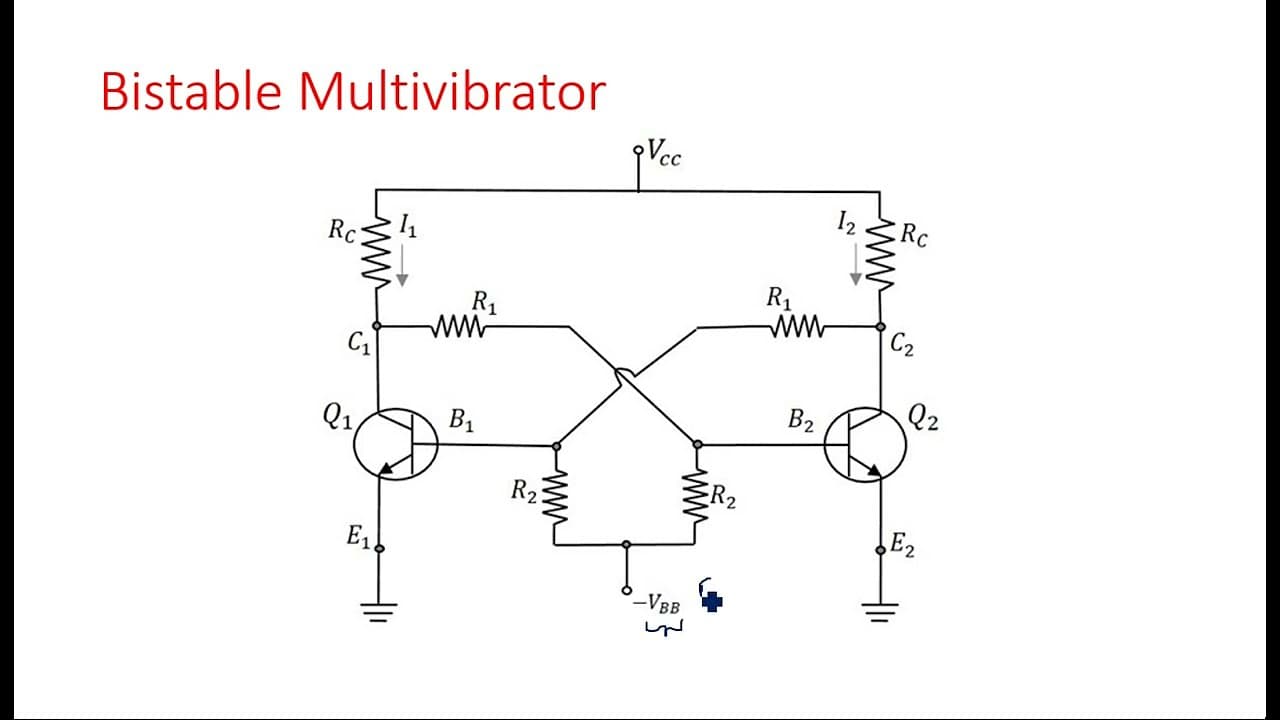

• The video discusses the fixed bias configuration of bistable multivibrators, detailing how transistors are connected and controlled through biasing resistors to achieve stable performance.

• It highlights the critical parameters that influence the operation of the multivibrator, such as component values and current directions, which ensure that one transistor operates in saturation while the other is in cutoff.

• Additionally, it addresses the importance of handling loading effects in bistable multivibrators, emphasizing the need for diodes to maintain stable operation under varying load conditions.
