Maxwell's bridge | Circuit | Electrical Instruments ( EIM ) | Lec - 47

TL;DR

Maxwell's Bridge is essential for measuring unknown inductance in electrical circuits.

Transcript

hi everyone in this video i am going to explain about this maxwell spiritual so maxwell's bridge is very very very important from examination point of view and it is used to measure the unknown inductance value unknown inductance value okay so unknown inductance in the starting of this bridges i have given you one shot in that ac bridges dc and bri... Read More

Key Insights

• 🌉 Maxwell's Bridge uniquely leverages known capacitance to determine unknown inductance, providing a different approach from other bridge types.
• 🍻 Achieving balance in the bridge circuit is essential for accurate inductance readings, linking the measurement directly to the equilibrium state.
• 👻 The relationship between admittance and impedance is leveraged, allowing for effective calculations in scenarios where resistance and capacitance interact.
• ✋ The quality factor of Maxwell's Bridge varies from 1 to 10, illustrating its limitations in high-precision contexts, which can impact application choices.
• 😒 The bridge can effectively measure inductance values from 1 to 1000 henries, accommodating a wide range of practical uses in circuits.
• ☠️ The generic error rate is ±2%, which emphasizes the importance of accounting for inaccuracies in inductance measurement, especially in sensitive applications.
• 🎨 Using Maxwell's Bridge can enhance understanding of inductive properties in electronic components, fostering better designs and innovations in circuit technology.

Questions & Answers

Q: What is the primary function of Maxwell's Bridge?

Maxwell's Bridge is primarily used to measure the unknown inductance in an electrical circuit. Unlike other types of bridges, it uniquely derives the unknown inductance by utilizing a known capacitance value. This is particularly relevant for applications requiring accurate inductance measurements across a range of values, which can help in various fields such as electrical engineering and circuit design.

Q: How does the balance condition in Maxwell's Bridge affect its operation?

The balance condition in Maxwell's Bridge is crucial for its operation, as it ensures that the impedance in certain arms of the circuit align properly. It follows the equation z1 z4 = z2 z3, where specific configurations lead to measurable outcomes. Achieving this balance allows for precise calculations, and the system must remain balanced to prevent inaccuracies in determining the unknown inductance.

Q: What are the components involved in Maxwell's Bridge?

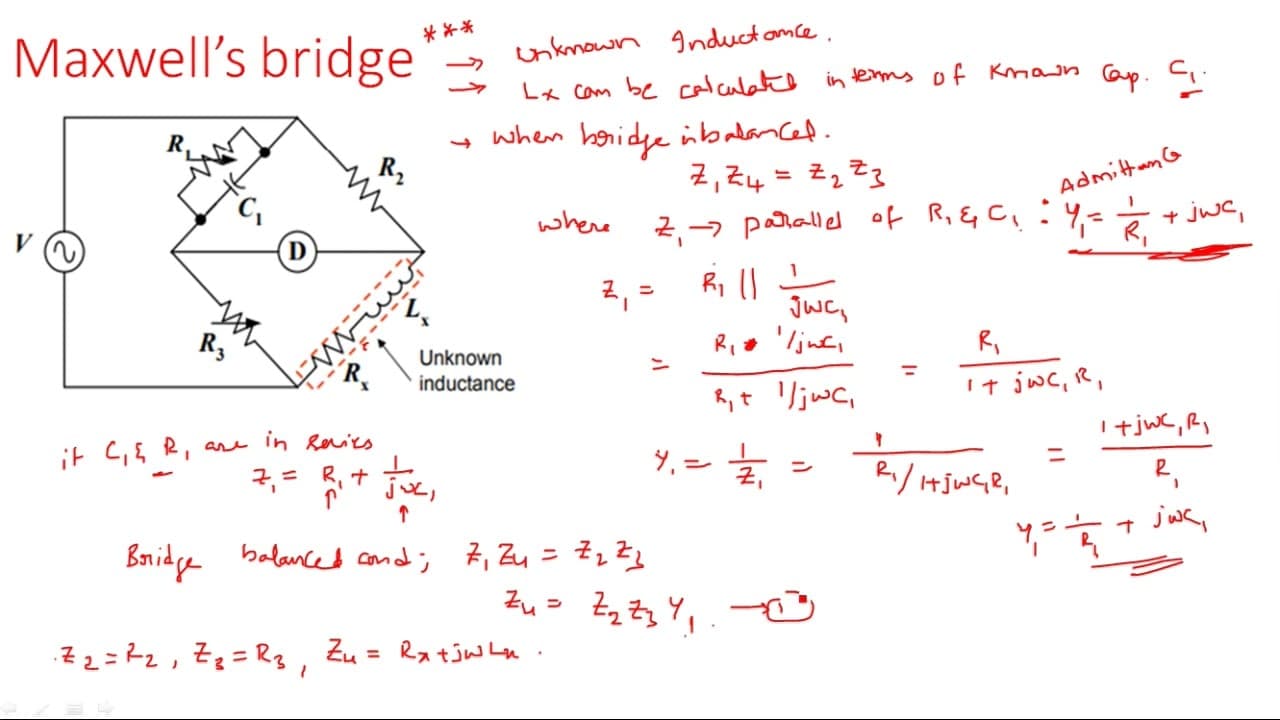

The circuit of Maxwell's Bridge consists of known resistances and capacitances, along with an unknown inductance situated across one arm. The known capacitance (C1) and resistance (R1) are used in parallel to calculate results through admittance rather than impedance. This setup facilitates the determination of the unknown inductance by maintaining the bridge in a balanced state.

Q: What is the significance of the quality factor in Maxwell's Bridge?

The quality factor (Q) in Maxwell's Bridge indicates the performance of the bridge in relation to its inductance measurements. It typically ranges between 1 to 10, suggesting its limitations in terms of precision. A higher quality factor implies greater sensitivity and efficiency; hence, Maxwell's Bridge, while useful, may be less effective than other bridges for high-precision applications, prompting the use of alternatives when necessary.

Q: What range of unknown inductance can Maxwell's Bridge measure?

Maxwell's Bridge can measure unknown inductances ranging from 1 to 1000 henries. This measurement capability offers flexibility in various applications, making it suitable for academic as well as practical engineering tasks. The ability to measure across such a range means it can cater to both low and high inductance scenarios encountered in electrical components.

Summary & Key Takeaways

• Maxwell's Bridge is a critical tool for measuring unknown inductance values, relying on known capacitance rather than inductance for calculations, which is a unique characteristic compared to other inductance measurement methods.

• The bridge operates on principles of balance, where components must be configured correctly to achieve equilibrium, enabling accurate determination of the unknown inductance using the formula related to impedance and admittance.

• Additionally, Maxwell's Bridge has a quality factor ranging from 1 to 10, indicating its practical limitations in high precision applications, along with a measurement capacity for inductances between 1 to 1000 henries with a ±2% error margin.
