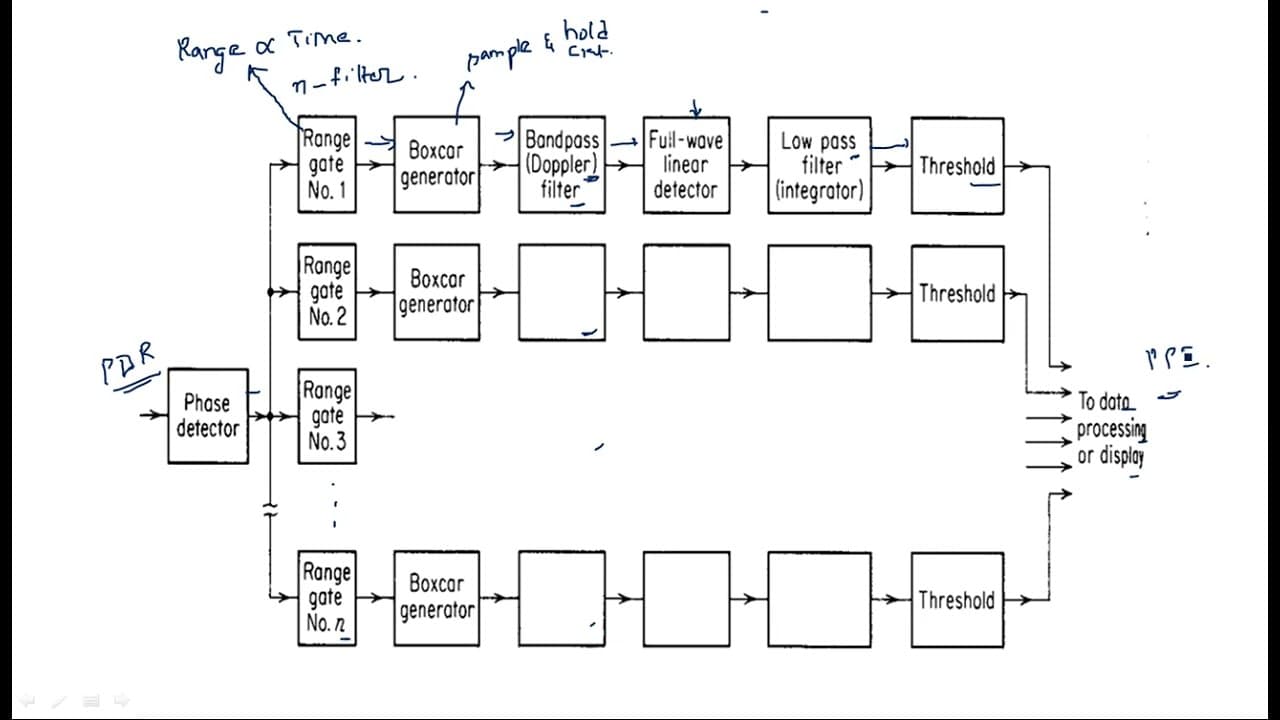

Doppler filters | Range gated | Block Diagram | MTI Radar | Radar Systems | Lec-40

TL;DR

Range gated Doppler filters identify moving targets amidst stationary clutter in radar systems.

Transcript

hi everyone in this video I am going to explain about range gated Doppler filters so what do you mean by range gated Doppler filters in the MTA radar the output of the receiver is connected to delay line canceler in MTA radar that means the output of empty radar is having both the stationary Target information and moving Target information how we h... Read More

Key Insights

• 💗 Range gated Doppler filters are pivotal in pulse Doppler radar, facilitating the clear identification of moving targets while eliminating noise from stationary clutter.
• 🎯 The quantization process in radar systems significantly aids in differentiating target ranges, enabling accurate tracking and analysis of multiple targets simultaneously.
• 🙈 The blind speed effect presents challenges in target detection, necessitating innovative solutions like frequency staggering to enhance radar effectiveness.
• 😘 Pulse Doppler radar systems integrate components such as boxcar generators and low-pass filters to optimize signal processing, leading to improved target detection rates.
• 👱 The capability to streamline the processing of radar signals enhances overall operational efficiency in various applications, including air traffic control and military surveillance.
• 🎯 Understanding the relationship between target movement and Doppler frequency shifts is critical for developing advanced radar technologies that can operate effectively in diverse environments.
• 🧡 The design and implementation of multiple range gates enable more focused radar measurements, significantly contributing to the radar’s ability to resolve targets with high precision.

Questions & Answers

Q: What are range gated Doppler filters and how do they function?

Range gated Doppler filters are advanced signal processing components used in radar systems, specifically pulse Doppler radars. They work by dividing incoming signals into small time intervals, allowing the radar to identify and isolate moving targets from background stationary clutter. This filtering process enhances the radar's ability to track moving objects without interference from fixed objects.

Q: How does the blind speed effect impact radar performance?

The blind speed effect occurs in radar systems when a moving target's velocity is such that it produces no Doppler shift in the received signal. This phenomenon can lead to the radar failing to detect fast-moving objects. To address this issue, radar systems may implement techniques such as staggered pulse frequency, improving the system's overall detection capabilities.

Q: Explain the role of the boxcar generator in pulse Doppler radars.

The boxcar generator in pulse Doppler radars acts as a sampling and hold circuit that stretches the radar signals' pulses over a more extended time frame for processing. This stretching allows the system to analyze the received signals more comprehensively, ensuring that critical information is not lost in brief pulse durations, effectively enhancing target detection.

Q: What distinguishes stationary targets from moving targets in radar output?

Stationary targets produce constant amplitude and consistent range signals in radar output, while moving targets generate signals that vary in both range and amplitude due to their movement. The radar system leverages these differences, utilizing filters and signal processing to distinguish moving targets from stationary ones effectively.

Q: How does the pulse Doppler radar system enhance moving target detection?

The pulse Doppler radar system enhances moving target detection by employing range gated Doppler filters to sift through signals. By focusing on Doppler frequency changes indicative of movement and isolating stationary target signals, the system improves resolution and accuracy in identifying moving objects, even amidst significant clutter.

Q: What is the significance of range gating in radar systems?

Range gating is significant as it breaks down the incoming radar signals into smaller, manageable time intervals which allows for precise identification of multiple targets at varying distances. By activating filters based on these time slots, the system can effectively track the motion of targets and reduce interference from static objects in the environment.

Q: How do low-pass filters contribute to the radar signal processing chain?

Low-pass filters in radar signal processing serve as essential components that allow only low-frequency Doppler components to pass through. By filtering out high-frequency noise or other non-essential signals, these filters help to focus on the crucial information related to moving targets, ensuring that the radar output is clearer and more interpretable.

Q: What advantages do range gated Doppler filters offer over traditional delay line cancelers?

Range gated Doppler filters offer superior range resolution and the ability to process large clusters of targets more effectively compared to traditional delay line cancelers. This method improves the separation of moving from stationary targets, ensuring better tracking performance and reducing false alarms in radar systems.

Summary & Key Takeaways

• Range gated Doppler filters are essential in pulse Doppler radar systems, allowing the identification of moving targets while eliminating stationary ones, enhancing signal clarity and accuracy.

• The process involves quantizing received signals into range intervals, which aids in distinguishing between varying ranges of moving and stationary targets through advanced signal processing techniques.

• The final output of the radar system, after processing through various stages including filtering and detection, displays only significant data pertaining to moving targets, facilitating efficient target tracking.
