Circulator as Duplexer | Diagram | Radar Systems | Lec-66

TL;DR

Circulators are essential duplexing devices that separate transmitting and receiving signals in microwave systems.

Transcript

hi everyone in this video I'm going to explain about another type of duplexing device that is circulator another type of duplexer that is circulator so what do you mean by duplexer I told you already in the previous videos what do you mean by duplexer duplexer is a device which is the device duplex is a microwave device duplexer is a microwave devi... Read More

Key Insights

• 😒 Duplexers are crucial in the field of microwave communications, enabling the use of a single antenna for both transmission and reception.
• 🦮 The circulator functions as a directional component, guiding signals efficiently through designated paths while preventing damage to sensitive equipment.
• 💦 Understanding the operational mechanics of circulators, including their port configurations and directional flow, is vital for anyone working with microwave technology.
• 😒 The use of a TR limiter alongside circulators is a common precaution against potential signal interchange that could harm receivers during operational failures.
• 🛟 Different types of duplexers serve specific functions based on their design and intended application, highlighting the diversity of technologies in microwave communications.
• 👻 Circulators can be designed with various port configurations, allowing flexibility depending on the communication system's requirements.
• 💐 Knowledge of the circulator's operation, including clockwise and anticlockwise flow, is essential for effective troubleshooting and system design.

Questions & Answers

Q: What is the primary function of a duplexer in microwave systems?

A duplexer's primary function is to separate transmitting and receiving signals, allowing for simultaneous communication over a single antenna. Without a duplexer, powerful transmitted signals could damage sensitive receivers, making it essential for systems that rely on dual-function antennas.

Q: How does the circulator operate in terms of signal direction?

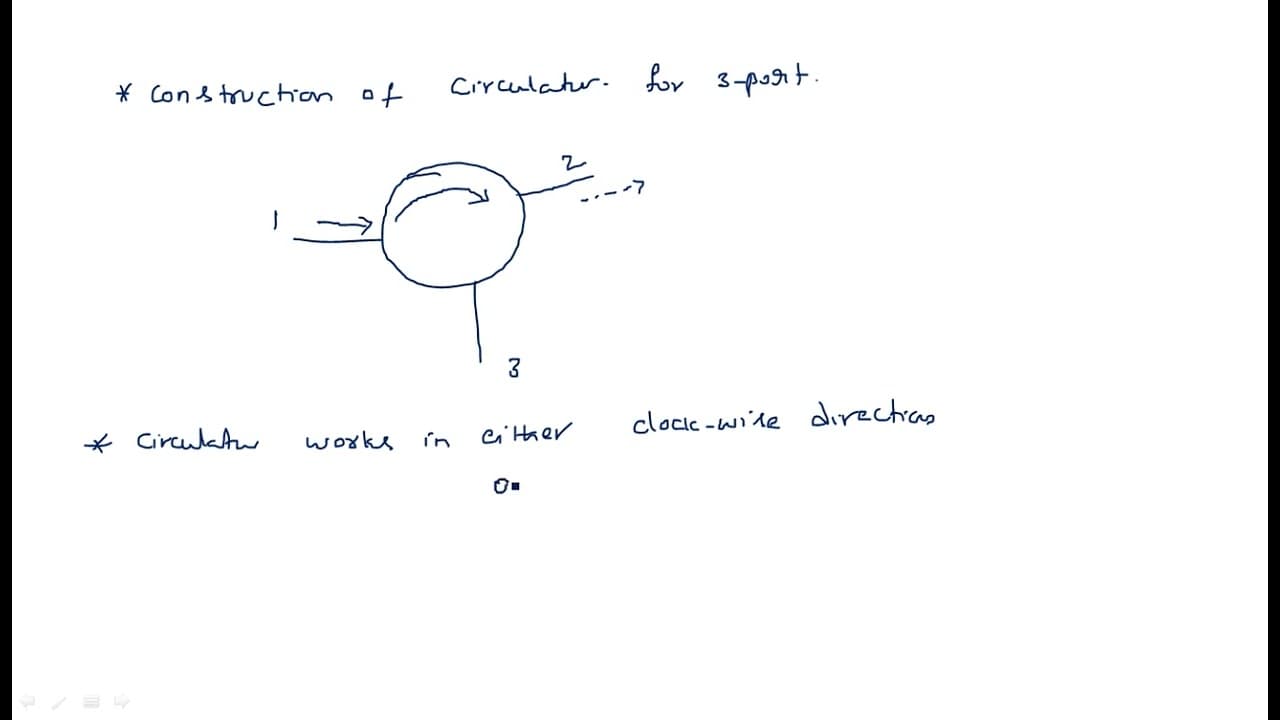

The circulator operates by allowing signals to flow in either a clockwise or anticlockwise direction. The configuration ensures that when a signal enters one port, it moves to the next designated port, effectively managing signal transmission while preventing reverse flow that could cause interference.

Q: Why is a receiver protector used with the circulator?

A receiver protector is employed to safeguard the receiver from unexpected high-power signals during transmission. If the circulator fails, this protector acts as a safeguard, short-circuiting any high-power signal that could reach the receiver and potentially damage it.

Q: Can you explain the difference between a directional coupler and a circulator?

A directional coupler typically has multiple ports for specific signal routing, allowing for signal division without loss. In contrast, a circulator functions by allowing signal transmission in a unidirectional manner, transferring power in a single rotational direction while preventing any backflow.

Summary & Key Takeaways

• A circulator is a specialized microwave device used as a duplexer, enabling the separation of transmitting and receiving signals through a single antenna. This prevents high-power transmission signals from damaging the receiver.

• Different types of duplexers, including directional couplers and isolators, function similarly to circulators. Each has unique port configurations and operational characteristics suitable for various communication systems.

• The circulator's construction allows signals to flow in only one direction, either clockwise or anticlockwise, ensuring that signals are efficiently transmitted without interference or damage to sensitive components.
