Robot Controllers Part 1: PID (with Dr. Christian Hubicki)

TL;DR

Successfully balanced pendulum using Proportional and Derivative Control, preparing for Integral Control.

Transcript

[MUSIC PLAYING] Hello, everyone. We are starting apparently at about 38 seconds according to the timer. You might have to give me an extra 10 or 20 seconds here. But just let me know in the chat if you're hearing my audio OK. I will be bringing in our very special guest's audio in a moment. So just let me know if you hear me. [MUSIC CONTINUES] Hell... Read More

Key Insights

• 🎮 PID controllers adjust control signal based on proportional, derivative, and integral components.
• 🎮 Gains tuning is a critical step in optimizing PID control for specific applications.
• 🌍 Real-world systems require balancing performance and stability in control design.

Questions & Answers

Q: How are gains in PID controllers determined?

Gains are usually adjusted empirically or through mathematical models to achieve desired system stability and performance.

Q: What are the key components of a PID controller?

Proportional gain determines response to current error, derivative gain dampens oscillations, and integral gain corrects accumulated error over time.

Q: How does a PID controller differ from traditional if-else control structures?

PID controllers use continuous feedback to adjust control signal, while if-else structures are based on pre-defined rules without dynamic adjustments.

Q: How can PID control be applied to real-world systems like robots?

PID control can regulate motor speed, position, temperature, and other variables in robotics by tuning gains for optimal performance and stability.

Summary & Key Takeaways

• Host introduces guest expert in robotics.

• Guest explains concepts of control theory: PID controllers, simulation process, and gains tuning.

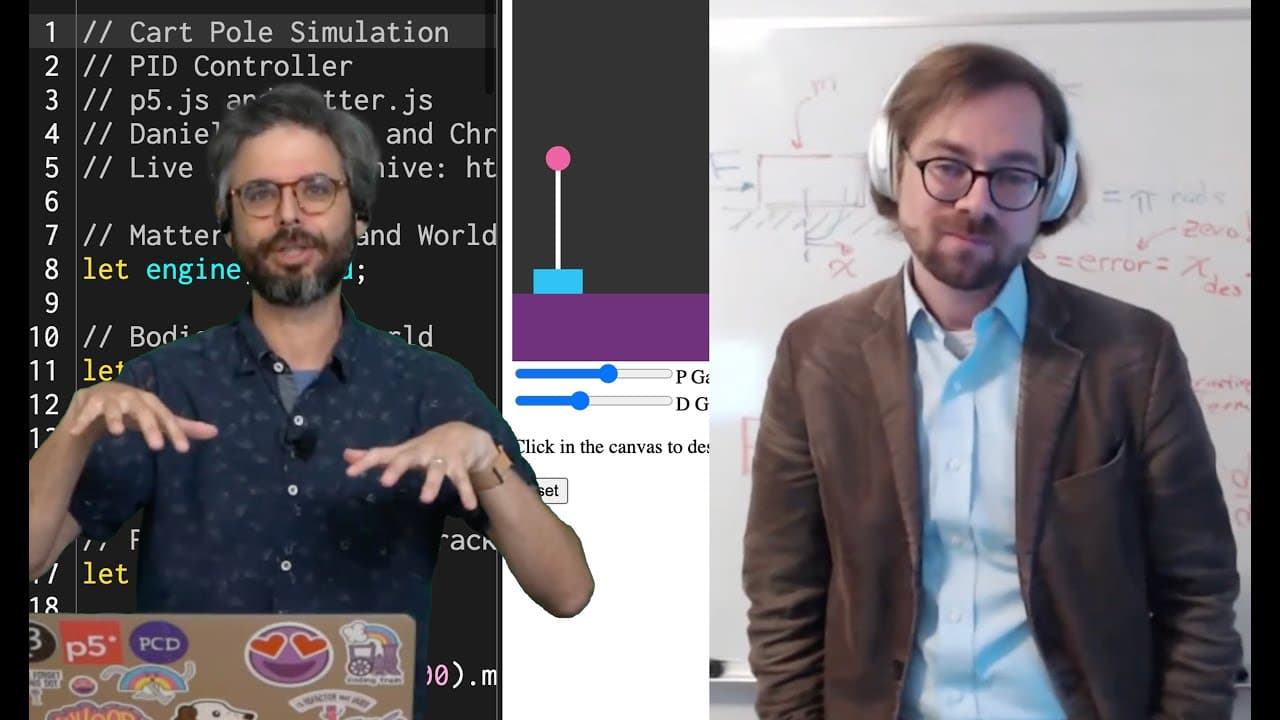

• Online simulation demonstrates balancing pendulum with PID control, adjusting gains for better performance.
