Gyrator | Ferrite device | Microwave Engineering | Lec-71

TL;DR

This video explains the workings of gyrators, a type of ferrite device for signal phase manipulation.

Transcript

hi everyone in this video I am going to start a ferrite device called director there are generally three types of android devices available gyrator isolator circulator these three are ferrite devices where ferrite magnetic material has been in used inside the waveguide to rotate the electric field okay I will explain the operation of all these thre... Read More

Key Insights

• 🤩 Gyrators are key components in signal processing, providing essential phase shifts for effective communication.
• 📡 They utilize the non-reciprocal property of Faraday rotation, differentiating phase shifts between forward and reverse signal paths.
• 🏑 Understanding the gyrator's functionality involves visualizing the electric field orientation and how it changes through both twists and ferrite materials.
• 📡 Twists within the device create additional phase shifts, crucial for achieving the desired signal transformations.
• 🏑 The behavior of signals in waveguides is best analyzed through electric field components, as magnetic fields do not provide the necessary directional clarity.
• 📼 The video sets up anticipation for future discussions on the scattering matrix properties related to gyrator performance.
• 🖐️ Each component within the gyrator setup, from the ferrite rod to the twists, plays a vital role in achieving the device's functionality.

Questions & Answers

Q: What are the three main types of ferrite devices mentioned in the video?

The three primary types of ferrite devices discussed include gyrators, isolators, and circulators. Each serves distinct purposes in signal processing within waveguides, using ferrite materials to manipulate the phase and direction of electromagnetic signals, contributing to effective signal management in various technologies.

Q: How does a gyrator manipulate the signal phase?

A gyrator rotates the phase of a signal by 180 degrees when traveling from Port 1 to Port 2, while no phase shift occurs when the signal travels in the opposite direction. This unique non-reciprocal behavior, primarily due to the properties of Faraday rotation within the ferrite material, enables effective signal management in circuits.

Q: What role does the twist play in the gyrator's operation?

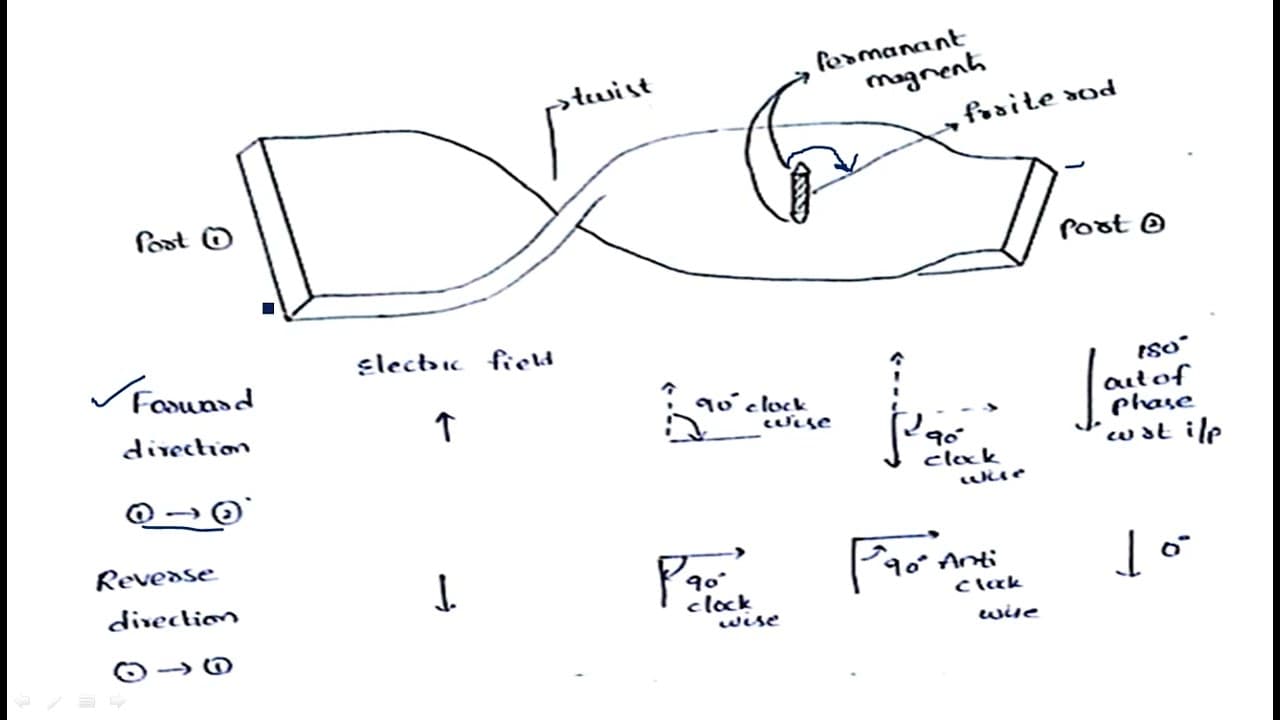

The twist in the gyrator setup provides an additional 90-degree phase shift to the transmitted signal in the forward direction. This twist prepares the signal for interaction with the ferrite material, ensuring that a total phase shift of 180 degrees is achieved as the signal travels from Port 1 to Port 2.

Q: Why can’t the operation of waveguides be explained using magnetic fields?

The video emphasizes that the behavior of waveguides is best explained using electric field components instead of magnetic fields. Magnetic fields lack a directional representation for phase shifts, making it difficult to delineate the precise phase differences required for effective signal manipulation in devices like the gyrator.

Q: Can you explain the reverse signal phase behavior in a gyrator?

When the signal travels from Port 2 to Port 1, the gyrator exhibits a unique behavior where it undergoes a 90-degree phase shift in the anti-clockwise direction due to the ferrite material, followed by a return to its original orientation as it passes through the twist. As a result, there is no net phase shift in this direction, maintaining the original signal state.

Q: What insights are offered into the role of ferrite materials in the gyrator?

Ferrite materials are crucial to the gyrator's operation, as they impart significant phase shifts to the signals based on their properties. The unique interaction with the electric field lines results in a specific manipulation of phase, critical for the overall functionality of the gyrator within modern technologies.

Summary & Key Takeaways

• The video discusses three types of ferrite devices: gyrators, isolators, and circulators, emphasizing the gyrator's unique phase-shifting properties.

• A gyrator is explained as a two-port device that imparts a 180-degree phase shift to signals traveling in one direction, while ensuring no phase shift in the reverse direction.

• It highlights the operational principle utilizing Faraday rotation, along with diagrams to illustrate the phase changes and the transformation of electric fields in signal transmission.
