12V LED Battery Level Indicator With Zener Diodes & Resistors

TL;DR

Learn how to create a battery level indicator using LEDs and understand which LEDs will be on or off based on the applied voltage.

Transcript

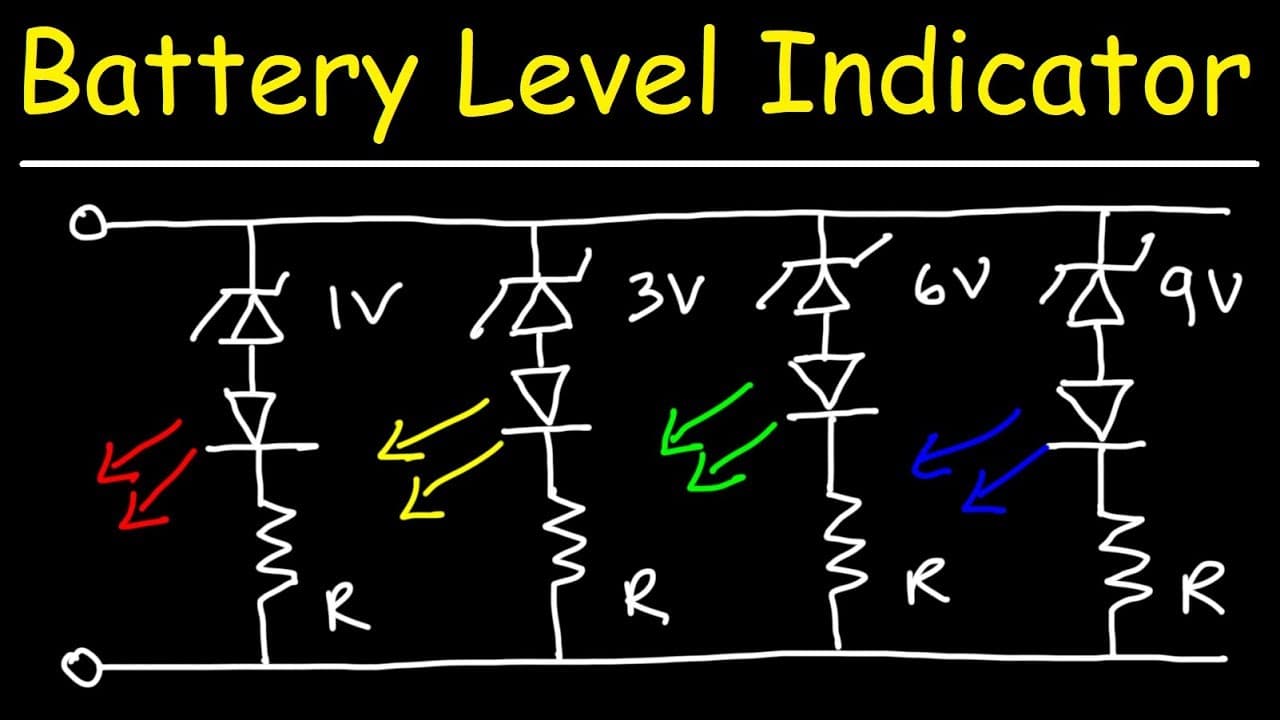

in this video we're going to focus on making a battery level indicator using leds or light emitting diodes resistors and zener diodes as well so the xenodiodes are in reverse bias mode and here we have the leds a green a yellow i mean that's a red one a yellow green and a blue one and let's say that the red and yellow leds have a voltage drop of 2 ... Read More

Key Insights

• 💦 LEDs in a circuit have different voltage drops, which determine their activation.
• 💦 The total voltage drops in each branch determine which LEDs will be on or off.
• 💦 Zener diodes in reverse bias mode can be used to control the voltage drop across a branch.
• 👫 Resistors are used to limit the current flowing through the LEDs and protect them from excessive voltage.
• 🎚️ By designing the circuit appropriately, you can create a battery level indicator that accurately displays the battery's charge level.
• ⚡ Different voltage levels can be used to power the circuit, and LEDs will turn on or off based on the applied voltage.
• 🥺 The circuit design can be modified to suit specific voltage thresholds for each LED.

Questions & Answers

Q: How does the circuit determine which LEDs will be on or off?

The circuit determines which LEDs will be on or off based on the total voltage drops. If the applied voltage is greater than the total voltage drops in a branch, the corresponding LED will be on.

Q: Can you make a battery level indicator without using zener diodes?

Yes, you can create a battery level indicator using LEDs and resistors without zener diodes. The circuit design will be different, but the principle of analyzing voltage drops remains the same.

Q: What happens if the applied voltage is not enough to power any LEDs?

If the applied voltage is not sufficient to meet the minimum voltage drop of any LED in the circuit, all LEDs will be off.

Q: Can you customize the circuit to determine which LEDs are on or off for different voltage levels?

Yes, you can design the circuit to set specific voltage thresholds for each LED. By adjusting the resistor and LED combinations, you can control which LEDs will be on or off based on the applied voltage.

Summary & Key Takeaways

• The video explains how to make a battery level indicator using LEDs, resistors, and zener diodes.

• Different LEDs have different voltage drops, and resistors with a value of 1 kilo ohm are used in the circuit.

• By analyzing the total voltage drops in each branch, you can determine which LEDs will be on or off based on the applied voltage.
