Boolean functions | Representation | SOP | POS | STLD | Lec-31

TL;DR

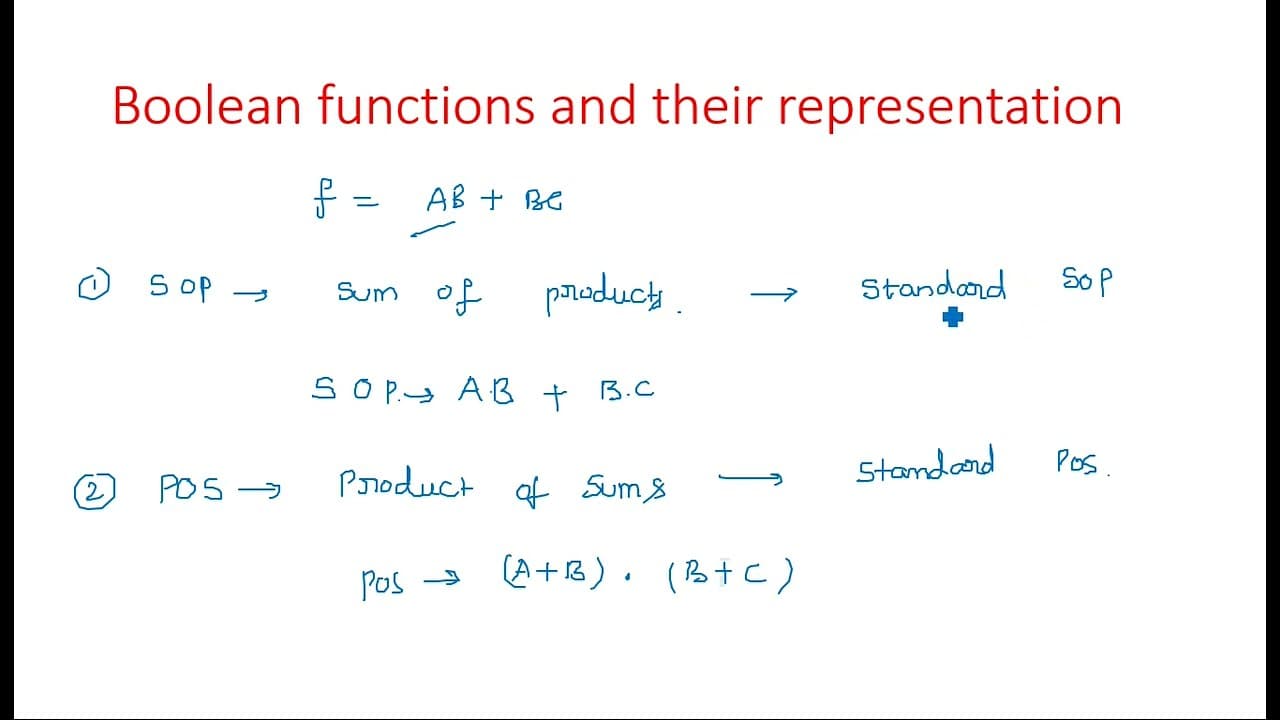

This video covers the representation of Boolean functions using standard SOP and POS forms.

Transcript

hi everyone in this video I'm going to explain about the representation of Boolean functions Boolean function Boolean function is nothing but suppose f is equal to a plus BC this is a buan function and its expression this expression we have got from the truth table generally we are deriving the expression from the truth table by using carof maps an... Read More

Key Insights

• 💁 Boolean functions facilitate logical computations through binary inputs and outputs, forming the basis of digital circuitry.
• 💼 The SOP form focuses on adding products of variables, representing cases that output '1' from a truth table, while POS centers on products of sums for cases that yield '0'.
• ❓ Understanding standard SOP and POS is crucial for complete and accurate Boolean representations, ensuring all variables and conditions are accounted for.
• 💁 Minterms must cover each variable in a standard SOP form, while maxterms must account for all cases of '0' in POS form for comprehensive representation.
• 🎃 Simplification methods like K-maps allow for efficient combination and reduction of expression complexity in Boolean algebra, vital for practical applications.
• 🎨 Mastery of these representations and simplification techniques is essential for success in digital logic design and analysis, particularly in engineering courses and examinations.
• 💻 The logical operations represented through Boolean functions underpin software, hardware, and various applications across technology and computer science domains.

Questions & Answers

Q: What are Boolean functions?

Boolean functions are mathematical functions that compute the output based on binary inputs. For instance, the function f = a + bc expressed in terms of a truth table provides a foundation for analyzing logical operations and building digital circuits.

Q: What are the two primary forms for representing Boolean functions?

The two primary representations are the Sum of Products (SOP) and the Product of Sums (POS). SOP involves summing multiple product terms (minterms), while POS involves multiplying sums (maxterms). Each form has distinct usage depending on the situation in Boolean algebra.

Q: How is a standard SOP form different from a regular SOP form?

A standard SOP form includes all minterms within its expression, ensuring that every variable is represented in its complemented or uncomplemented form. This is unlike a regular SOP, which may omit certain minterms, lacking a complete representation of the Boolean function.

Q: Can you explain how to derive SOP from a truth table?

To derive SOP from a truth table, identify the rows that produce a '1' output, which correspond to minterms. Each of these row values leads to a product term formed by the respective variables, directly allowing the construction of the SOP expression through their summation.

Q: What does POS form focus on in its representation?

POS form emphasizes the maxterms, which are products of sums grouped from the rows of the truth table that yield a '0' output. For each zero output, a sum is formed by combining the variables in their complemented form, distinguishing it from the SOP approach.

Q: Why is it important to understand Boolean function representations?

Understanding representations of Boolean functions is crucial for designing digital circuits and performing logical operations efficiently. Mastering SOP and POS forms enables easier simplification and transformation of complex expressions, essential in fields like computer science and electrical engineering.

Q: What methods are used for simplifying Boolean expressions?

Boolean expressions can be simplified using various methods, such as Karnaugh maps (K-maps) and the Quine-McCluskey algorithm. These techniques help reduce complex truth tables into simpler forms, making them easier to analyze and implement.

Q: How do minterms and maxterms differ in Boolean algebra?

Minterms are product terms in the SOP that represent combinations of variables resulting in a true output, while maxterms are sums in the POS that correspond to combinations yielding a false output. Each plays a specific role in expressing and simplifying Boolean functions.

Summary & Key Takeaways

• The video explains Boolean functions, demonstrating how to derive expressions from truth tables using methods like Karnaugh maps.

• It highlights two primary representation forms for Boolean functions: the Sum of Products (SOP) and the Product of Sums (POS), outlining their definitions and examples.

• The distinction between standard forms of SOP and POS is clarified, emphasizing the necessity of including all minterms or maxterms in standard representations.
