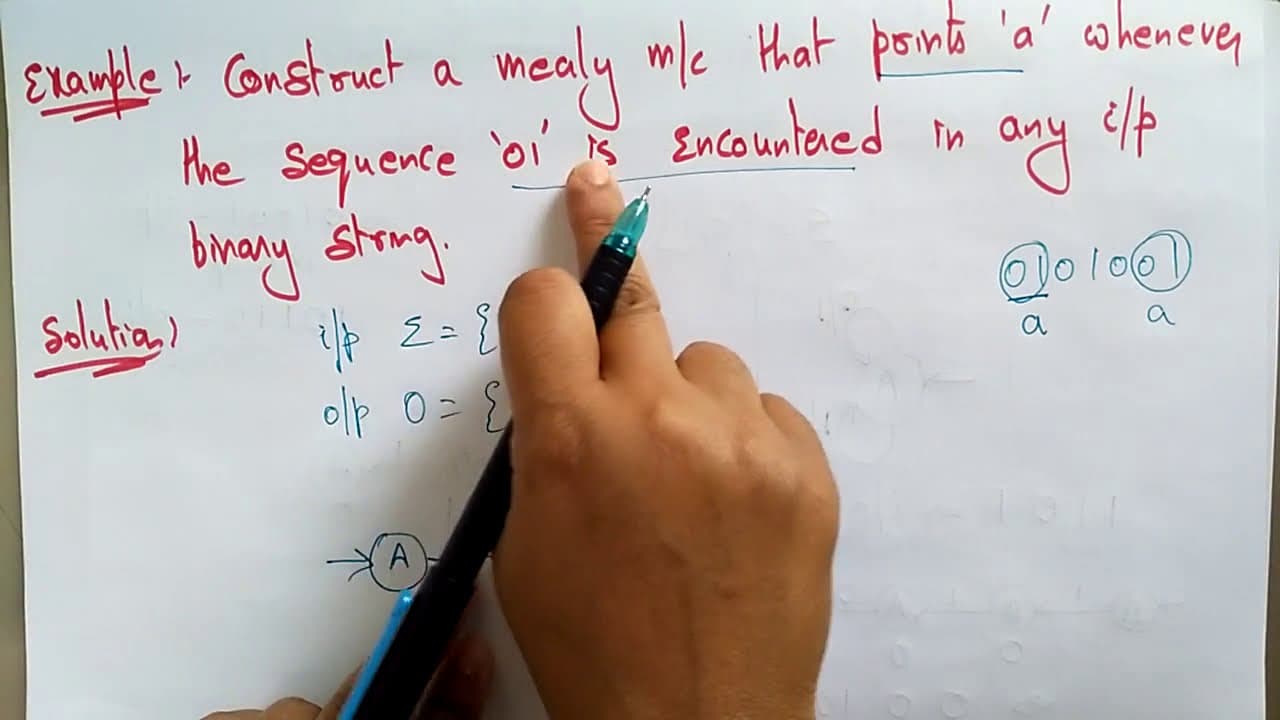

Learn to construct a Mealy machine that outputs 'a' for the sequence '01'.

Transcript

hi students let's continue with the examples of the milling machine now here is another example construct a milling machine that prints a okay so that prints a whenever the sequence 0 1 is encountered in any input binary string so they are saying any input binary string means it should be in the 0 & 1 okay so whatever the input binary string okay t... Read More

Key Insights

• 🔠 The Mealy machine operates by producing outputs based on both the current state and an input character, enhancing immediate reaction to specific input patterns.
• 👷 A deterministic finite automaton serves as the basis for constructing the Mealy machine, illustrating the vital connection between these computational models.
• 🎰 String examples provided in the content reveal practical usage of the Mealy machine, demonstrating how it correctly processes the input strings to yield the expected outputs.
• ⚾ The machine manages different output scenarios based on the presence or absence of the designated binary sequence, ensuring clarity in output behavior.
• 👷 The construction process emphasizes understanding state transitions and automaton behaviors in designing effective computational models.
• 🤩 The output states not only reflect the current input but also involve transitions that are key to maintaining the operational integrity of the machine.
• 🍻 The fundamental principle of the Mealy machine is to generate real-time outputs linked sharply to recognizing sequences, showcasing the relevance of finite automata in computer science education.

Questions & Answers

Q: What is the primary purpose of the Mealy machine discussed in the content?

The primary purpose of the discussed Mealy machine is to identify the specific binary sequence ‘01’ in any input string comprising 0s and 1s and to print the output ‘a’ whenever this sequence is encountered. It serves as an educational example of how finite state machines work in automating sequence detection.

Q: How many states are necessary for the Mealy machine, and why?

The Mealy machine requires three states due to the need to track inputs effectively while searching for the sequence ‘01’. With two symbols (0 and 1), the formula for the number of states becomes length plus one, resulting in three states: initial, intermediate, and final states.

Q: What distinguishes the output of the Mealy machine from other finite state machines?

Unlike other finite state machines that may produce output solely based on the current state, the Mealy machine's output depends on both the current state and the current input. Therefore, it can generate outputs immediately when encountering specific transitions, such as the result ‘a’ upon recognizing ‘01’.

Q: Can the Mealy machine generate output for any input string containing '01'?

Yes, it is designed specifically to generate the output ‘a’ each time the sequence ‘01’ appears in any input string of 0s and 1s. Any input strings without this sequence will yield ‘B’ as the output throughout.

Summary & Key Takeaways

• The content explains how to design a Mealy machine that prints ‘a’ whenever the binary sequence ‘01’ is identified in an input string consisting of 0s and 1s.

• The construction begins with creating a deterministic finite automaton, outlining the interplay between different states, such as the initial state and those leading to outputs based on sequence recognition.

• Examples illustrate the functionality of the machine, demonstrating correct outputs for various binary strings, affirming that only the correct binary sequences trigger the anticipated outputs.
