Moore's law in VLSI | IC evolution | VLSI | Lec-02

TL;DR

This video explains Moore's Law and integrated circuit evolution stages, including design technologies.

Transcript

hi everyone in this video I am going to explain about the mursla and what are the different IC Evolution stages and I will also explain the different Technologies used to design the integrated circuits so first and foremost thing was Moore's Law what do you mean by musla what a musla stated that so Moore's Law stated that more Salah so according to... Read More

Key Insights

• 👻 Moore's Law illustrates the rapid advancement of integrated circuit capabilities, allowing an exponential increase in transistor density over the years.
• ⚖️ The evolution of integrated circuits follows a clear trajectory from SSI to GSI, showcasing the importance of scaling in technology development.
• 💄 Different integrated circuit technologies offer unique benefits, making it essential to consider specific application requirements in their selection.
• 🛩️ The shift toward smaller transistors has enabled chip makers to enhance performance without increasing physical dimensions, leading to smaller and more powerful devices.
• ✊ Bipolar and CMOS technologies are critical in the evolution of integrated circuits, each serving distinct roles based on speed and power requirements.
• 🎨 Decision-making in IC design is complex, often requiring trade-offs between speed, power dissipation, and design complexity based on application parameters.
• 🤗 Understanding these technologies opens new avenues for innovation in electronics, driving performance improvements across all computing platforms.

Questions & Answers

Q: What is Moore's Law and its implications for integrated circuits?

Moore's Law, proposed by Gordon Moore, observes that the number of transistors on integrated circuits doubles approximately every two years. This law suggests exponential growth in computing power and miniaturization, driving technological advancements and making devices more powerful without enlarging their physical size.

Q: What are the different stages of integrated circuit evolution?

The stages of integrated circuit evolution include Small Scale Integration (SSI), Medium Scale Integration (MSI), Large Scale Integration (LSI), Very Large Scale Integration (VLSI), Ultra Large Scale Integration (ULSI), and further advancements into GSI. Each stage represents an increase in the number of transistors that can be integrated onto a single chip.

Q: What are the key technologies used in designing integrated circuits?

Key technologies include bipolar technology, which uses transistors for high performance, and MOS technology, which includes NMOS and PMOS. CMOS technology combines both for energy efficiency, while gallium arsenide technology is utilized for high-speed applications and silicon-on-insulator for high-temperature needs.

Q: How does the size of transistors relate to IC evolution?

As per Moore's Law, as the size of transistors decreases, more can fit into the same area of an integrated circuit, allowing for greater functionality and performance without changing the chip's dimensions. This shrinking of transistors is fundamental to the evolution of integrated circuits.

Q: What advantages does CMOS technology offer?

CMOS technology combines PMOS and NMOS transistors to provide low power consumption and high voltage swing, which is essential for modern integrated circuits. Despite having higher propagation delays, its energy efficiency makes it the preferred choice for many applications.

Q: What considerations should be made when selecting IC technologies for applications?

When selecting IC technologies, factors such as power consumption, speed, operating temperature, and specific application requirements must be considered. Technologies like ECL are chosen for speed, while CMOS is favored for power efficiency, and gallium arsenide is suitable for high-speed applications.

Q: Can you explain the differences between various integrated circuit technologies?

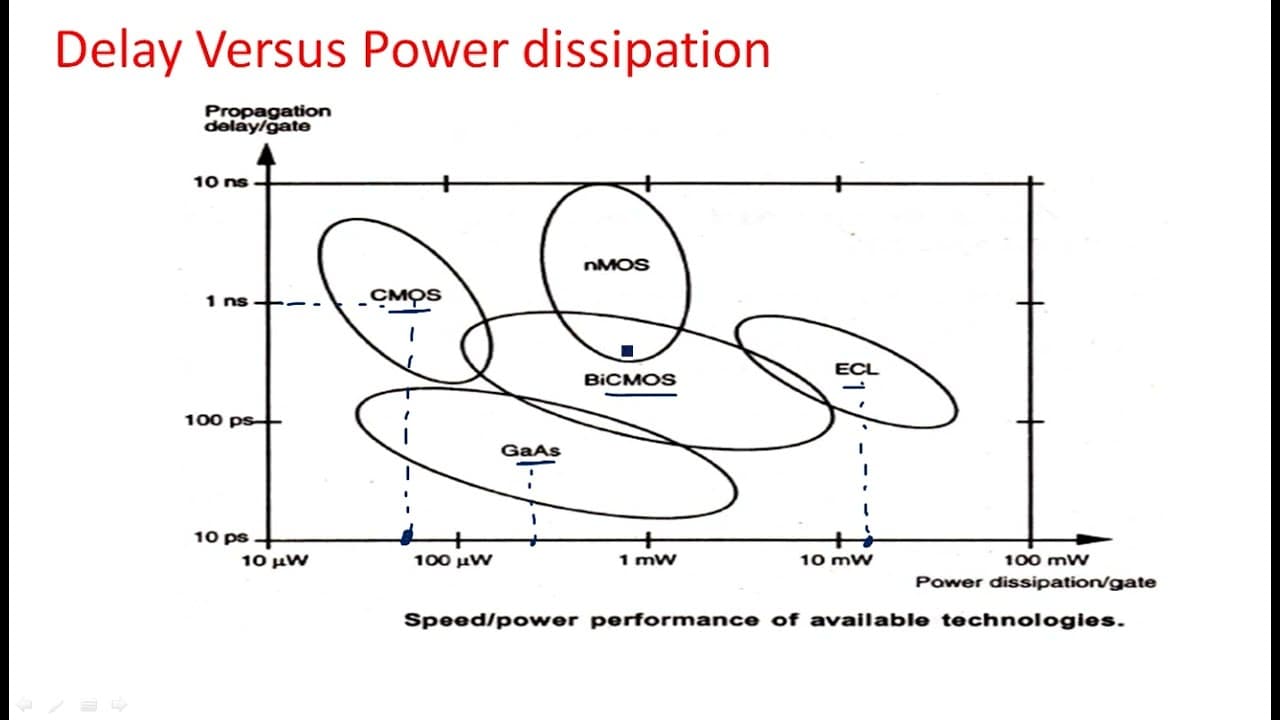

Various IC technologies differ in performance characteristics. Bipolar technology has high power consumption but offers fast operation. CMOS technology is slower but has significantly lower power dissipation. Gallium arsenide provides moderate power consumption with low propagation delay, making it suitable for high-speed circuits.

Summary & Key Takeaways

• The video discusses Moore's Law, which states that the number of transistors on an integrated circuit doubles approximately every two years without increasing chip size.

• It outlines the various stages of integrated circuit evolution, from small scale integration (SSI) to ultra-large scale integration (ULSI), highlighting the growth in the number of transistors over time.

• The video also covers different technologies used in integrated circuit design, such as bipolar, MOS, and CMOS technologies, each chosen based on specific application needs like speed or power consumption.
