3 to 8 Decoder | IC 74X138 | VHDL code | Digital Systems Design | Lec-59

TL;DR
The 74 LS 138 is a 3-to-8 line decoder used in digital circuits.
Transcript

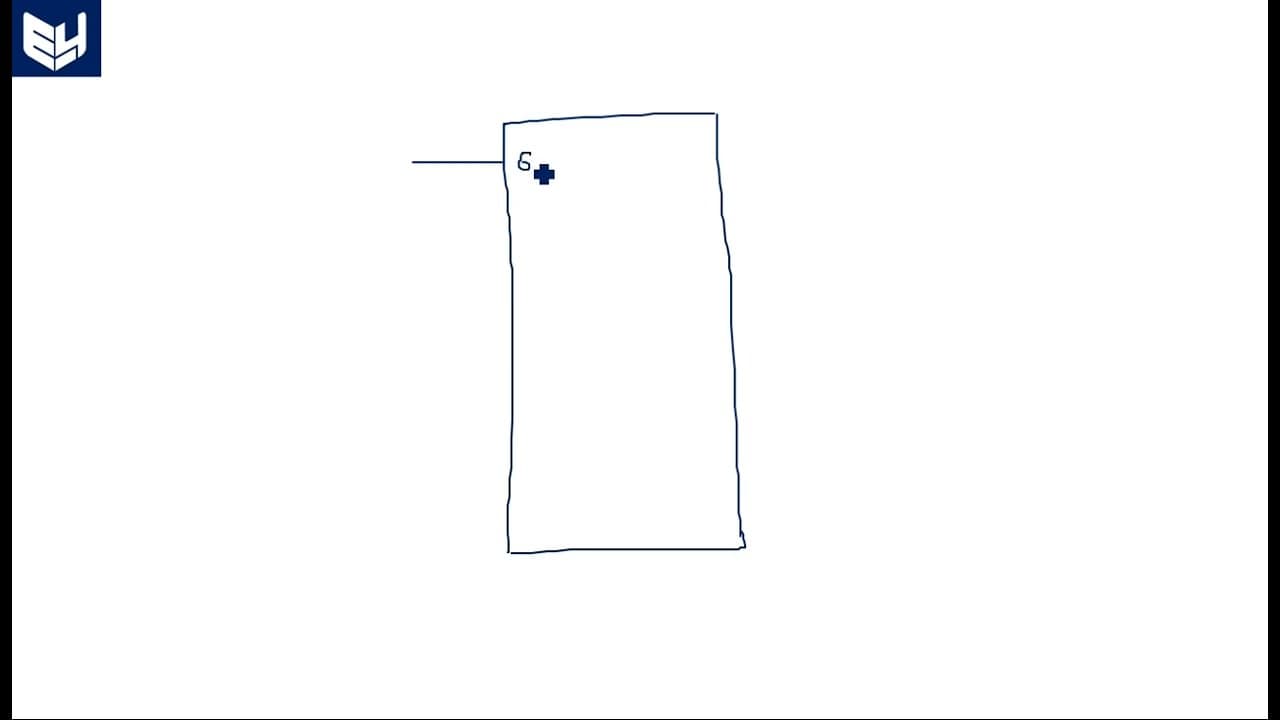

hi everyone in this video I'm going to introduce 74 LS 138 which is a 328 decoder very very very important 74 LS 138 which can be used for the construction of higher order decoders okay so 74 LS 138 which is a 328 decoder as the name clearly tells that it is see if you want to remember you can remember in this way also 38 is there at the end so 328... Read More
Key Insights
- 🔠 The 74 LS 138 is a fundamental component in digital electronics, providing efficient decoding capabilities from binary inputs.
- 😴 Its design includes three enable pins, allowing it to handle complex cascading operations, which is critical for larger digital systems.
- 😘 The device's outputs are exclusively active low, which means a low signal identifies that output, differentiating it from active high components.
- 👨💻 VHDL coding for the 74 LS 138 requires an understanding of its input-output relationships, typically utilizing conditional statements for accurate circuit modeling.
- 🎓 Knowledge of the IC's specifications, including the arrangement of inputs and outputs, is necessary for practical applications and examinations in electronics education.
- 🎨 The 74 LS 138 can be employed in a variety of applications, including memory selection, address decoding, and other logic circuit designs.
- 😒 The effective use of this decoder can streamline the design process of more sophisticated digital circuitry and enhance its functionality.
