Full subtractor | Truth table & Logic Circuit | STLD | Lec-60

TL;DR

This video explains how to design a full subtractor circuit step by step.

Transcript

hi everyone in this video I'm going to design full subtractor so full subtractor is used to it is used to subtract three bits of information okay it is used to subtract three bits of information it is like your full header half half subtractor is like your half adder and full subtractor like is like your full adder so full subtractor needs three in... Read More

Key Insights

• 🪡 A full subtractor is essential for digital circuits that need to compute binary subtraction while accounting for borrow input.

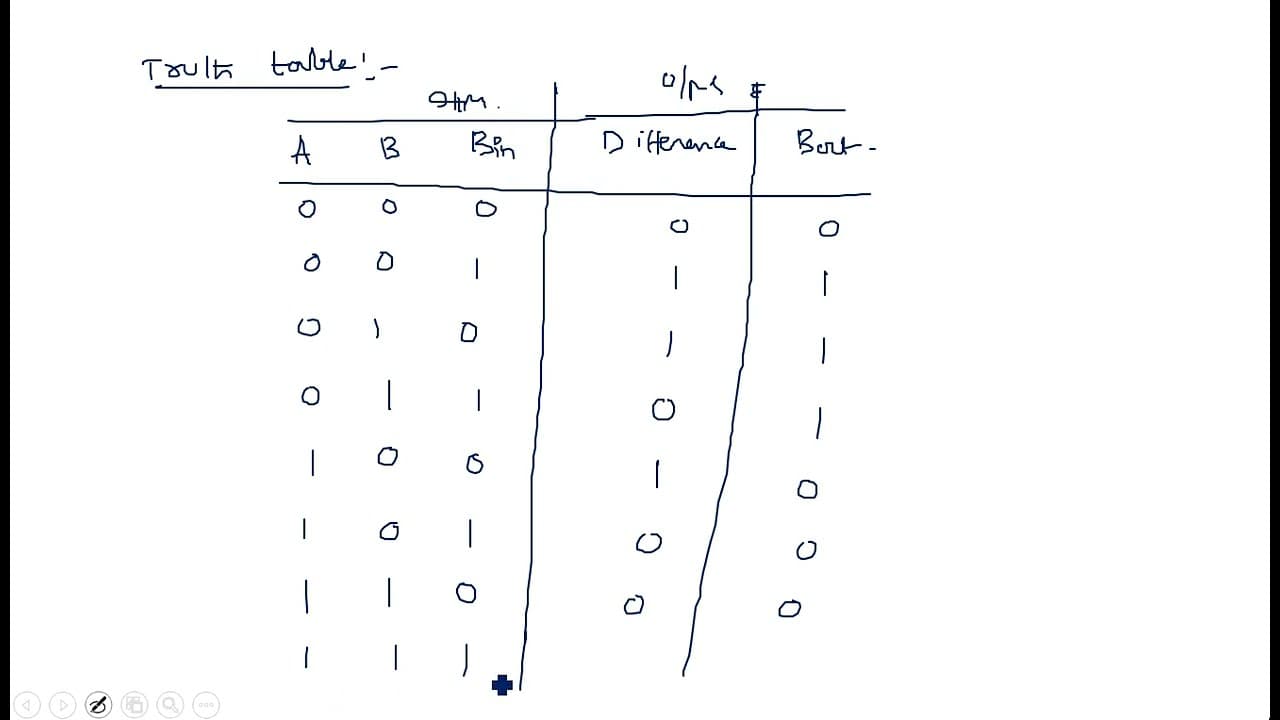

• 👂 The truth table lists all combinations of inputs to provide a clear overview of how outputs are generated, making it a critical part of circuit design.
• 😑 K-maps are powerful tools for simplifying logical expressions, reducing complexity and ensuring efficient implementation in circuit designs.
• 👻 XOR gates are fundamental to the operation of full subtractors, allowing for straightforward computation of both differences and borrow outputs.
• 😑 The simplified output expressions significantly aid in understanding the behavorial characteristics of the subtractor, allowing easier troubleshooting and optimization.
• 😉 Designing circuits requires a systematic approach; starting from truth tables through to K-maps and final circuit layout ensures accuracy in digital designs.
• 🎨 Implementation of the full subtractor circuit involves combining multiple gates intelligently, showcasing the principles of digital logic design in practice.

Questions & Answers

Q: What is a full subtractor and how does it differ from other subtractors?

A full subtractor is a digital circuit used to subtract three bits, including two primary inputs and a borrow input. It differs from half subtractors, which only handle two inputs without borrow, thus making the full subtractor more versatile in digital computation.

Q: Why is the truth table crucial in designing a full subtractor?

The truth table serves as the foundational step in designing a full subtractor because it outlines all possible input combinations and their corresponding outputs for difference and borrow. Without it, constructing accurate expressions and circuit diagrams would be virtually impossible.

Q: How are K-maps utilized in the full subtractor design?

K-maps help simplify the logical expressions derived from the truth table by visually grouping terms. This procedure allows for easier derivation of minimal expressions for the difference and borrow outputs, enhancing circuit efficiency and clarity in design.

Q: What are the key expressions for the output of a full subtractor?

The output expressions for difference (D) and borrow out (Bout) in a full subtractor are given by D = A XOR B XOR BN and B out = A'B + BN(A' + B). These expressions consolidate the logic and ensure accurate subtraction processing.

Summary & Key Takeaways

• The full subtractor is a digital circuit that subtracts three bits of information, requiring inputs A, B, and borrow input (BN), producing outputs for difference (D) and borrow out (Bout).

• The design process involves creating a truth table, deriving expressions using Karnaugh maps (K-maps), and plotting the resulting logic circuit for clarity and function.

• The final equations for difference and borrow out are derived through simplifications involving XOR operations, ultimately leading to a clear circuit diagram for practical implementations.
