Boolean algebra | Axioms and laws | Part-2/2 | STLD | Lec-29

TL;DR

This video outlines various Boolean expression laws critical for simplification in Boolean algebra.

Transcript

hi everyone in this video I'm going to explain about the remaining lws of this buan expression laws are very important in the reduction of Boolean Expressions sometimes we may get big big expressions in the Boolean algebra that we need to reduce by using the loss okay aums already we have started in the previous video aums are nothing but postulate... Read More

Key Insights

• 😑 Understanding Boolean expression laws is essential for simplifying complex algebraic expressions in digital logic design.
• 😑 The redundant literal rule can drastically reduce expressions, showcasing how design efficiency can be attained through simplification.
• 😑 The Idempotent law reinforces the effect of repeated variables, allowing logical expressions to be streamlined without loss of information.
• 😑 Absorption law reveals how certain terms within an expression can be minimized by recognizing redundancy, which is a common technique in circuit design.
• 👻 The transposition theorem highlights the flexibility allowed in rearranging terms to achieve simplicity, improving clarity during logical evaluations.
• 😑 Utilizing truth tables alongside these laws can significantly enhance comprehension and verification of logical expressions.
• 🥺 Mastery of these laws leads to improved performance in designing efficient digital circuits, crucial for engineers in the field.

Questions & Answers

Q: What are Boolean expression laws, and why are they important?

Boolean expression laws are fundamental principles that serve as guidelines in reducing and simplifying complex Boolean algebra expressions. They help in achieving minimal representations of digital circuits, thus optimizing performance. Understanding these laws is essential for design engineers working with digital logic since they directly impact circuit efficiency and reliability.

Q: Can you explain the redundant literal rule with an example?

The redundant literal rule states that an expression like A + A'B can be simplified to A + B. For instance, if A = 1 and B = 0, A' becomes 0, making the equation simpler. Truth tables can also verify this, demonstrating that both expressions yield identical outputs for all combinations of A and B, making process efficiency clearer.

Q: What is the Idempotent law in Boolean algebra?

The Idempotent law states that for any variable A, the expression A AND A equals A (i.e., A·A = A), and A OR A also equals A (i.e., A + A = A). This law emphasizes that multiple instances of the same variable do not affect the outcome. It simplifies expressions significantly by eliminating redundancy.

Q: How does the absorption law work in Boolean algebra?

The absorption law suggests that A + AB simplifies to A. It illustrates how one term absorbs another, as the presence of A alone is sufficient for the expression. If we were to evaluate cases, whether B is 0 or 1, A continues to represent the expression effectively. This law is vital for minimizing logical expressions.

Q: What is the significance of the transposition theorem in simplifying Boolean expressions?

The transposition theorem is crucial as it establishes that AB + A'C simplifies to A + C (A' + B). This theorem helps in restructuring expressions to find simpler forms, which reduces complexity in design. It illustrates how variables can be manipulated to yield equivalent expressions, enhancing understanding of logic design processes.

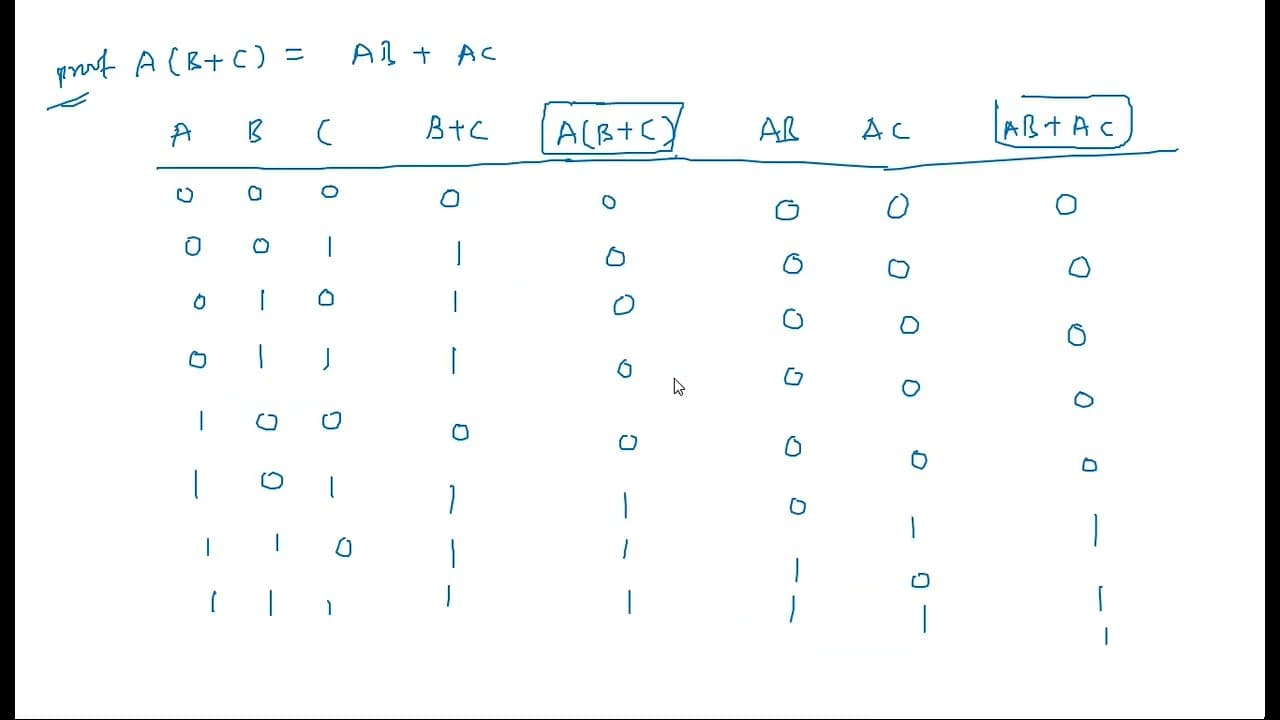

Q: Are truth tables necessary for understanding Boolean laws?

While truth tables are not strictly necessary, they are highly beneficial for visualizing and verifying the equivalences established by Boolean laws. By mapping out all possible variable combinations, truth tables provide a clear demonstration of how laws like redundancy and absorption operate, solidifying theoretical concepts with practical examples.

Summary & Key Takeaways

• The video explains the importance of Boolean expression laws in simplifying complex algebraic expressions using fundamental principles without needing proofs.

• It introduces the redundant literal rule and the Idempotent law, demonstrating their usage with specific examples and truth tables.

• Furthermore, it covers the absorption law and the transposition theorem, concluding with an overview of the eight key laws essential for Boolean algebra simplification.
