VHDL code for Priority Encoder | 4x2 | Part-2/2 | Digital Systems Design | Lec-66

TL;DR

This video explains the structural programming of a 422 priority encoder using VHDL.

Transcript

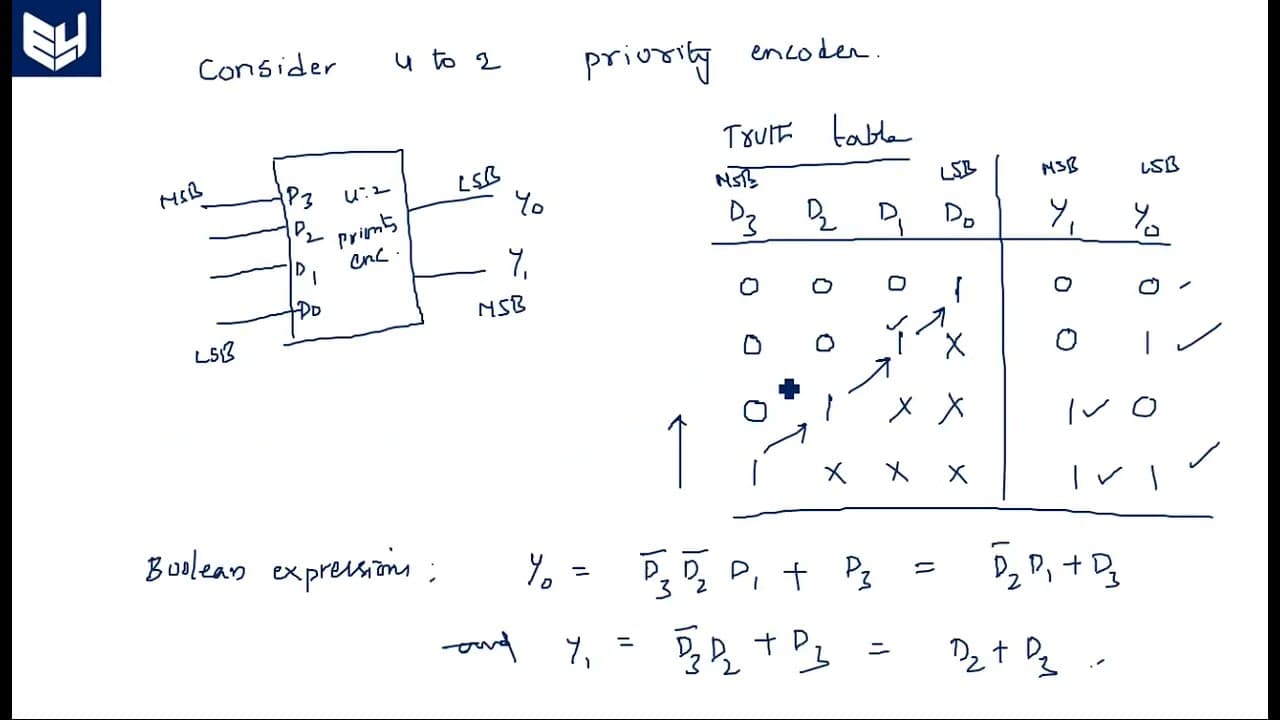

hi everyone in this video I'm going to explain about the structural programming for 422 priority encoder okay in the previous videos we have started this priority encoder discussion and we have seen what do you mean by priority encoder and how it works this is the logic diagram in terms of gates okay this is our main diagram where we need to focus ... Read More

Key Insights

• 🦻 The 422 priority encoder is crucial for translating multiple binary inputs into fewer outputs based on priority, aiding in efficient digital communication.
• 😄 Structural programming in VHDL allows for a modular approach where different components can be developed and tested separately, ensuring reliability and ease of debugging.
• 🔬 Logic gates, such as NOT, AND, and OR gates, are essential building blocks in designing digital systems, each serving specific functions necessary for executing Boolean logic.
• 🫦 Understanding the data types and vector notations in VHDL is essential for successful entity declarations, particularly for multi-bit signal handling in complex circuits.
• 🔬 Instantiation of logic gates requires careful mapping of inputs and boundaries in VHDL, where consistency in naming and data types is vital to avoid errors during simulation and synthesis.
• 👻 The structural VHDL approach minimizes errors by breaking down complex designs into simpler components, allowing for straightforward verification of each part before full assembly.
• 👨‍💻 Separate programs for individual components help to isolate functionalities, making it easier to troubleshoot specific sections of the VHDL code as needed.

Questions & Answers

Q: What is a 422 priority encoder, and how does it function?

A 422 priority encoder is a digital circuit that converts multiple input signals into a binary output signal based on the highest priority input. The encoder prioritizes inputs based on their order; if multiple signals are active simultaneously, the encoder outputs the binary code corresponding to the highest numbered input, ensuring reliable data conversion in digital systems.

Q: Why is the entity declaration important in a VHDL program?

The entity declaration defines the interface of the VHDL design unit, including its inputs and outputs. For a 422 priority encoder, clarity in the entity declaration—including data types and bit vectors—ensures that the program can interact correctly with other circuits or components, facilitating seamless integration and functionality in hardware designs.

Q: What role do the logic gates play in the structural VHDL code for the encoder?

The logic gates (NOT, AND, and OR gates) are fundamental components in the structural VHDL code for the 422 priority encoder. They implement the necessary Boolean logic to create the desired output from the prioritization of inputs, enabling accurate conversion and enabling the hardware to behave as expected based on the defined truth table.

Q: Can you explain the instantiation process for components in the VHDL code?

In VHDL, instantiation involves declaring components within the architecture section so the system recognizes them as parts of the design. For the 422 priority encoder, separate component declarations for each logic gate are necessary. These are then mapped to signals and inputs correctly to establish the intended behavior of the hardware based on the specified logic operations.

Summary & Key Takeaways

• The video introduces the concept of a 422 priority encoder and provides a visual logic diagram for understanding its structure.

• It discusses the structural VHDL code specific to the 422 priority encoder, detailing the entity and architecture components necessary for accurate coding.

• The presenter explains the instantiation of necessary logic gates and the importance of separate programs for each gate component within the same project framework.
