Moore to Mealy machine conversion | Example-2 | TOC | Lec-38 | Bhanu Priya

TL;DR

The content demonstrates how to convert a Moore machine into a Mealy machine using state diagrams and transition tables.

Transcript

hi students welcome back now let us see the another example of how to convert a marae to the Malay machine so here I had they are given one more a machine I want to convert this more a machine to Medivation how can you say this is a more a machine because here the output is depends upon only on the present state not on the present input because the... Read More

Key Insights

• 🐢 Moore machines produce consistent outputs based solely on current states, making them predictable but sometimes slower to respond.
• 🎰 Transition diagrams are crucial for visualizing state changes and outputs when converting between machine types.
• 👶 The conversion process emphasizes creating new outputs in Mealy machines based on both state and inputs, enhancing responsiveness.
• 🎰 Each state in a Moore machine retains an explicit output, while Mealy outputs can vary with each input interaction.
• 👷 Constructing state transition tables is vital for both Moore and Mealy machines, summarizing the behaviors of each state.
• 🎰 The ability to convert between Moore and Mealy provides flexibility in designing state machines for specific applications.
• 🎰 Understanding the underlying principles of state machines is fundamental to grasping more complex systems in computing and engineering.

Questions & Answers

Q: What defines a Moore machine in this context?

A Moore machine is defined by its output, which solely depends on the current state and not on the inputs. Therefore, the output remains constant as long as the machine is in the same state, regardless of any input changes that occur during that time.

Q: How do you create a state transition diagram for a Moore machine?

To create a state transition diagram for a Moore machine, first identify the states and their transitions based on inputs. Each state is represented by a node, with directed edges indicating transitions to other states depending on whether the input is '0' or '1', including specifying the output associated with each state.

Q: What are the main differences between Moore and Mealy machines?

The primary difference lies in output generation; in Moore machines, outputs are determined solely by the state, while in Mealy machines, outputs can vary with inputs. This often leads to Mealy machines producing outputs faster as they can respond to inputs directly without waiting for state transitions.

Q: How do input changes affect the outputs of a Moore machine?

In a Moore machine, input changes do not affect the output immediately. The output is linked to the current state, meaning the output will only change when transitioning to a different state defined by the transition rules, irrespective of the current inputs.

Q: Can you describe the process to convert a Moore machine to a Mealy machine?

To convert a Moore machine to a Mealy machine, first establish the state transition diagram of the Moore machine. Then, create a new transition diagram where the outputs depend not just on the state but also the input, thus reflecting the immediate response to inputs during transitions.

Q: What role does the initial state play in the conversion process?

The initial state acts as a starting point for the conversion process. It sets the conditions for the first transition and establishes the outputs that will follow based on subsequent inputs, guiding the construction of the transition tables for both Moore and Mealy machines.

Summary & Key Takeaways

• The content explains the concept of Moore machines, emphasizing that the output is determined solely by the current state rather than the current inputs, which are documented in a state transition table.

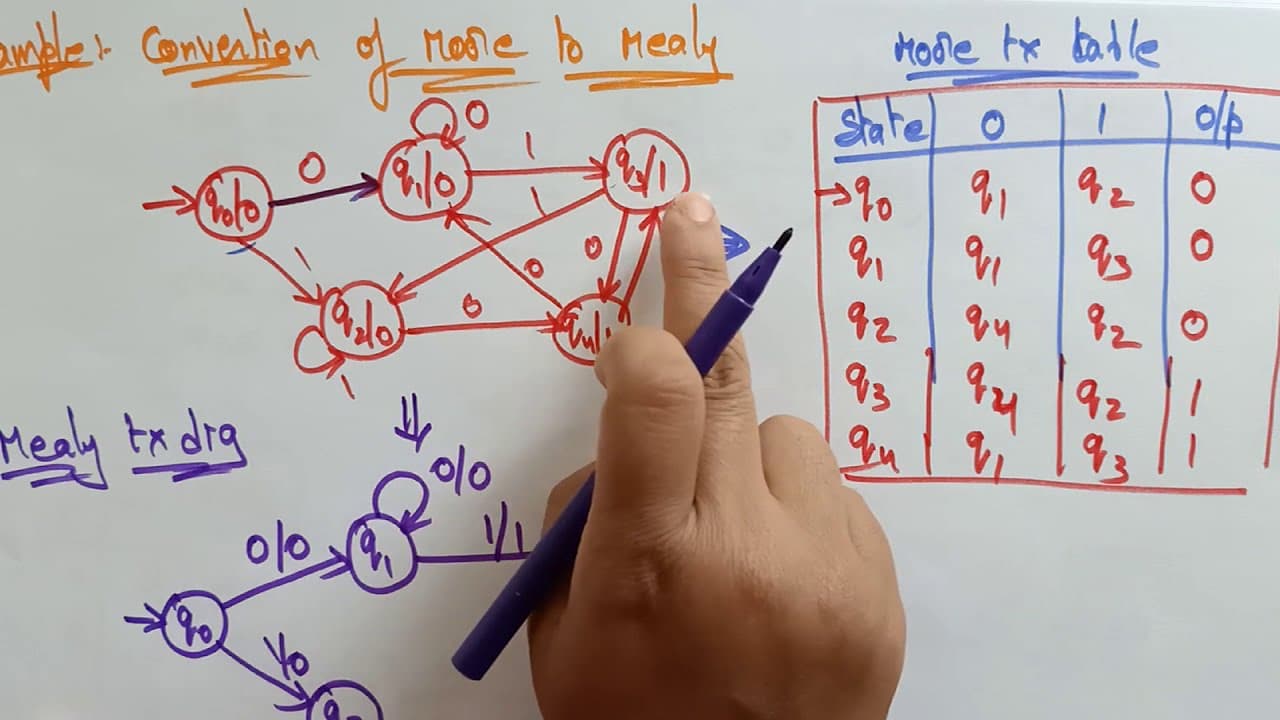

• It provides a step-by-step visual representation of the state transition diagram, detailing how each state interacts with different inputs and what outputs are generated as a result.

• The process culminates in a complete transition table for the corresponding Mealy machine, highlighting the differences in output dependencies between Moore and Mealy machines.
