DC Generator | Characteristics | DC machines | Lec-46

TL;DR

This session explains the speed equation and characteristics of DC generators, focusing on various curves and factors.

Transcript

hello everyone in this session we will continue the next topic that is the speed equation so we already discussed about the emf equation emf generated that is equal p phi n z by 60 a p phi inject by 68 so from this we can write the speed formula the speed equal speed equal e 60 a by p phi z so if you observe here here the 60 is the constant turn a ... Read More

Key Insights

• 🐎 The speed of a DC machine is directly proportional to the emf generated and inversely proportional to the magnetic flux.
• 📈 Characteristics of DC generators, such as OCC and load saturation, are essential for understanding performance metrics and efficiencies.
• ⚡ Load saturation characteristics demonstrate the threshold at which adding more field current does not significantly increase output voltage, a critical design consideration.
• 🛀 The concept of residual magnetism is significant in OCC, as it shows that even without an external current, some emf can still be generated.
• ✊ Controlling armature current, speed, and power factor is crucial in analyzing generator characteristics and their operational efficiencies.
• 🧑‍🏭 The practical curves of generator characteristics may differ from theoretical curves due to factors like losses and imperfections in the machine design.
• 💄 DC generators exhibit different operating behaviors under varying loads, making characteristic curves essential for effective engineering applications.

Questions & Answers

Q: What is the significance of the speed equation in DC machines?

The speed equation is fundamental for understanding how the speed of DC machines is influenced by the generated emf and magnetic flux. It indicates that speed is directly proportional to emf and inversely proportional to flux. This relationship allows engineers to manipulate the factors affecting speed, providing essential control in applications involving DC motors and generators.

Q: Can you explain what open circuit characteristics (OCC) are?

Open circuit characteristics (OCC) refer to the relationship between the generated emf and the field current in a DC machine when the output is not connected to a load. The OCC graphically shows how increased field current leads to varying emf values until it reaches a saturation point. This characteristic is crucial for determining the machine's capability under no-load conditions and understanding residual magnetism.

Q: What are load saturation characteristics in DC generators?

Load saturation characteristics illustrate how the load voltage interacts with field current when certain parameters, such as armature current and speed, are held constant. This relationship shows how, after a particular point, increasing the field current does not significantly increase the output voltage, indicating saturation. This concept is vital for understanding how generators operate under varying load conditions.

Q: Why is maintaining constant parameters crucial during experiments with DC generators?

Maintaining constant parameters like armature current, voltage, and speed ensures that the resulting characteristics are accurate and reliable. It allows for a clear understanding of the relationships between different factors affecting the performance of DC generators. These controlled conditions lead to more precise analysis and better insights into machine behavior and efficiency.

Summary & Key Takeaways

• The session revisits the speed equation of DC machines, emphasizing the relationship between speed, electromotive force (emf), and flux. It highlights how speed can be controlled based on these variables.

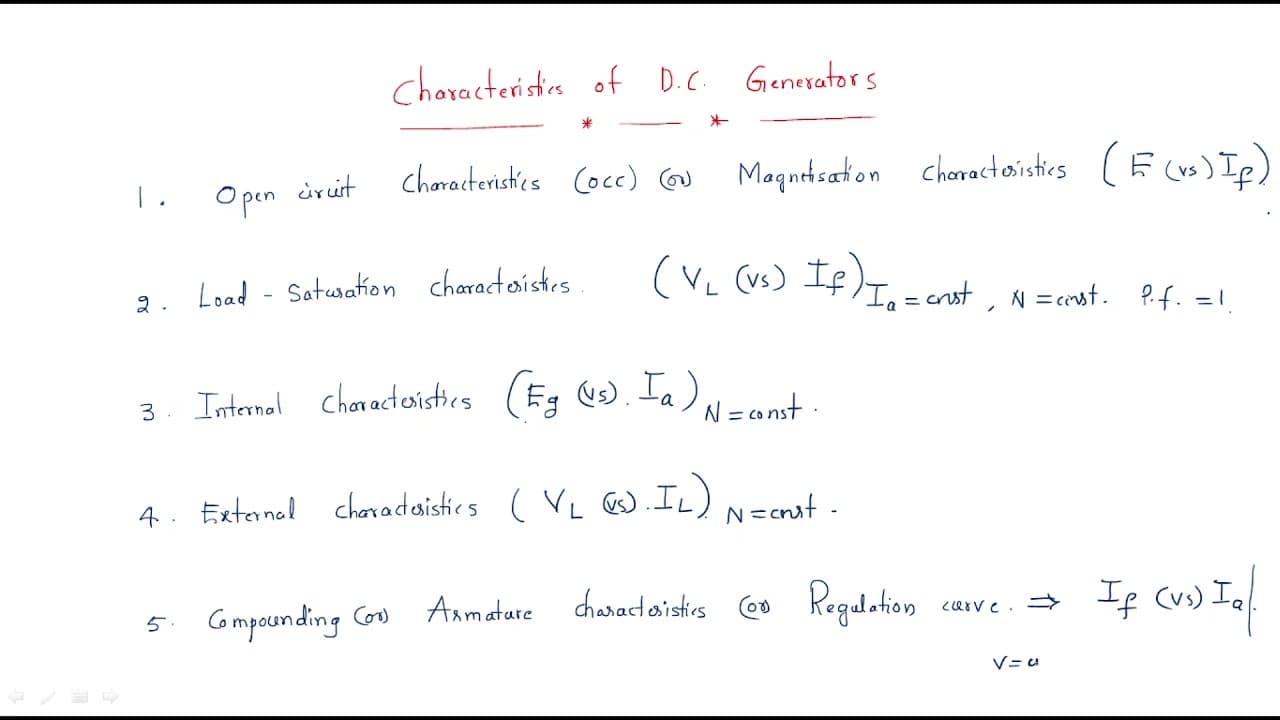

• The discussion transitions to the characteristics of DC generators, specifically open circuit characteristics (OCC) and load saturation characteristics, explaining how they relate to field current and generated emf.

• Key points include the importance of maintaining specific parameters like speed and armature current constant during analysis to understand the various graphical representations and characteristics of the generator.
