Problem 3 : LC Oscillator | Oscillators | Electronic Devices and Circuits 2 in EXTC Engineering

TL;DR

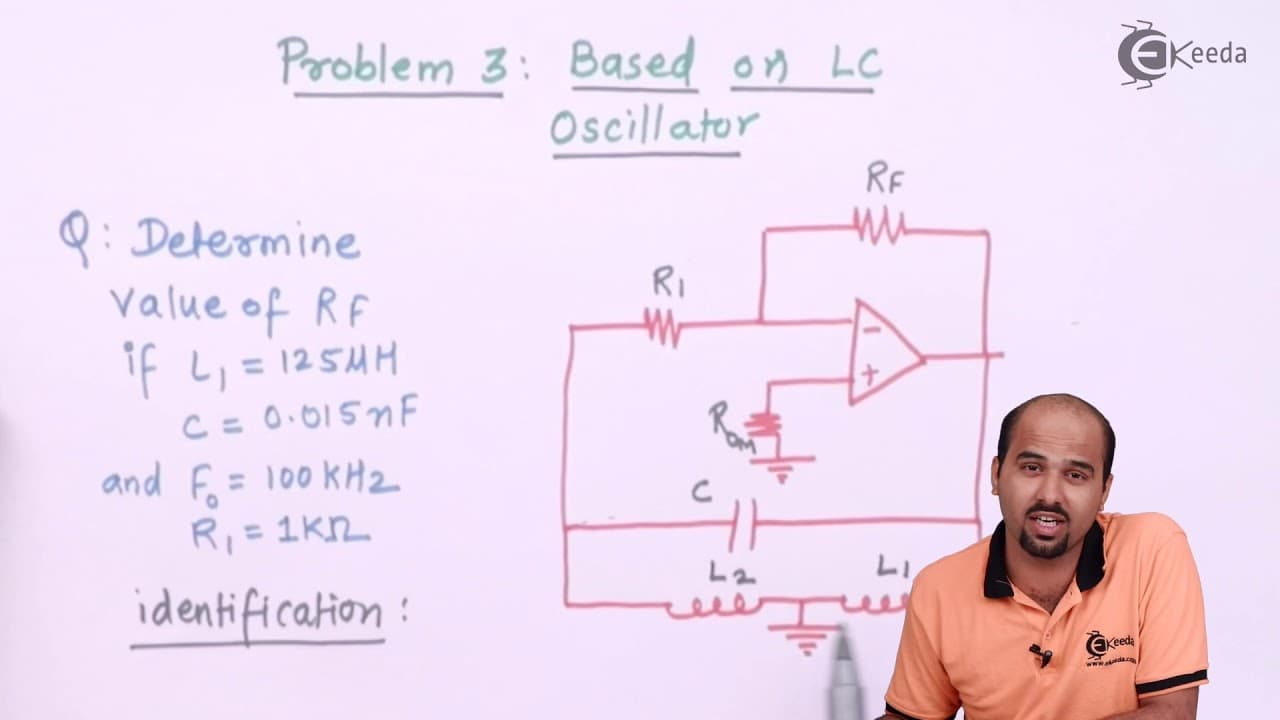

This video discusses LC oscillators and provides a numerical example of a Hartley oscillator, explaining how to determine the value of RF.

Transcript

click the bell icon to get latest videos from Ekeeda Hi guys up till now we have studied so many oscillators and the low frequency oscillator numericals now this is the time to learn the numerical is based on LC oscillator that is high frequency oscillators now here here in this particular numerical we will learn the type of LC oscillator and let's... Read More

Key Insights

• ✋ LC oscillators, such as Hartley oscillators, are used to generate high-frequency signals.
• 🖖 The type of LC oscillator can be determined by analyzing the feedback components in the circuit.
• 🤨 The frequency of oscillation in a Hartley oscillator can be calculated using the formula 1 / (2 * pi * sqrt(C * (L1 + L2))).
• ❓ The value of L2 in a Hartley oscillator can be found by rearranging the frequency formula and solving for L2.
• 🗂️ The gain of the amplifier in a Hartley oscillator is determined by dividing RF by R1.
• ⚾ The value of RF can be calculated based on the desired gain and the known value of R1.
• 🪡 In practical scenarios, the calculated value of RF may not be readily available and would need to be approximated.

Questions & Answers

Q: What is the purpose of the given circuit in the numerical example?

The circuit is a Hartley oscillator, a type of LC oscillator used to generate high-frequency signals.

Q: How is the type of LC oscillator determined in the numerical example?

The type of LC oscillator (Hartley in this case) is determined by analyzing the feedback components in the circuit.

Q: How is the value of L2 found in the numerical example?

The value of L2 is found by using the formula for the frequency of oscillation and rearranging it to solve for L2.

Q: How is the value of RF calculated in the numerical example?

The gain of the amplifier in the oscillator circuit is calculated by dividing RF by R1, and the value of RF is then determined based on a given value for the gain.

Summary & Key Takeaways

• The video introduces LC oscillators and specifically focuses on Hartley oscillators.

• A numerical example is provided, where the goal is to find the value of RF in a Hartley oscillator circuit.

• The formula for the frequency of oscillation is used to find the value of L2, and then the gain is calculated to determine the value of RF.
