Work Tool Thermocouple - Temperatures in Metal Cutting and Cutting Fluids

TL;DR

Learn how to measure cutting temperature using a work tool thermocouple.

Transcript

restaurants my name is santosh kumar and i am the course instructor for machining sciences and tool design we are discussing module number two that is temperatures in metal cutting and cutting fluids so in this video we will discuss about how to do the measurement of the cutting temperature using the work tool thermocouple as you all know the therm... Read More

Key Insights

• 💦 A work tool thermocouple is used to measure the temperature in metal cutting by generating an emf based on the temperature difference at the junction.
• ❓ The emf reading is converted into temperature values using a calibration curve.
• ❓ Insulation of the thermocouple circuit and using the same circuit during calibration are crucial for accurate temperature measurement.
• 🥺 Calibration is done by dipping the tool tip into a molten lead bath at different temperatures to create a calibration curve.

Questions & Answers

Q: What is a work tool thermocouple?

A work tool thermocouple is a junction of two dissimilar metals used to measure the temperature in metal cutting. It generates an emf based on the temperature difference at the junction.

Q: How is the temperature measured using the work tool thermocouple?

The emf generated at the junction of the workpiece and the tool is measured using a voltmeter. This emf reading is then converted into a temperature value using a calibration curve.

Q: Why is insulation of the thermocouple circuit important?

Insulating the thermocouple circuit from the machine ensures accurate temperature measurement. Using the same circuit during calibration helps in correlating the emf readings with known temperature values.

Q: How is the thermocouple calibrated?

The thermocouple is calibrated by dipping the tool tip, with a chip attached, into a molten lead bath of varying temperatures. The emf readings at different temperatures are used to create a calibration curve.

Summary & Key Takeaways

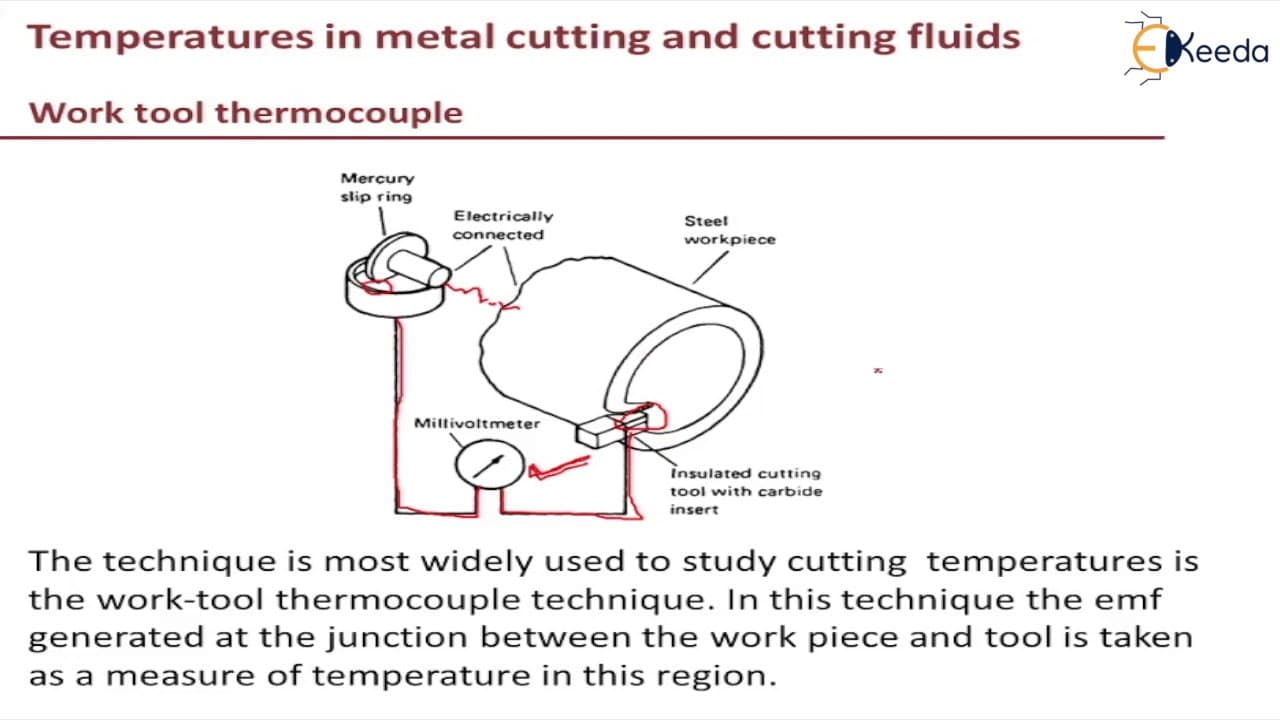

• The video discusses the technique of measuring cutting temperature using a work tool thermocouple, which is a junction of two dissimilar metals.

• The temperature difference at the junction generates an electromotive force (emf), which is measured using a voltmeter as an indication of temperature.

• To calibrate the thermocouple, a known temperature is used to establish a calibration curve for converting emf readings into temperature values.
