Short pitch factor | Advantages | Dis-Advantages | Synchronous Machines | Lec-07

TL;DR

Short pitch winding reduces harmonics and improves efficiency.

Transcript

hello everyone in the last session we discussed about the the short pitchfinding so this is a short bit finding in this we already discussed about the pitch Factor and coil span and how to what is the short pitch angle and what is the coil span for the short which angle these points are discussed let's continue the previous session so generally in ... Read More

Key Insights

• 🍰 Short pitch winding can notably improve the sinusoidal quality of generated EMF by eliminating dominant harmonics like the 5th and 7th.
• 👖 Using a coil span of 150 degrees is the industry standard, optimizing harmonic reduction while maintaining fundamental output.
• ⚡ The KP value signifies the efficiency of short pitch windings, with higher values indicating better fundamental voltage retention.
• 🌸 The reduction of iron losses due to a more efficient EMF generation can contribute to lower operational costs and improved machine longevity.
• 🥺 Short pitch winding can lead to significant copper savings, making it a cost-effective choice in power generation.
• ⚡ Voltage regulation is enhanced with short pitch winding, crucial for applications requiring stable voltage outputs.
• 🍰 A careful balance is necessary when implementing short pitch winding, as it can reduce the fundamental voltage while providing other benefits.

Questions & Answers

Q: What is the short pitch angle and its significance?

The short pitch angle is defined as 30 degrees, which corresponds to a coil span of 150 degrees for most machines. This configuration helps eliminate dominant harmonics, improving the sinusoidal nature of the generated EMF, thereby enhancing overall machine efficiency.

Q: How does short pitch winding affect harmonic reduction?

Short pitch winding effectively reduces dominant harmonics, particularly the 5th and 7th harmonics. This reduction results in a more sinusoidal waveform, minimizing the distortion in the generated EMF, which reduces iron losses and enhances the efficiency of the machine.

Q: What is the impact of coil span on output voltage?

Depending on the coil span, the fundamental voltage can vary. For example, when using a coil span of 150 degrees, about 96.5% of the fundamental output is achieved, whereas a span of 100 degrees yields around 86.6%. This reduction can affect the machine's performance under certain conditions.

Q: What are the key advantages of using short pitch winding?

The primary advantages include the elimination of dominant harmonics, increased sinusoidal nature of the EMF produced, reduced iron losses, copper savings, decreased net coil length, and improved voltage regulation. These factors collectively enhance operational efficiency and machine performance.

Q: What is the disadvantage of short pitch winding?

A notable disadvantage is the slight reduction in fundamental voltage. While short pitch winding eliminates harmonics, it also leads to a decrease in the fundamental component of the output voltage, which may affect the machine's overall performance when power levels are critical.

Q: How do you calculate the coil span needed to eliminate a specific harmonic?

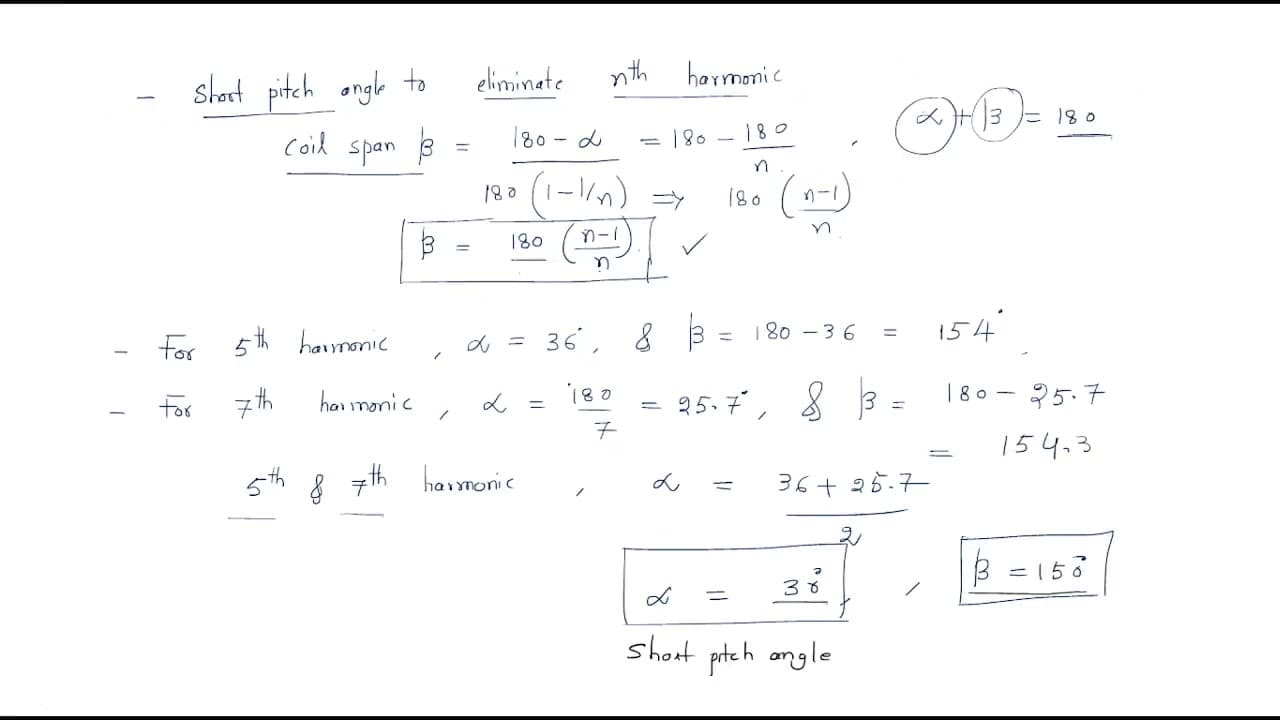

To eliminate a specific harmonic, the formula is beta = (n - 1)/n * pole pitch. For example, to eliminate the 5th harmonic, you would set n to 5, leading to a calculated coil span that helps suppress that harmonic effectively.

Summary & Key Takeaways

• The discussion centers on short pitch winding, defining the short pitch angle as 30 degrees with a typical coil span of 150 degrees for most machines, which helps eliminate specific harmonics.

• The key benefit of short pitch winding is the reduction of dominant harmonics, leading to a more sinusoidal generated EMF, which in turn decreases iron losses and increases efficiency.

• Despite its advantages, short pitch winding may lead to a small reduction in fundamental voltage, necessitating a balance between harmonic reduction and output voltage levels.
