High pass RC circuit | Square wave input | Pulse Digital Circuits | Lec-13

TL;DR

This video explains high pass RC circuit behavior with square wave input and analyzes output voltage equations.

Transcript

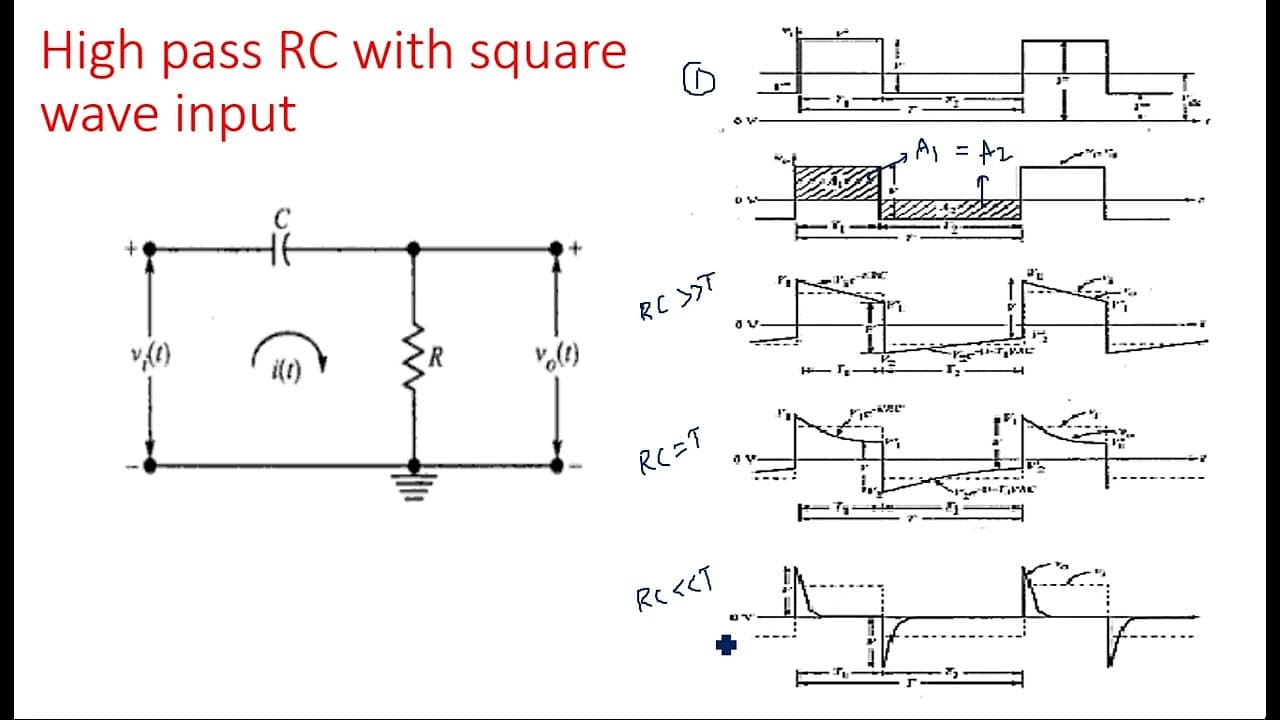

hi everyone in this video I am going to explain about the behavior of high pass RC circuit when a square wave is applied so here I am just explaining one after another like first I have taken the step input later we have seen the pulse input now the still more extension in the input voltage like step two pulse pulse to now Square so what is the sph... Read More

Key Insights

• 🧭 High pass RC circuits respond differently to square wave inputs compared to low pass circuits, showing unique voltage phase relationships.
• ❎ The area under the square wave input, both positive and negative, is critical in understanding the average output when integrating over one period.
• 🔠 Three specific conditions based on the ratio of RC to T (input signal period) affect the overall voltage response of the circuit in both rapid and slow input changes.
• ⚡ The output voltage can be derived mathematically, employing both Laplace transform techniques and differential equations to express voltage over time.
• 📡 The circuit behavior is fundamentally contingent upon the symmetry of the input waveform, influencing how the output waveform correlates to the original signal.
• ✋ Calculation of output parameters like percentage tilt provides insight into the performance degradation or fidelity of signal reproduction in high pass configurations.
• ⌛ Capacitor characteristics and their charge/discharge times significantly dictate the output waveform shape, crucial for any application involving signal processing or filtering.

Questions & Answers

Q: What is the significance of using a square wave input in the analysis of high pass RC circuits?

A square wave input is significant because it provides a clear and distinct transition between high and low states. This helps demonstrate how the RC circuit responds to rapid changes in voltage and its time-dependent behavior in charging and discharging phases.

Q: How does the time constant RC influence the output voltage during input transitions?

The time constant RC determines how quickly the capacitor charges or discharges in response to changes in input voltage. A longer time constant results in slower changes, which can lead to distorted output, while a shorter time constant allows for quicker response and a more faithful representation of the input waveform.

Q: What role does integrating play in calculating the output voltage for high pass RC circuits?

Integration is used to derive the output voltage from the input current over a specific time period. By integrating the current, one can account for the area under the curve, which translates into voltage values and helps characterize the circuit's behavior in response to input signals.

Q: What is percentage tilt in the context of high pass RC circuits?

Percentage tilt refers to the deviation of the output signal from the input signal in a high pass RC circuit. It quantifies how much the output waveform shifts or alters compared to the input due to the circuit’s filtering characteristics. This measure is crucial for understanding the circuit's performance and efficiency.

Summary & Key Takeaways

• The video outlines the response of a high pass RC circuit when a square wave input is applied, highlighting the implications of varying input periods.

• The analysis includes different conditions for the RC time constant, affecting how the capacitor charges and discharges during each input cycle.

• The conclusion involves detailed mathematical expressions for output voltage, focusing on integrating and differentiating across various time intervals to illustrate circuit behavior.
