Schering Bridge | Unknown Capacitance | Electrical Instruments ( EIM ) | Lec - 51

TL;DR

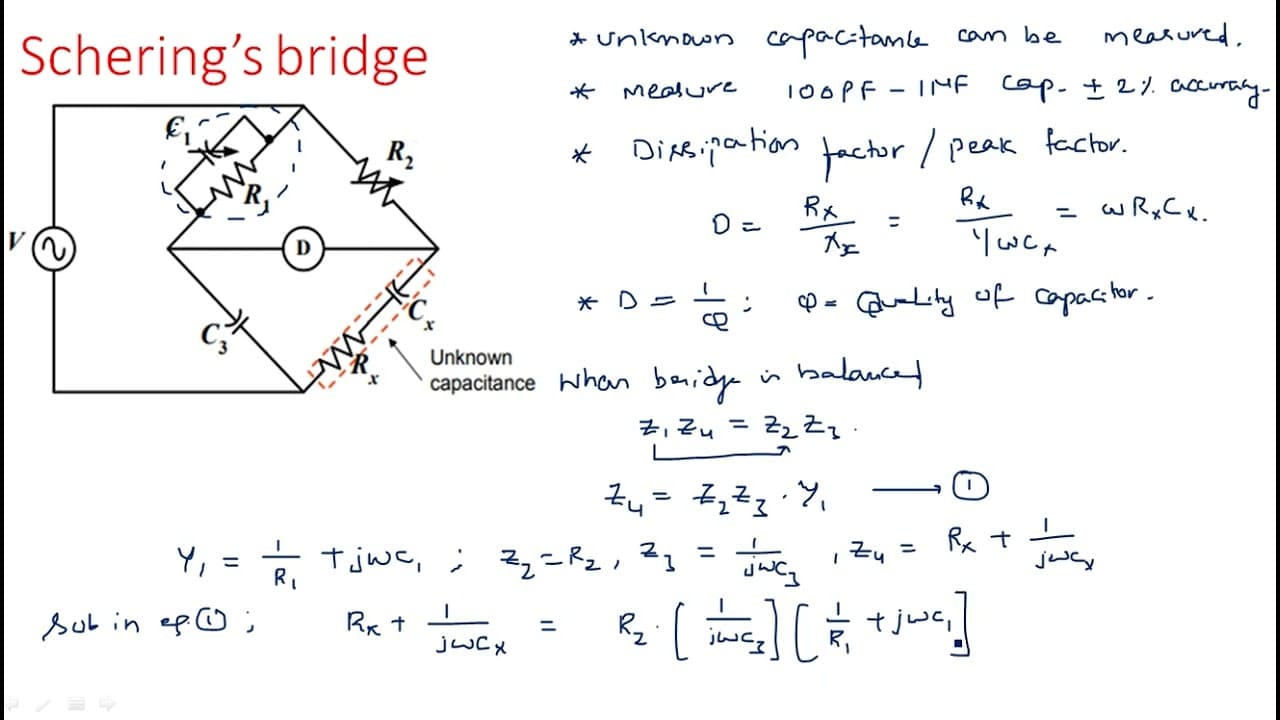

This video explains the shearing bridge for measuring unknown capacitance and calculating related parameters.

Transcript

hi everyone in this video i am going to explain about the sharing bridge and how to calculate the unknown components like cx and rxm so in the previous videos i have explained maxwell's bridge and has bridge and their problems also in the maxwell's fridge haste bridge these two are used to measure the unknown inductance unknown inductance in series... Read More

Key Insights

• 🌉 The shearing bridge accurately measures small capacitance values, essential for many electronic applications.
• 🧑‍🏭 The dissipation factor is reciprocal to the quality factor, emphasizing the capacitor's efficiency in a circuit.
• 🌉 Accurate calculations using the shearing bridge rely on balancing equations with known and unknown parameters.
• 🤝 The precision of the shearing bridge makes it indispensable for electrical engineers dealing with micro-capacitors.
• 👻 Understanding the circuit principles behind the shearing bridge allows for better practical applications in capacitance measurements.
• 🌉 The methodology explained mirrors practices in other measurement techniques, ensuring consistency across different types of bridge circuits.
• 😀 Knowledge of the theoretical underpinnings enhances mastery of practical measurement challenges faced in electronic diagnostics.

Questions & Answers

Q: What is the main purpose of a shearing bridge?

A shearing bridge is designed to measure unknown capacitance values by comparing them with a known capacitance, typically offering measurements in the range of 100 picofarads to one microfarad. Its precision of plus or minus two percent makes it a valuable tool in electronics for accurate capacitance assessment.

Q: How does the shearing bridge compare to other types of bridges like Maxwell's and Hayes'?

Similar to Maxwell's and Hayes' bridges, the shearing bridge allows for the measurement of unknown values. However, while Maxwell's and Hayes' primarily focus on inductance measurements, the shearing bridge targets capacitance, simplifying the process of handling small capacitance values.

Q: What is the significance of the dissipation factor in the context of the shearing bridge?

The dissipation factor, also known as the peak factor, is crucial for understanding the quality of the capacitance being measured. It is calculated as the ratio of unknown resistance to reactance, providing insight into energy losses in the capacitor and reflecting its efficiency in an electrical circuit.

Q: Can you elaborate on the method of balancing the shearing bridge for accurate measurements?

Balancing the shearing bridge involves ensuring the relationship between known and unknown components satisfies circuit equations. By manipulating the known values until the bridge is balanced, one can use the resulting equations to deduce unknown resistance and capacitance values accurately through both real and imaginary part adjustments.

Summary & Key Takeaways

• The shearing bridge primarily measures unknown capacitance values ranging from 100 picofarads to one microfarad with a precision of plus or minus two percent.

• It enables the calculation of key parameters, including the quality factor and dissipation factor, similar to other bridges like Maxwell's and Hayes'.

• The video also discusses methods for balancing the bridge and deducing unknown resistance and capacitance values through circuit analysis.
