Current sources and Sinks | Cascode Current mirror | Part-3/3 | VLSI | Lec-73

TL;DR

This video explains various configurations of cascode current mirror circuits to optimize output impedance and voltage minimization.

Transcript

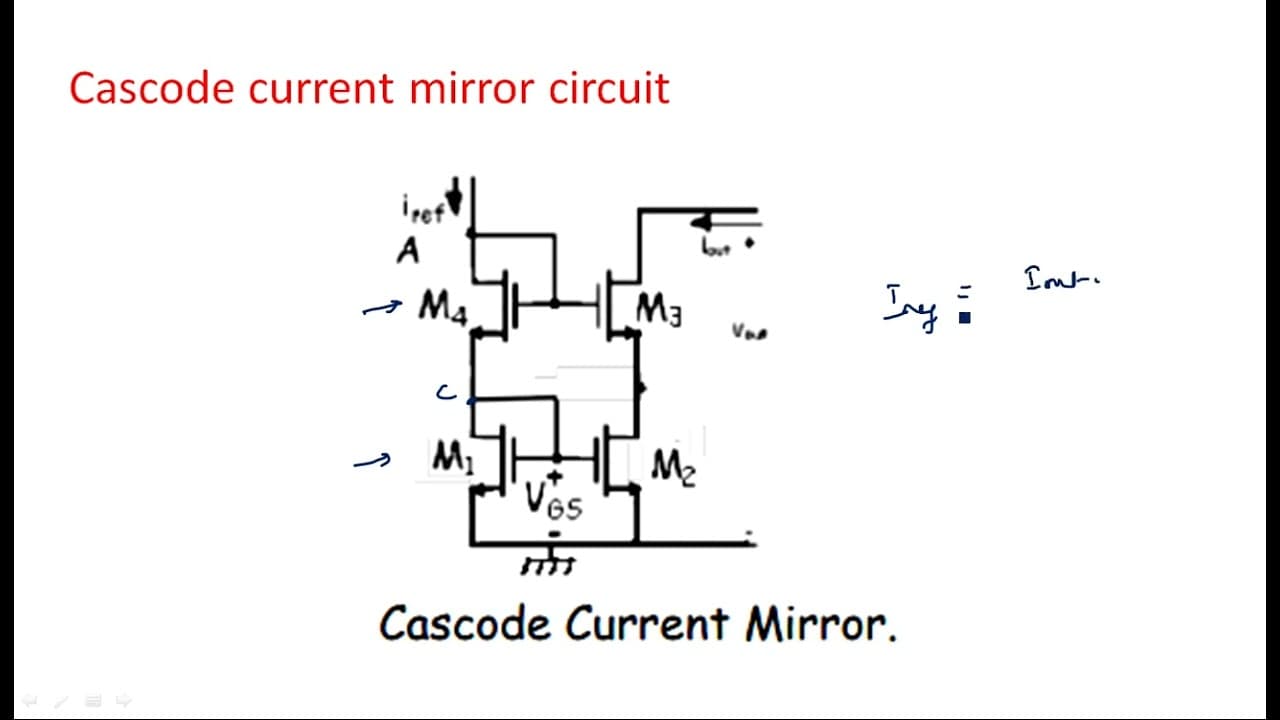

hi everyone in this video I am going to explain about cascode current mirror circuit regulated cascode current mirror circuit and the configuration used to get a minimum vmin and improve our router these three configurations we are going to see in this video so this is the configuration which is just a modified version of the Wilson modified Wilson... Read More

Key Insights

• ⚡ The cascode current mirror circuit is a refined design aimed at enhancing both output impedance and voltage minimization, integral for improving overall circuit performance.
• ✋ Proper transistor biasing and matching are essential for achieving high output impedance and ensuring current is mirrored accurately across transistors.
• ⚡ The introduction of additional transistors in the regulated cascode current mirror circuit enables further improvements in current characteristics and minimal operating voltages.
• 🥳 Understanding the relationship between W/L ratios and circuit performance facilitates better design choices for high-efficiency current mirror circuits.
• 🥺 Detailed configurations illustrate how alternate arrangements lead to significant performance enhancements in current mirror designs.
• 🚚 The modifications in current mirror circuits are critical for applications that require precise and reliable current delivery without significant fluctuations in output.
• 🤩 Achieving a balance between Vmin and output impedance is key for designing robust current sources in integrated circuits.

Questions & Answers

Q: What is the primary focus of the video regarding current mirror circuits?

The video primarily focuses on explaining the different configurations of cascode current mirror circuits, specifically the modified Wilson current mirror circuit and the regulated cascode current mirror circuit, to optimize output impedance and voltage characteristics for improved performance.

Q: How does the cascode configuration enhance the performance of the current mirror?

The cascode configuration enhances performance by replicating the same set of transistors in a different arrangement to improve output impedance and ensure that Vds remains constant across transistors. This results in better current mirroring and minimizes variations in output voltage.

Q: What issue does the modified Wilson current mirror circuit address?

The modified Wilson current mirror circuit addresses the issue of unequal voltage drops across transistors, which can arise from different resistances. By implementing additional transistors, the circuit improves the mirroring accuracy and output impedance, contributing to better performance.

Q: What role does the W/L ratio play in the cascode current mirror circuit?

The W/L ratio is crucial as it influences the transistors' characteristics in the cascode configuration. Maintaining equal W/L ratios across transistors helps ensure proper voltage levels, leading to low minimum voltage (Vmin) and enhancing current mirroring capabilities.

Q: Can you explain the significance of Vmin in the current mirror circuit?

Vmin, or the minimum voltage required for proper operation of the current mirror circuit, is significant as it impacts output range and performance. Lowering Vmin through effective configuration allows the circuit to operate efficiently while maintaining stability and accuracy in current mirroring.

Q: What configurations are suggested to improve output impedance?

The video suggests several configurations, including the regulated cascode current mirror circuit, which uses a combination of resistors and transistors to achieve high output impedance while separating transistor inputs to optimize circuit performance and stability.

Summary & Key Takeaways

• The video details the modifications made to the Wilson current mirror circuit by introducing additional transistors to create a regulated cascode current mirror circuit, aiming to improve output characteristics.

• It elaborates on how different configurations help achieve a balance between minimum voltage (Vmin) and output impedance (Rout), highlighting the importance of transistor matching and biasing.

• Various diagrams and explanations illustrate how adjusting transistor connections and configurations can enhance performance, ensuring better current mirroring capabilities in the proposed designs.
